EVAL-AD5413SDZ
Evaluating the AD5413 Single Channel, 16-Bit Current or Voltage Output DAC with HART Connectivity
Top
Overview
Features and Benefits
- Fully featured evaluation board for the AD5413
- On board 2.5 V ADR4525 reference
- ACE software for control
Product Details
This user guide describes the EVAL-AD5413SDZ for the AD5413 single-channel, 14-bit voltage and 14-bit current output digital-to-analog converter (DAC).

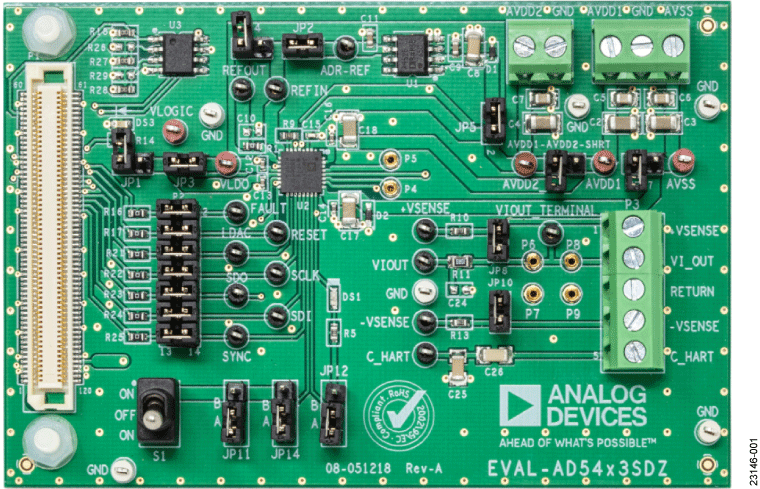

The EVAL-AD5413SDZ (see Figure 1) requires the EVAL-SDP-CS1Z system demonstration platform (SDP-S) board. The EVAL-AD5413SDZ interfaces to the USB port of the PC via the SDP-S board. The Analysis, Control, Evaluation (ACE) software allows simplified programming of the AD5413, and is available to use with the EVAL-AD5413SDZ.
For full details on the AD5413, see the AD5413 data sheet. Consult the data sheet in conjunction with this user guide when using the EVAL-AD5413SDZ.
Markets and Technologies
Applicable Parts
Package Contents
EVAL-AD5413SDZGetting Started
EQUIPMENT NEEDED
- SDP-S controller board
- Bench top power supply and connector cables
- PC or laptop
DOCUMENTS NEEDED
- AD5413 data sheet
- ACE user manual
SOFTWARE NEEDED
- ACE software
Documentation & Resources
-
UG-1757: EVAL-AD5413SDZ Evaluation Board User Guide6/17/2020PDF1 M
