Demonstration circuit 972A is a high efficiency synchronous step-down DC/DC converter featuring the LTC3822EDD controller and dual N-Channel MOSFETs. The demo board is capable of providing 1.8V/8A from a 2.75V to 4.5V input.

Applicable Parts

Documentation & Resources

  • View All (3)

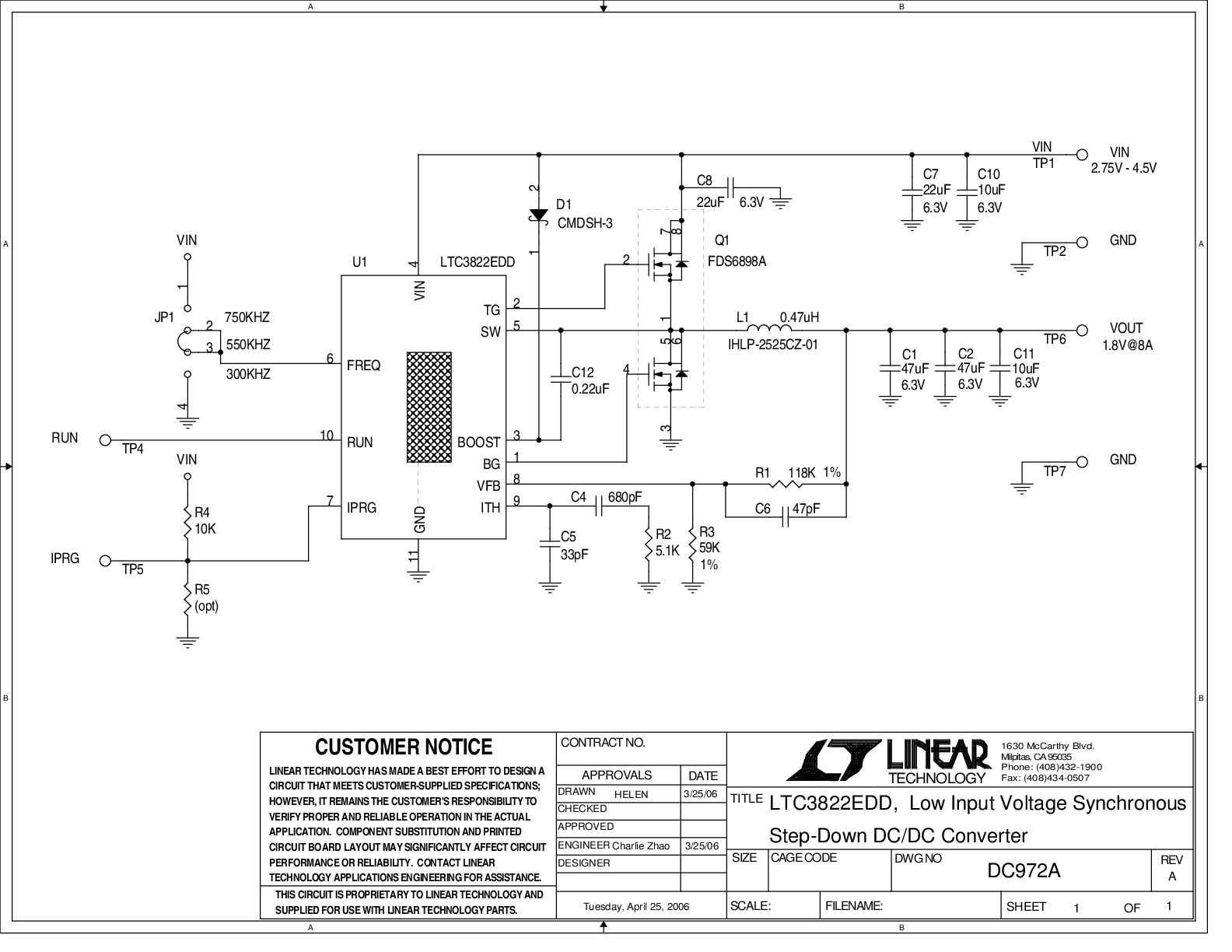

  • Demo Board Schematic (1)
