DC894A-A
LT3825EFE Demo Board I Synchronous Flyback Converter, VIN = 36V to 72V, VOUT = 3.3V @ 12A
Top
Overview
Product Details
Demonstration circuit 894A-A is a 36V-72VIN, synchronous flyback converter featuring the LT3825. This circuit was designed specifically to attain a high current, low ripple, synchronously rectified flyback to efficiently power 3.3V loads at up to 12A from a typical telecom input voltage range. This circuit features synchronous rectifier drive outputs, output voltage regulation without the need of an optocoupler, a self-starting architecture and input undervoltage lockout.
Applicable Parts
Documentation & Resources
-

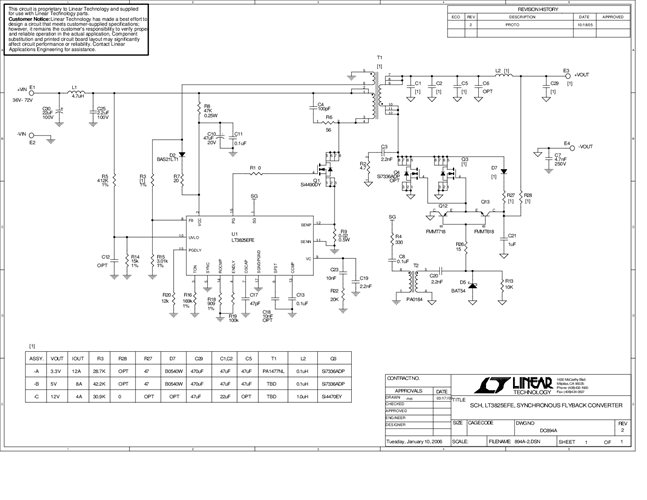

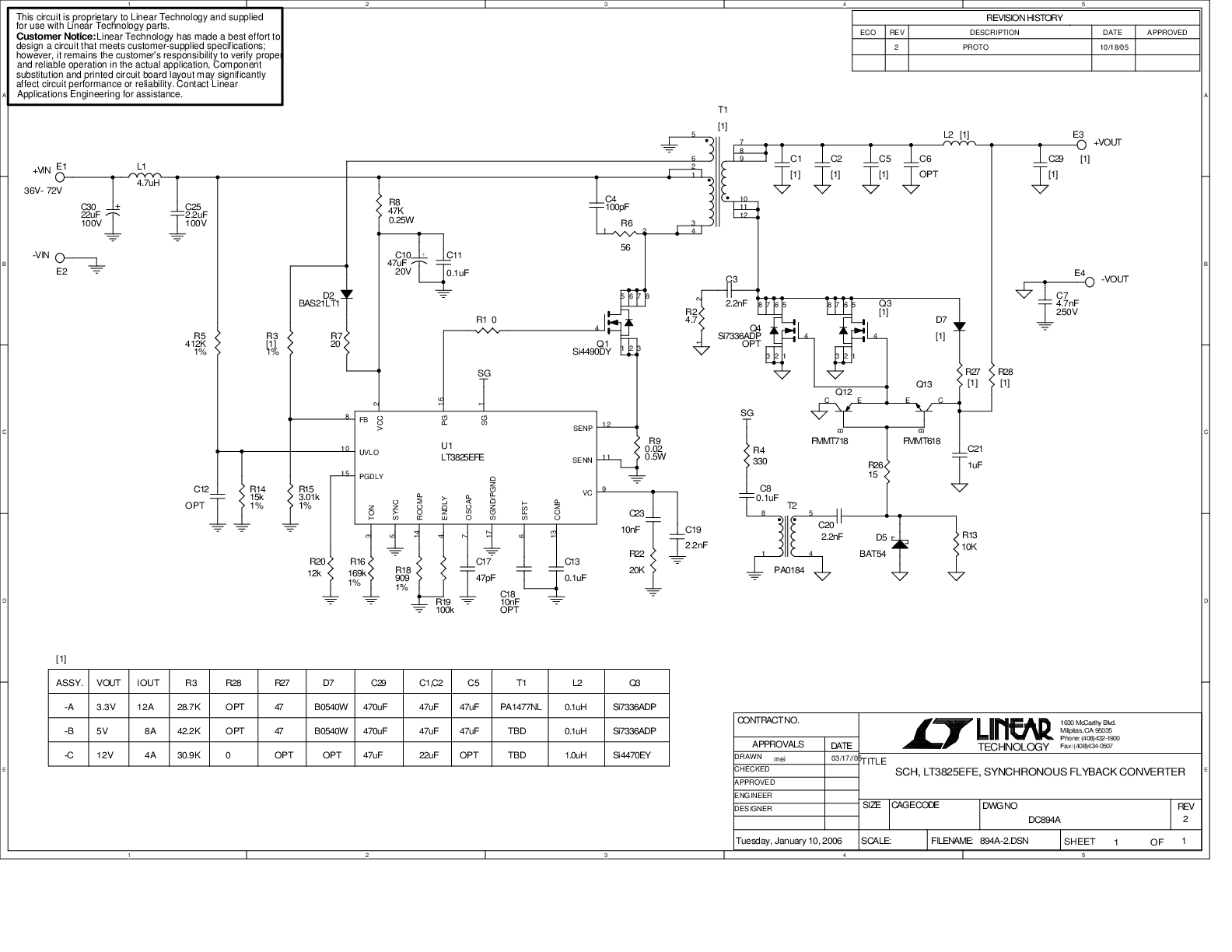

DC894A-A - Schematic10/15/2009PDF34K
-
DC894A-A - Demo Manual10/15/2009PDF1M
-
DC894A-A - Design Files10/15/2009ZIP1M
