DC819A
LT1990CS8/LT1991CMS/LT1995CMS | Configurable Gain Amplifiers, V+ = +2.5V to +15V, V– = –2.5V to –15V
Top
Overview
Product Details
DC819A Demo Board for:
LT1990 ±250V Input Range G = 1, 10, Micropower, Difference Amplifier
LT1995 30MHz, 1000V/µs Gain Selectable Amplifier
LT1991 Precision, 100µA Gain Selectable Amplifier
Markets and Technologies
Applicable Parts
Documentation & Resources
-

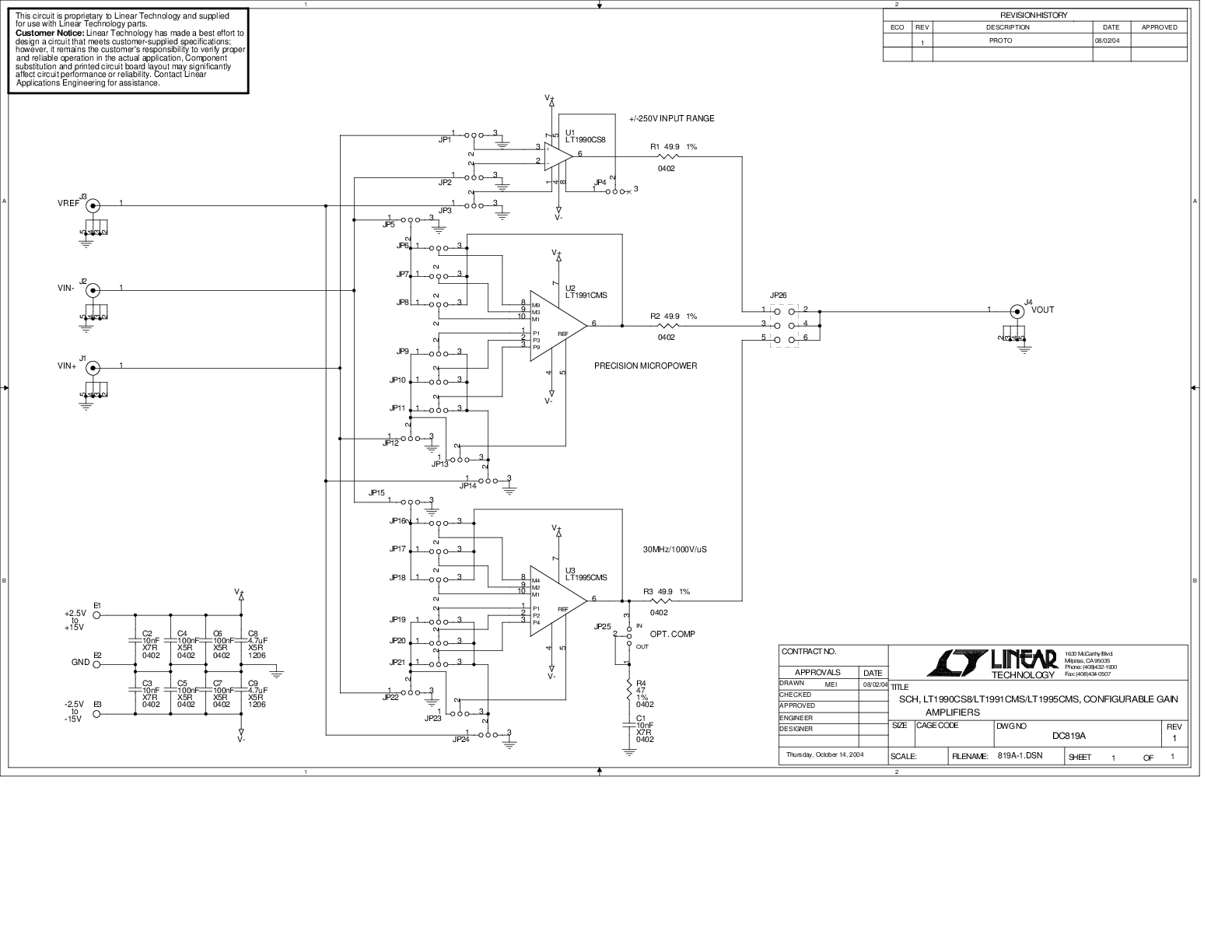

DC819A - Schematic9/24/2009PDF33K
-
DC819A - Demo Manual9/24/2009PDF232K
-
DC819A - Design File9/24/2009ZIP803K
