DC620A
LT1943EFE | 4-Output Switching Regulators for TFT-LCD Panels, VIN = 8 to 20V, VOUT = 3.3V @ 2A, 13V @ 500mA, 30V @ 30mA, –10V @ 50mA
Top
Overview
Product Details
DC620A: Demo Board for the LT1943 High Current Quad Output Regulator for TFT LCD Panels.
Applicable Parts
Documentation & Resources
-

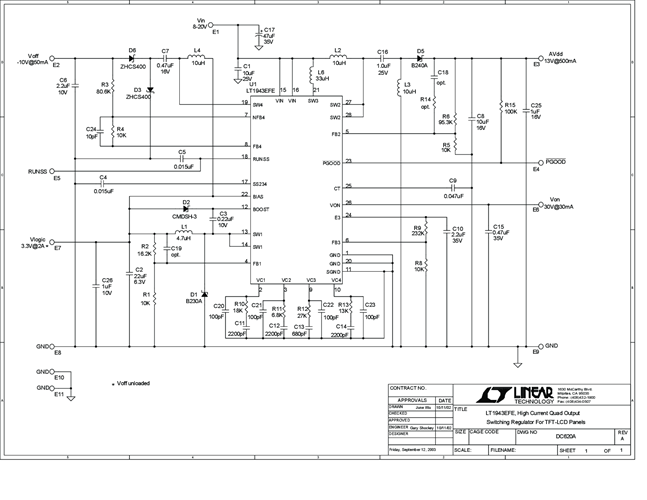

DC620A - Schematic9/24/2009PDF47K
-
DC620A - Demo Manual9/24/2009PDF170K
-
DC620A - Design File9/24/2009ZIP584K
