DC553A
LTC3450EUD | Triple Output TFT-LCD Supply, VIN = 1.5V to 4.6V, VOUT = 5.1V/10mA, 15V/500uA, -10V/500uA
Top
Overview
Product Details
DC553A: Demo Board for the LTC3450 Triple Output Power Supply for Small TFT-LCD Displays.
Applicable Parts
Documentation & Resources
-

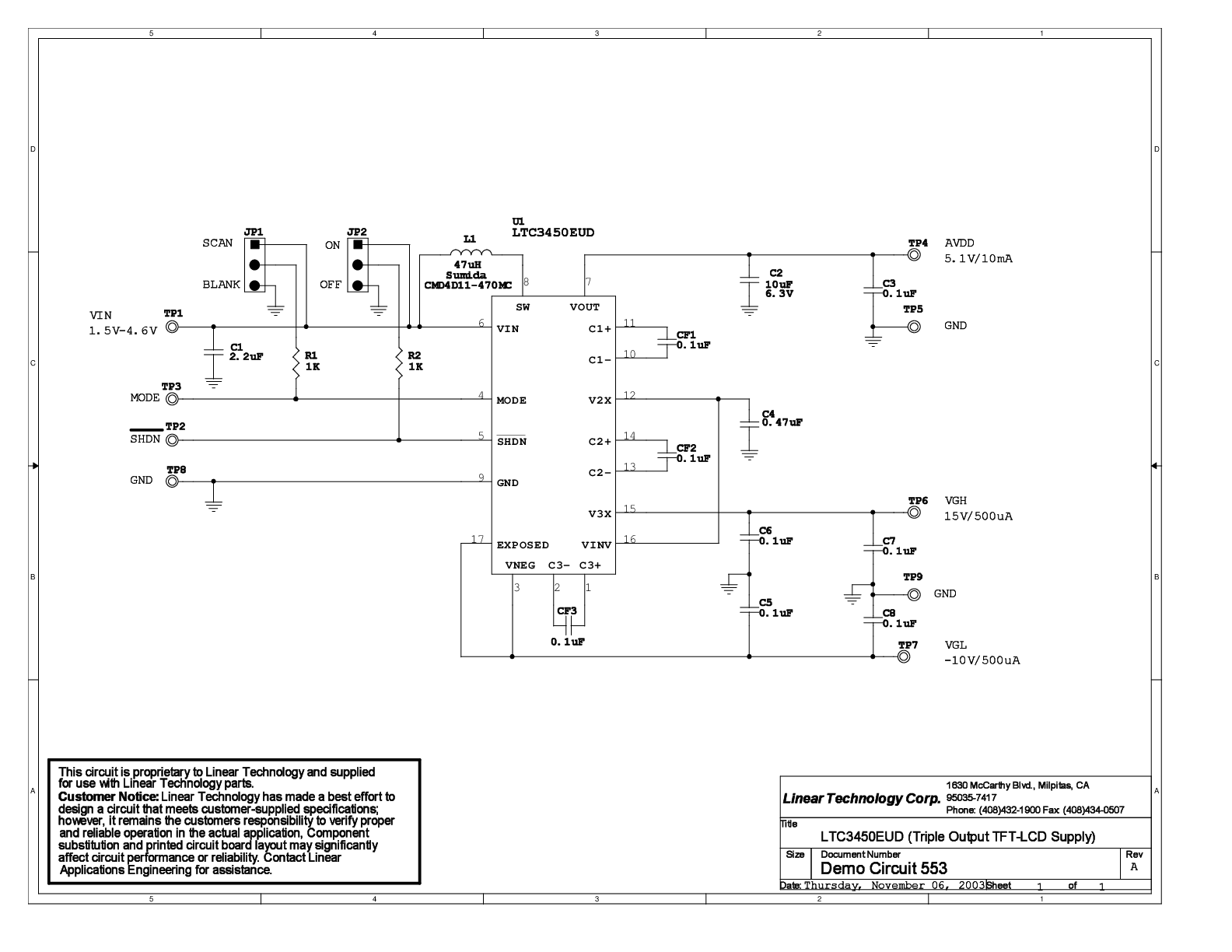

DC553A - Schematic9/24/2009PDF78K
-
DC553A - Demo Manual9/24/2009PDF138K
-
DC553A - Design File9/24/2009ZIP458K
