DC482A

LTC1983ES6-5 | 100mA Regulated Charge-Pump Inverter, 3V to 5.5V Input, –5V_OUT, I_OUT up to 100mA Max.

Top

Overview

Product Details

Product Details

DC482A: Demo Board for the LTC1983 100mA Regulated Charge-Pump Inverters in ThinSOT.

Markets and Technologies

Healthcare Solutions (1)
- Therapy Device Solutions for Healthcare

Applicable Parts

LTC1983

Documentation & Resources

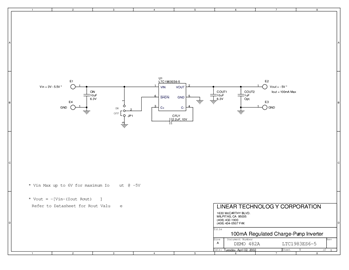

Demo Board Schematic

DC482A - Schematic
9/24/2009

PDF

8K

User Guide

DC482A - Demo Manual
9/24/2009

PDF

437K

Evaluation Design File

DC482A - Design File
9/24/2009

ZIP

1M
