DC476A

LT1765EFE | Wide Input Range, 1.25MHz Step-Down DC/DC Converter, 3V to 25V Input, Jumper Selectable 3.3V or 5V_OUT @ 2A

Top

Overview

Product Details

Product Details

DC476A: Demo Board for the LT1765 - Monolithic 3A, 1.25MHz Step-Down Switching Regulators.

Applicable Parts

LT1765

Documentation & Resources

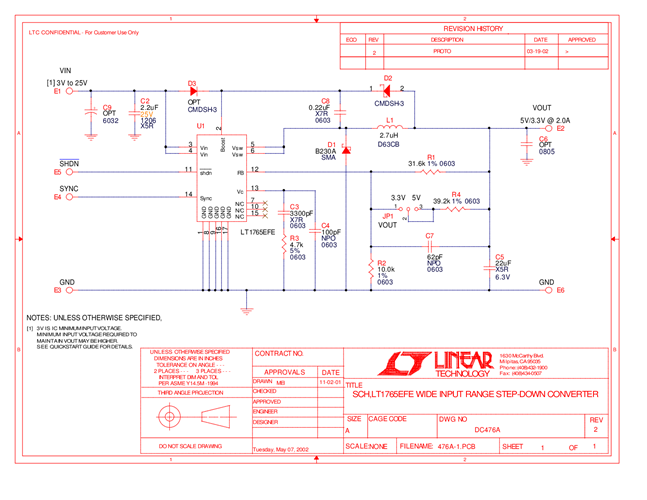

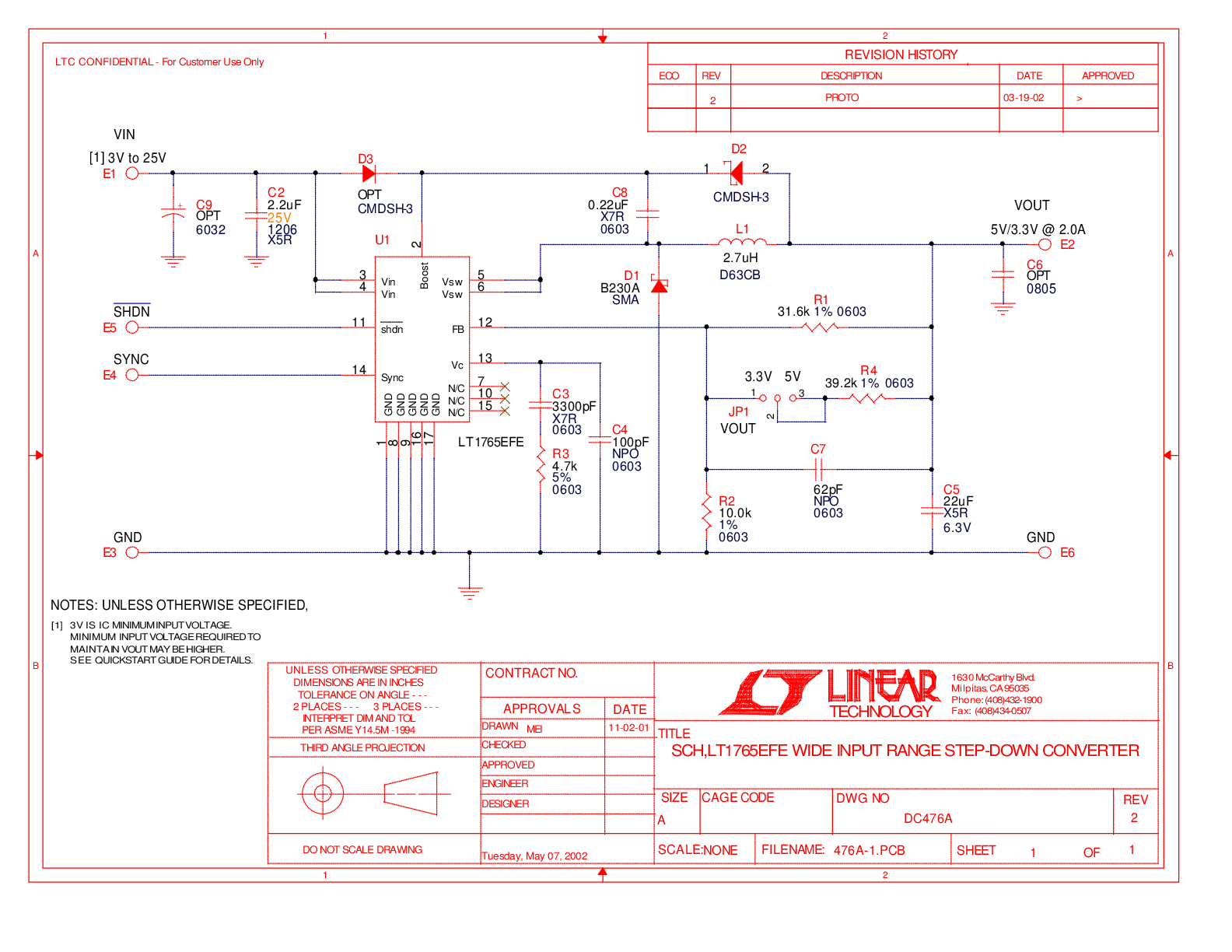

Demo Board Schematic

DC476A - Schematic
9/24/2009

PDF

15K

User Guide

DC476A - Demo Manual
9/24/2009

PDF

619K

Evaluation Design File

DC476A - Design File
9/24/2009

ZIP

1M

Software

LTspice

LT1765 Demo Circuit - 3A, 1.25MHz, Wide Input Range Step-Down Converter (12V to 3.3V @ 2A)
