DC2716A

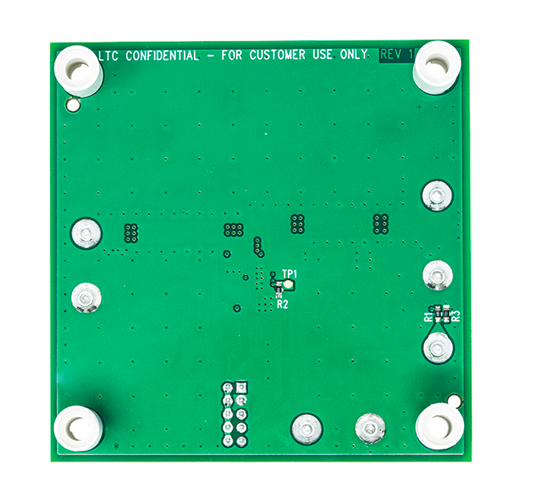

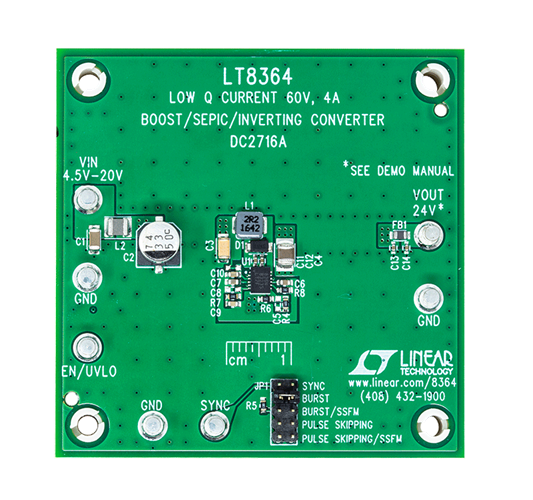

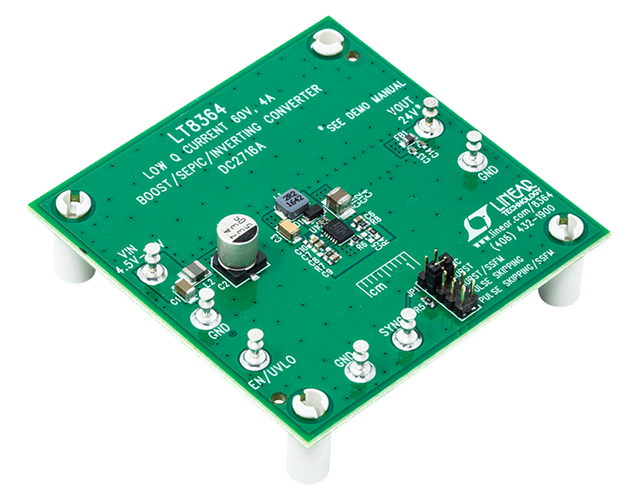

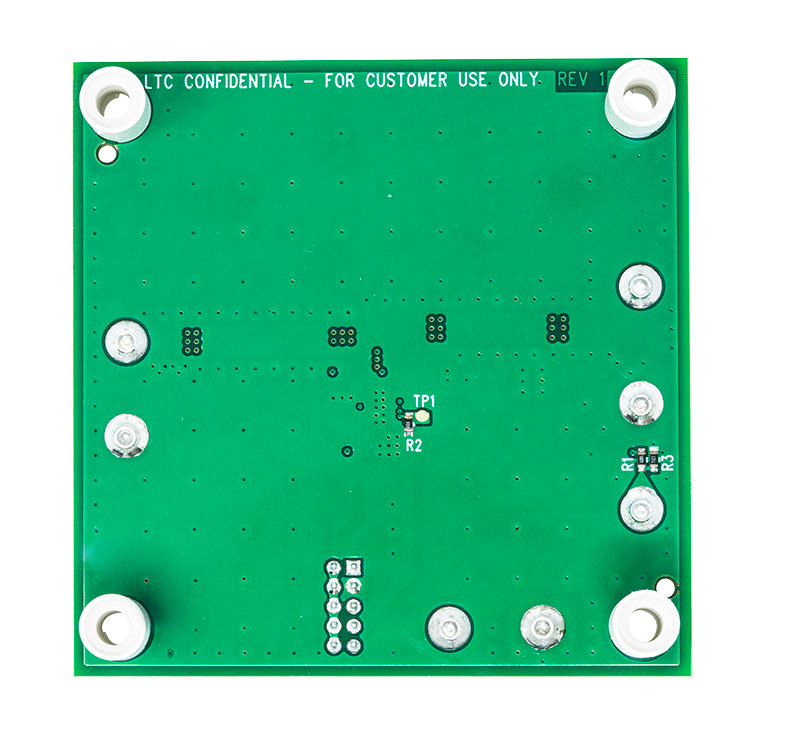

LT8364 Demo Board | 4.5V to 20VIN Low EMI Boost, VOUT = 24V @ Up to 1.6A, 2MHz Switching
Top
Overview
Product Details
Demo circuit 2716A features the LT8364 in boost configuration. It is designed to convert a 4.5V to 20V source to 24V, with up to 1.6A, depending on input voltage, with a switching frequency of 2MHz. The LT8364 can operate with inputs as high as 60V, however, in this demo circuit, the input is limited by the level of the output voltage.
Markets and Technologies
Applicable Parts
Documentation & Resources
-
DC2716A - Schematics11/30/2017PDF63K
-
DC2716A - Demo Board Manual11/30/2017PDF502K
-
DC2716A - Design Files11/30/2017ZIP1M
