Overview

Features and Benefits
Product Details

Features and Benefits

Power System Manager Features

Sequence, Trim, Margin, Supervise Power Supplies
Manage Faults, Monitor Telemetry, Create Fault Logs
PMBus Compliant Command Set
Supported by LTpowerPlay GUI
Margin or Trim Supplies to ±0.25% Accuracy
Monitor Input Current (±1%) and Accumulate Energy
Fast OV/UV Supervisors per Channel
Supports Multi-Channel Fault Management
Automatic Fault Logging to Internal EEPROM
Operates Autonomously without Additional Software
OV/UV VOUT and One VIN Supervisor
Monitor V_IN, V_OUT, I_IN, I_OUT and Temperature
Time-Based Output Sequencer
I²C/SMBus Serial Interface
Can Be Powered from 3.3V, or 4.5V to 15V
Connect Directly to Regulator IMON Pins
Available in a 44-Pin 6mm × 7mm QFN Package

Product Details

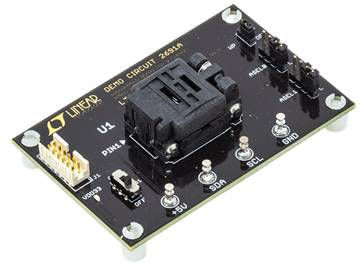

The DC2691A programming board contains the circuitry needed to program and verify the EEPROM of the LTC2972. It is shipped with a clamshell style programming socket installed. The LTpowerPlay^® *.proj file that corresponds to the factory default configuration can be found in the GUI.

To properly program and verify the contents of the EEPROM, download and install the LTpowerPlay software (GUI).

You also need an Analog Devices DC1613 USB to I²C/SMBus/PMBus Controller.
