DC2510A
Shield Board for use with DC2321A Dust Demo Board
Top
Overview
Product Details

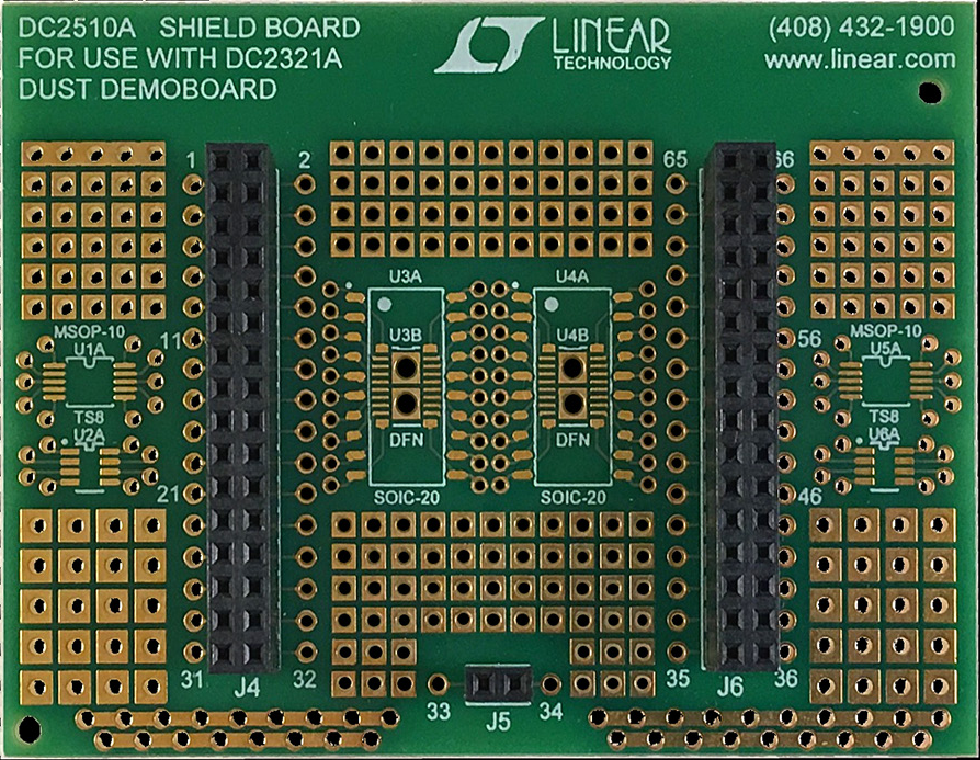

Demonstration circuit DC2510A is a shield board for use with the DC2321A Dust application demo board. This board is designed to allow users to built their own custom application circuits directly on the DC2321A with access to all pins of the LTP5901-IPM Dust mote.
Documentation & Resources
-
DC2510A - Schematic11/3/2016PDF140K
-
DC2510A - Demo Manual11/3/2016PDF743K
-
DC2510A - Design Files11/3/2016ZIP3M
