DC2454A
LTC3887EUJ-1/LTC3870EUF-1 Demo Board | Dual Phase PMBus Buck Controller with Slave Controller, 7V ≤ VIN ≤ 14V, 0.8V ≤ VOUT ≤ 1.8V @ 100A
Top
Overview
Product Details
Demonstration circuit 2454A is a high current, high efficiency, poly-phase synchronous buck converter featuring the LTC3887EUJ-1, a dual-phase current mode controller, and the LTC3870EUF-1, a dual-phase slave controller. The LTC3887-1 has the PMBus interface and the power system management functions.
Applicable Parts
Documentation & Resources
-

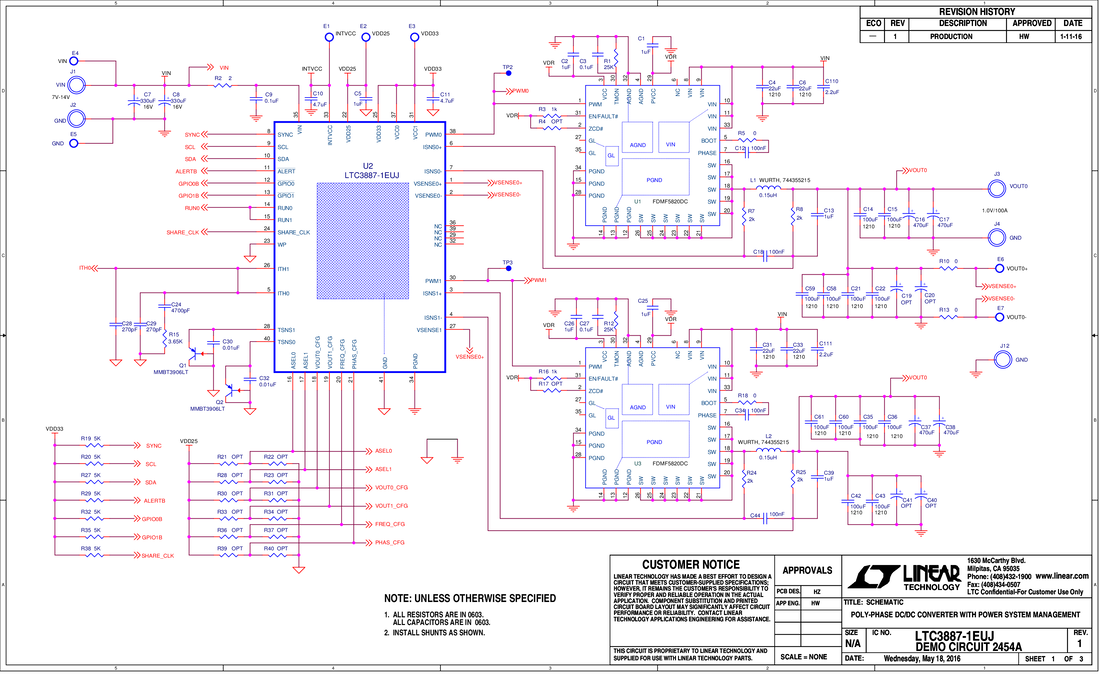

DC2454A - Schematic12/19/2016PDF101K
-
DC2454A - Demo Manual12/19/2016PDF1M
-
DC2454A - Design Files12/19/2016ZIP2M
