DC2297A-A
LT8570EDD Demo Board | Boost, 65V Power Switch, 5V ≤ VIN ≤ 10V, VOUT = 12V @ 125mA
Top
Overview
Product Details

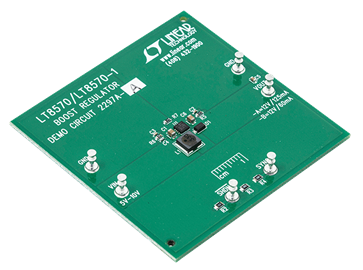

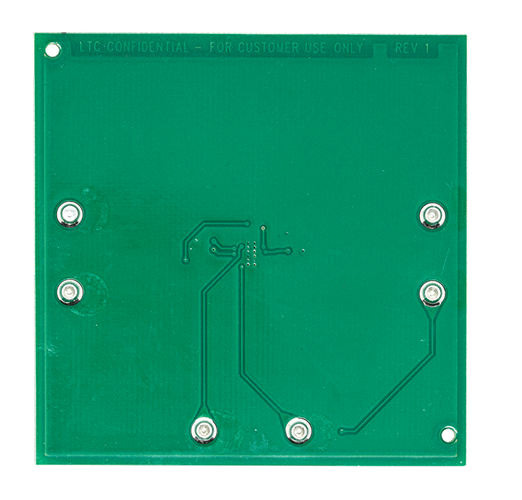

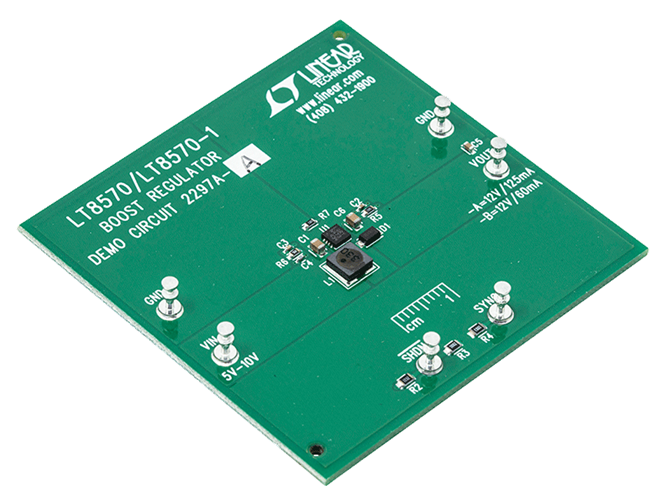

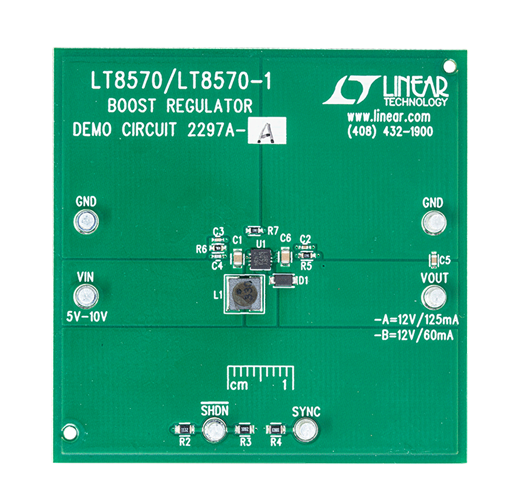

Demonstration circuits 2297A-A and 2297A-B feature the LT8570 and LT8570-1 in a boost configuration. These demo circuits demonstrate small size and low component count. Both converters are designed to convert a 5V to 10V source to 12V. Refer to the manual for maximum load current at different input voltage levels.
Applicable Parts
Documentation & Resources
-

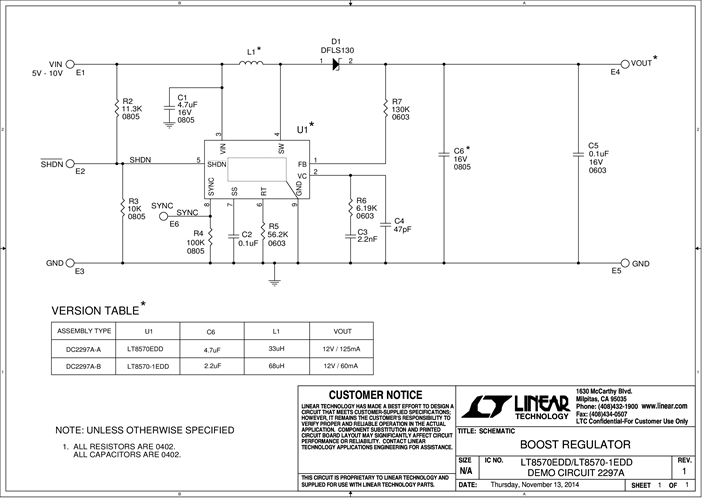

DC2297A - Schematic3/9/2015PDF29K
-
DC2297A - Demo Manual3/8/2017PDF131K
-
DC2297A - Design Files3/9/2015ZIP561K
