DC2227A
LT3669-2 Demo Board | I/O Link with 18V to 36V Input to 4V at 300mA and 3.3V at 150mA
Top
Overview
Product Details

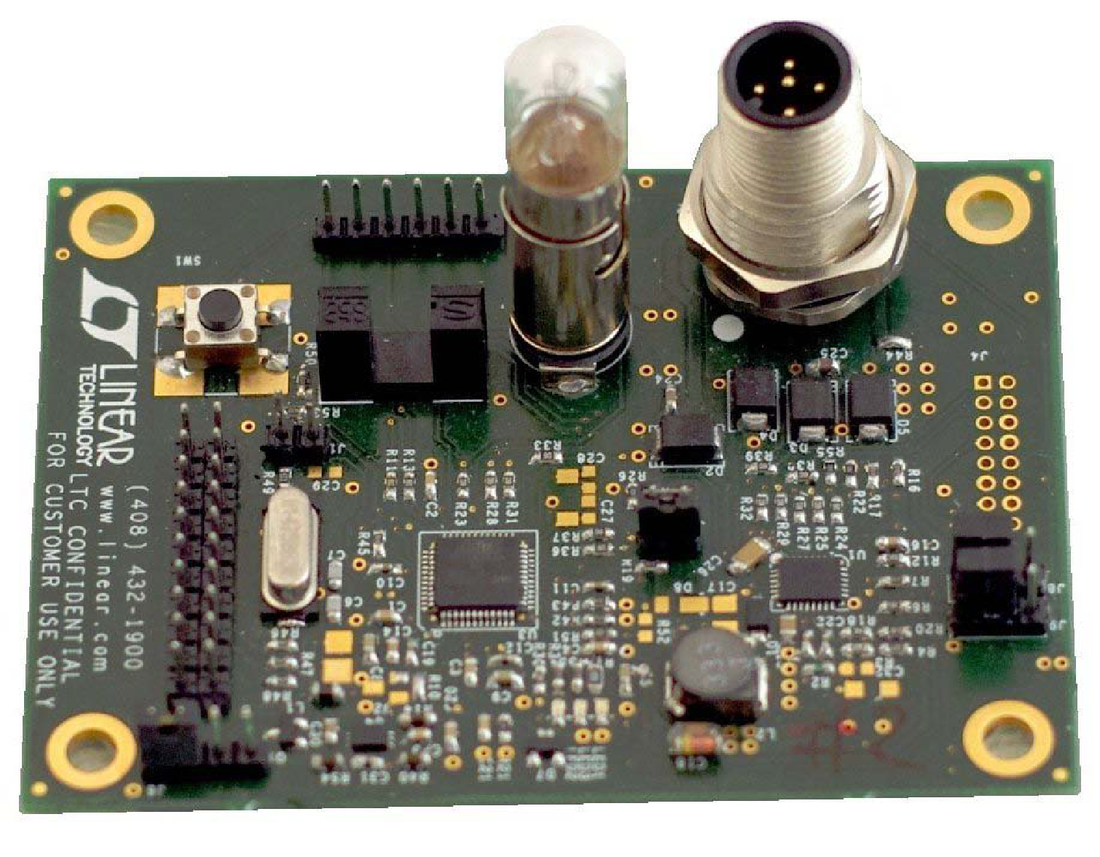

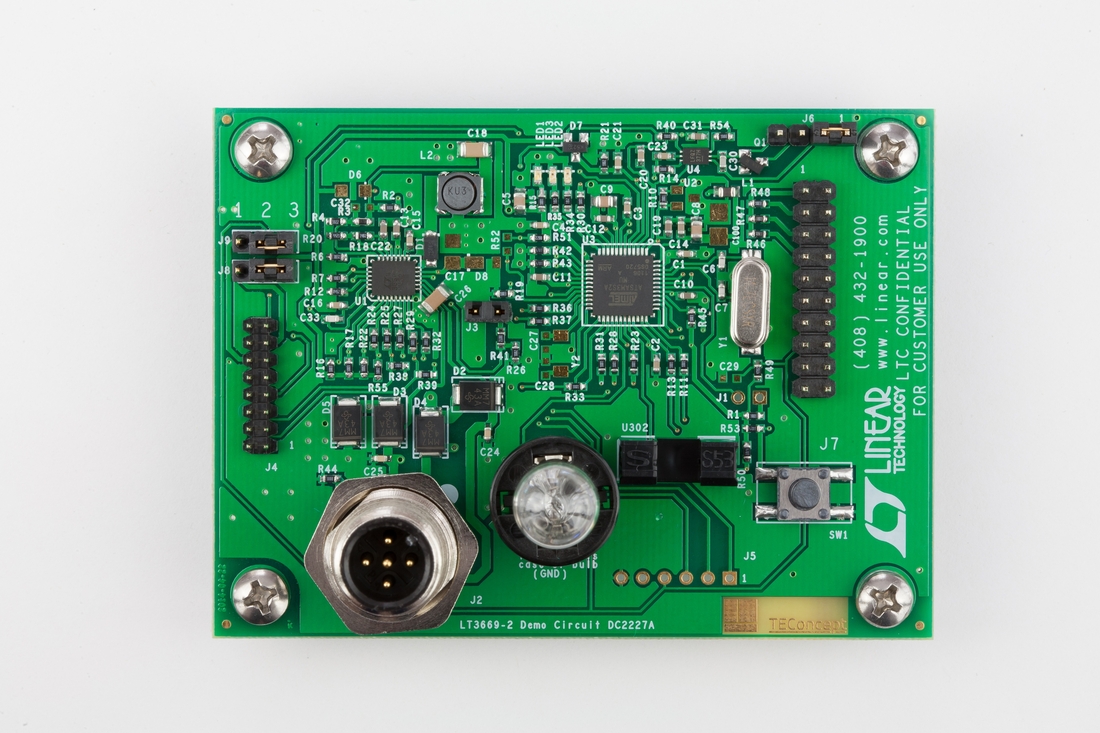

Demonstration circuit 2227A is a complete IO-Link® device built using the LT3669-2 to implement an IO-Link v1.1 physical interface (PHY). The IO-Link stack protocol runs on an Atmel ATmega microcontroller which connects to LT3669-2’s logic IO-signals to communicate with an IO-Link master via the CQ1 transceiver.
Applicable Parts
Documentation & Resources
-
IO-Link Device Evaluation Board LT366911/7/2014PDF178K
-

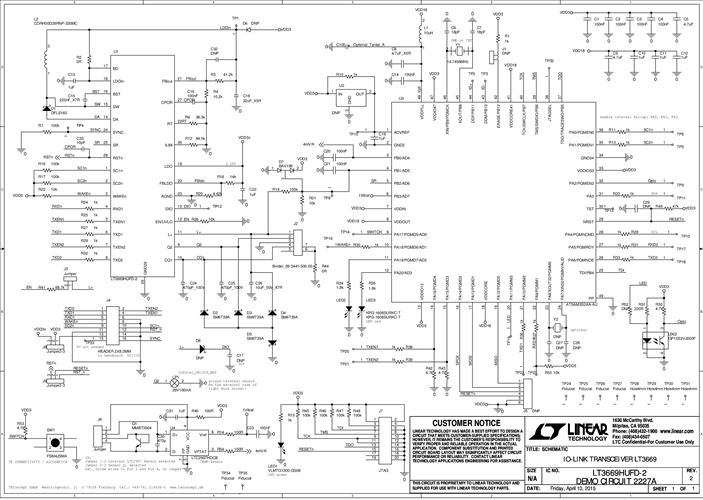

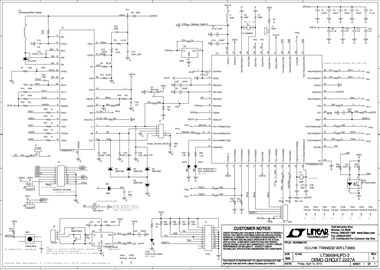

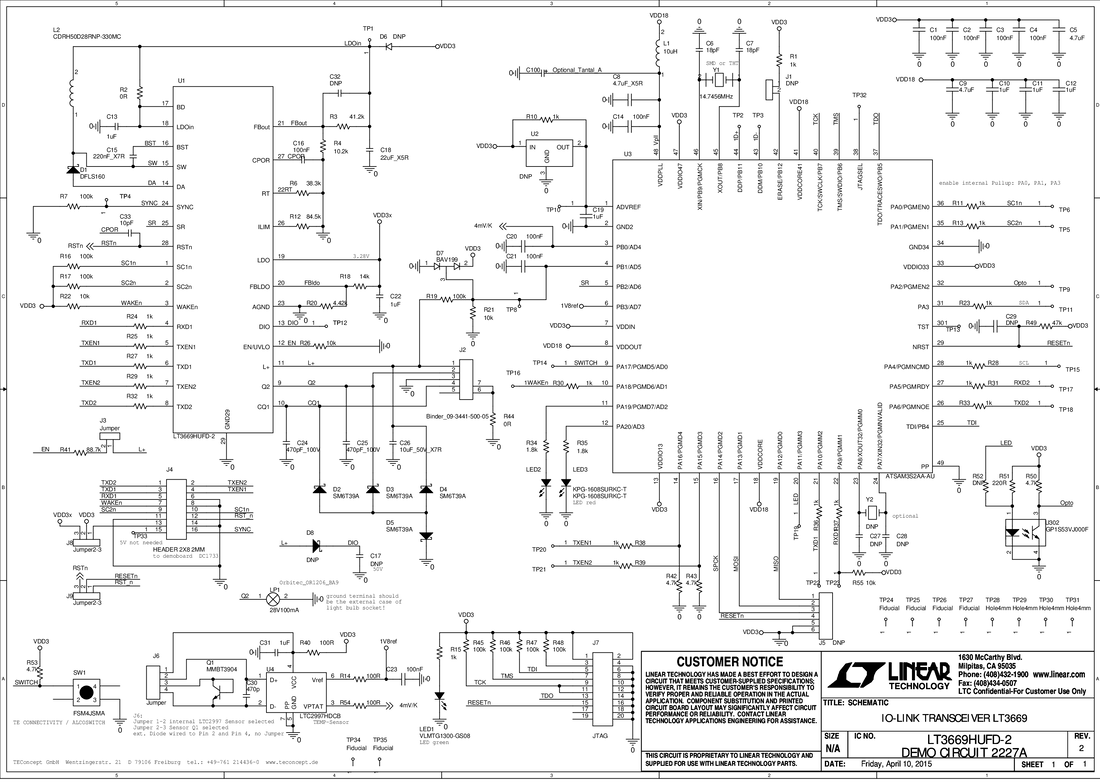

DC2227A - Schematic5/4/2015PDF51K
-
DC2227A - Demo Manual5/4/2015PDF1M
-
DC2227A - Design Files5/4/2015ZIP1M
