LTM4675 + LTM4676A + LTM4677 + LTM4620A Demo Board | PSM μModule Power Stick
Top
Overview
Product Details

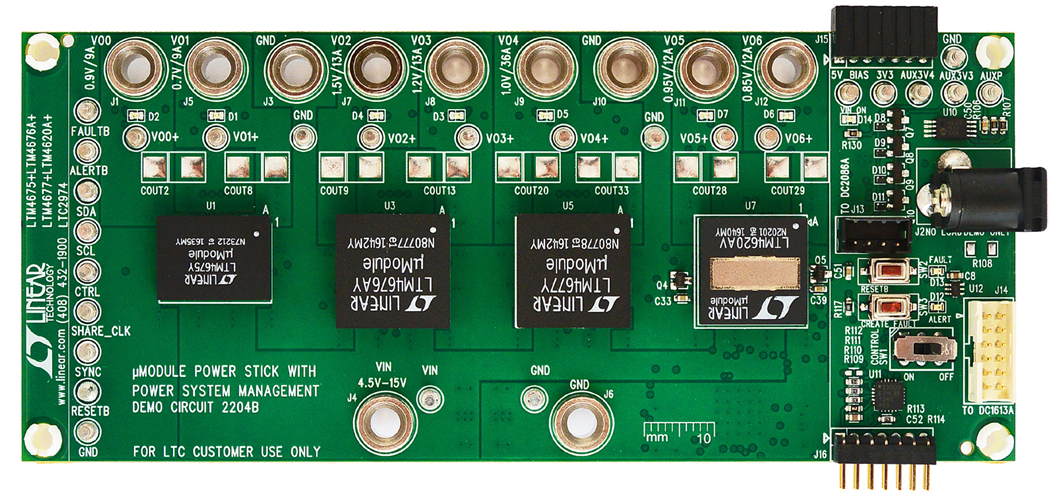

Demonstration circuit 2204B is a very compact demo board that showcases five different devices – LTM4675, LTM4676A, LTM4677, LTM4620A and LTC2974. These devices cover various product lines including DC/DC μModule® regulator with digital power system management (LTM4675, LTM4676A and LTM4677), high current analog DC/DC μModule regulator (LTM4620A) and I2C/SMBus/PMBus power system managers with EEPROM (LTC2974). Please see data sheets for more detailed information.
Documentation & Resources
-
DC2204B - Schematic5/5/2017PDF168K
-
DC2204B - Demo Manual5/5/2017PDF1M
-
DC2204B - Design Files5/5/2017ZIP3M
