LTC3765EMSE/LTC3766EGN Isolated Demo Board | Forward Converter with Sync Rectification, 36V ≤ V_IN ≤ 60V; V_OUT = 24V @ 15A

Top

Overview

Product Details

Product Details

Demonstration circuit 2199A-B is a 360W isolated forward converter with synchronous rectification featuring the LTC3765/LTC3766 chip-set. It produces a regulated 24V, 15A output from an input voltage range of 36V to 60V.

Applicable Parts

LTC3765
LTC3766

Documentation & Resources

Demo Board Schematic

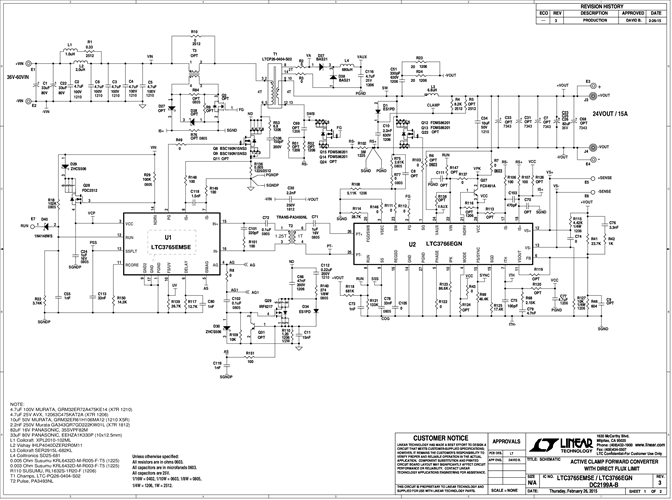

DC2199A-B - Schematic
