DC2174A-B
LTC3882EUJ Demo Board | Dual Phase Single Output PMBus Buck, 7V ≤ VIN ≤ 14V; 0.5V ≤ VOUT0 ≤ 2V @ 70A
Top
Overview
Product Details

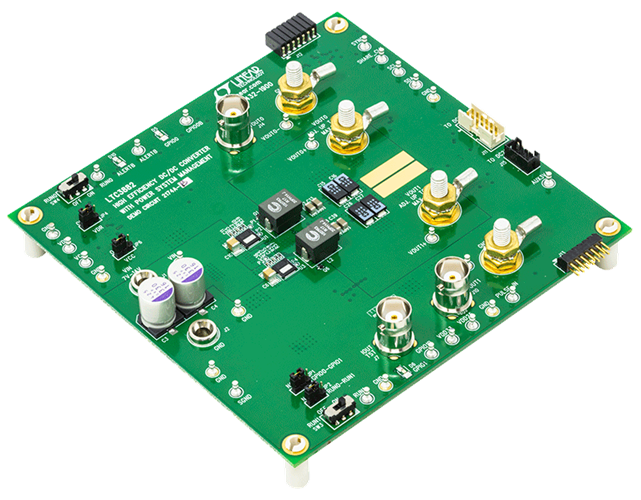

Demonstration circuit 2174A-B is a high current, high efficiency, dual-phase single-output synchronous buck converter featuring the LTC3882EUJ, a dual output voltage mode controller. The DC2174A-B operates with a 7V to 14V input voltage and is configured for 1V output at 70A. The output voltage adjustment range is 0.5V to 2V. The LTC3882 has the PMBus interface and power system management functions.
Applicable Parts
Documentation & Resources
-
DC2174A - Schematic12/9/2016PDF113K
-
DC2174A - Demo Manual2/3/2016PDF0M
-
DC2174A - Design Files4/17/2015ZIP2M
