DC2168A
LTC6433-15 Demo Board | Low Frequency to 1.4GHz, 15dB Gain Block IF Amplifier
Top
Overview
Product Details
Demonstration circuit 2168A features the LTC6433-15 50Ω gain block amplifier. The LTC6433-15 has a power gain of 15.9dB and it is part of the LTC6431-YY amplifier series.
Applicable Parts
Documentation & Resources
-

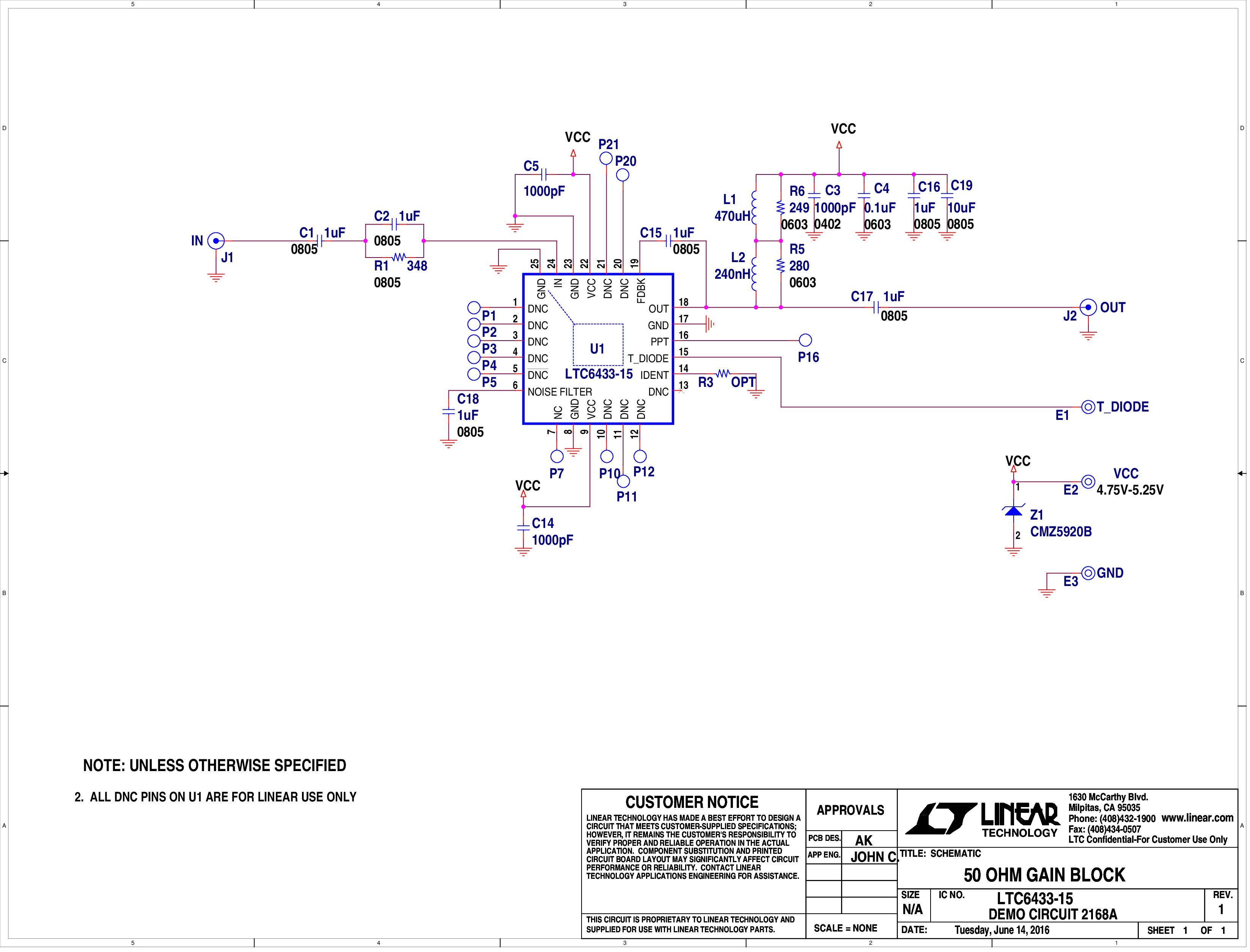

DC2168A - Schematic6/30/2016PDF31K
-
DC2168A - Demo Manual6/30/2016PDF345K
-
DC2168A - Design Files6/30/2016ZIP758K
