DC2125A
LT4275/LT4321/LTM8027 Demo Board | LTPoE++ PD Plus Diode Bridge and DC/DC Controller
Top
Overview
Product Details

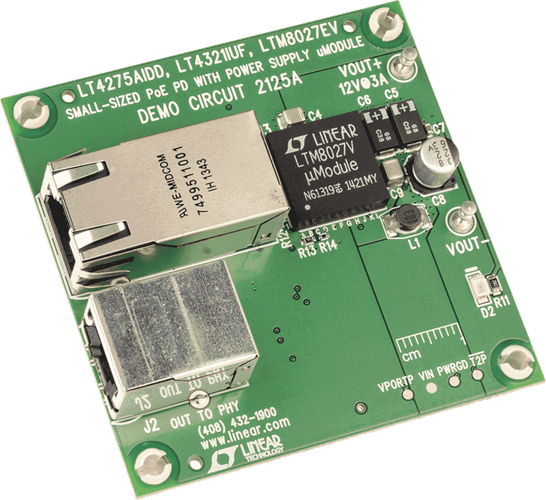

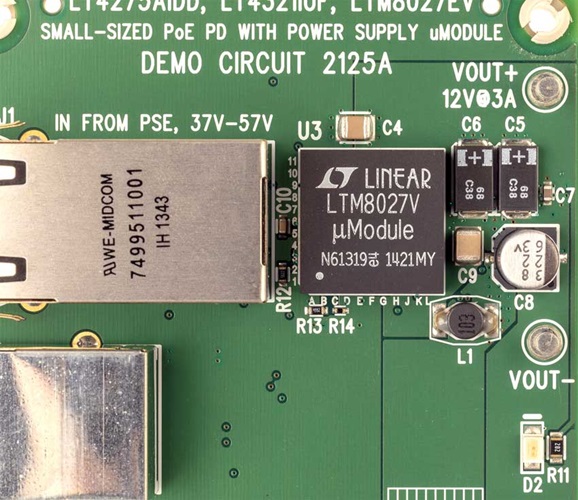

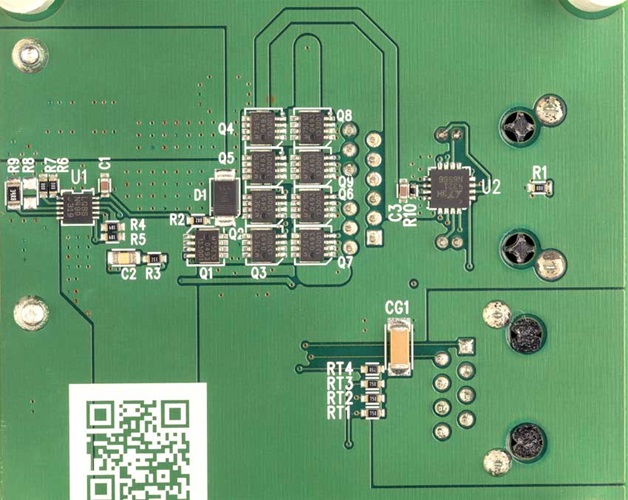

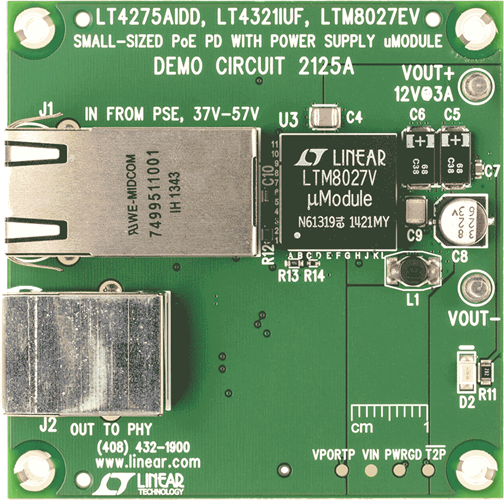

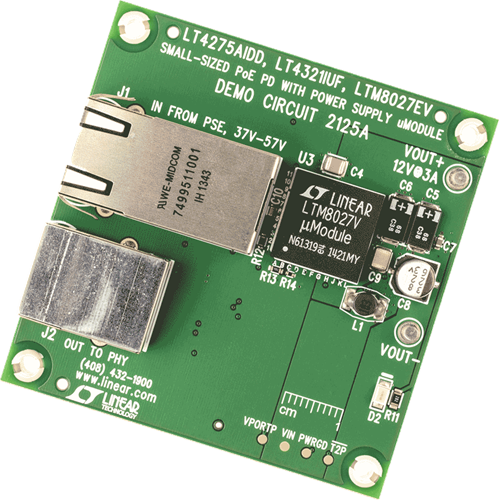

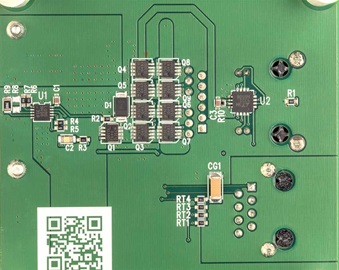

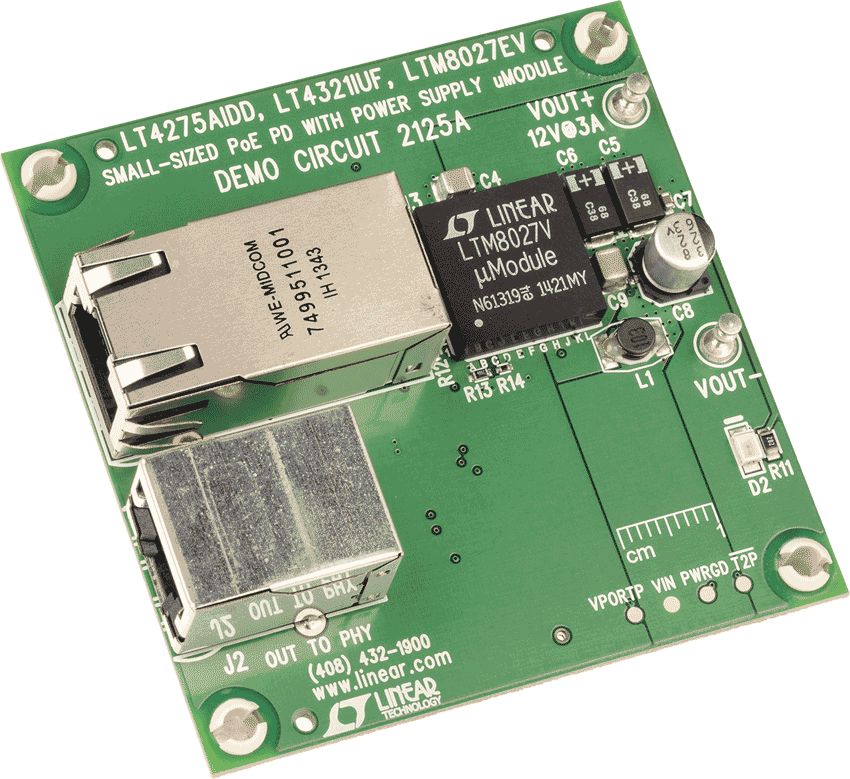

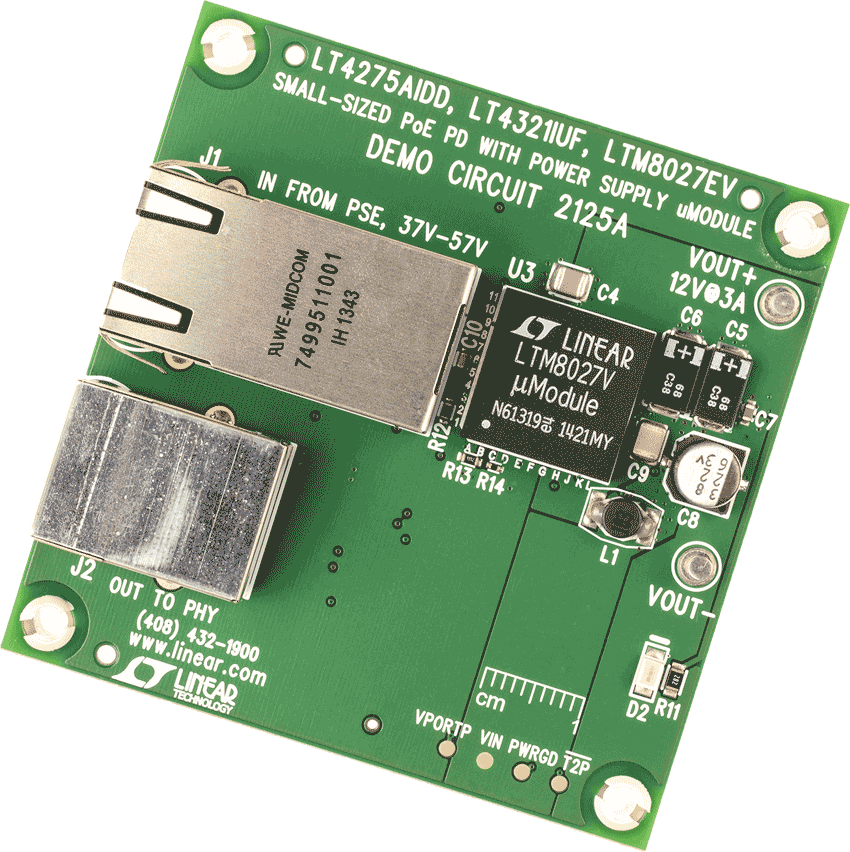

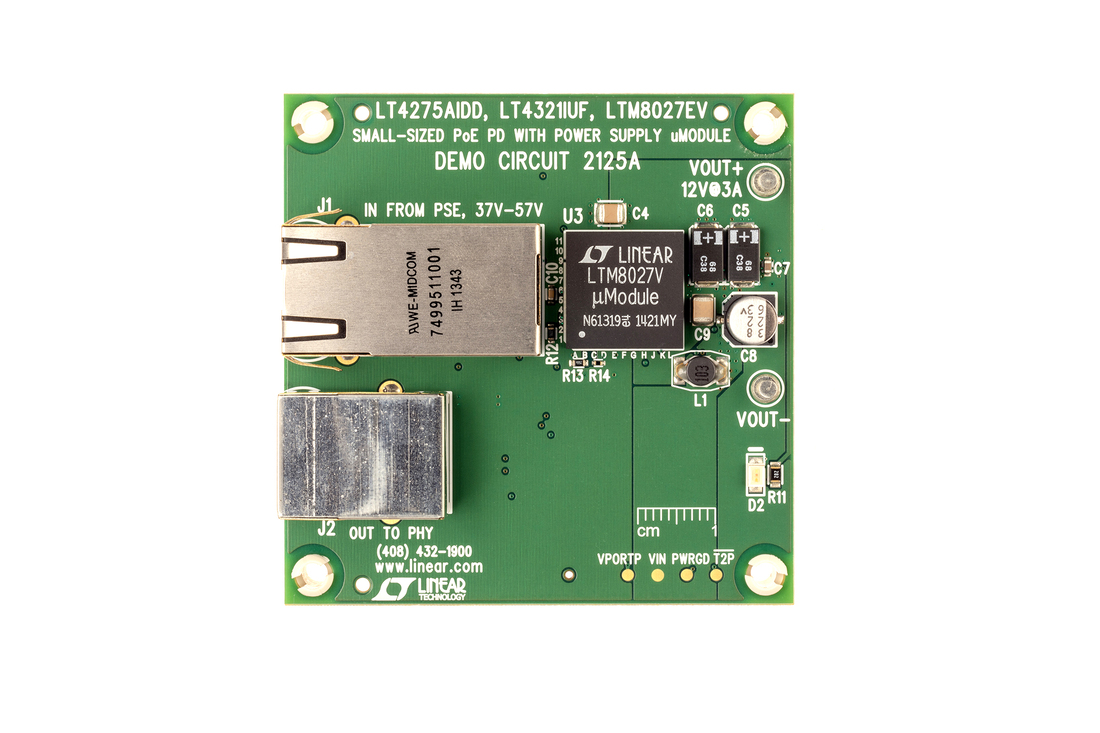

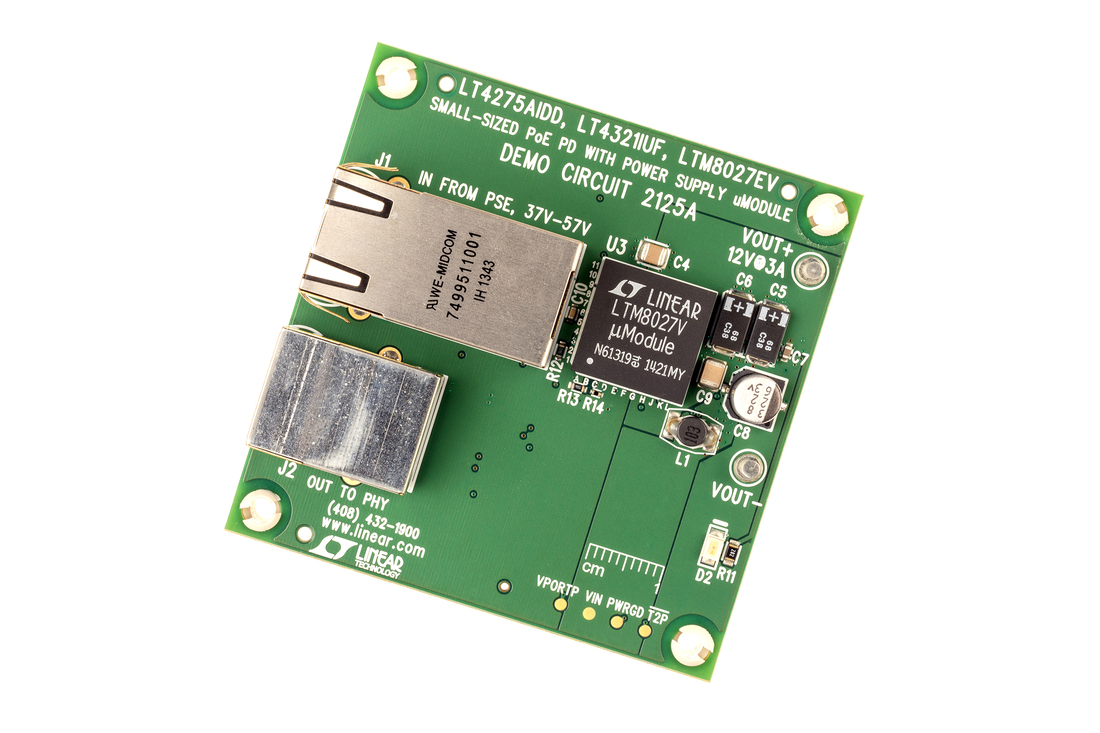

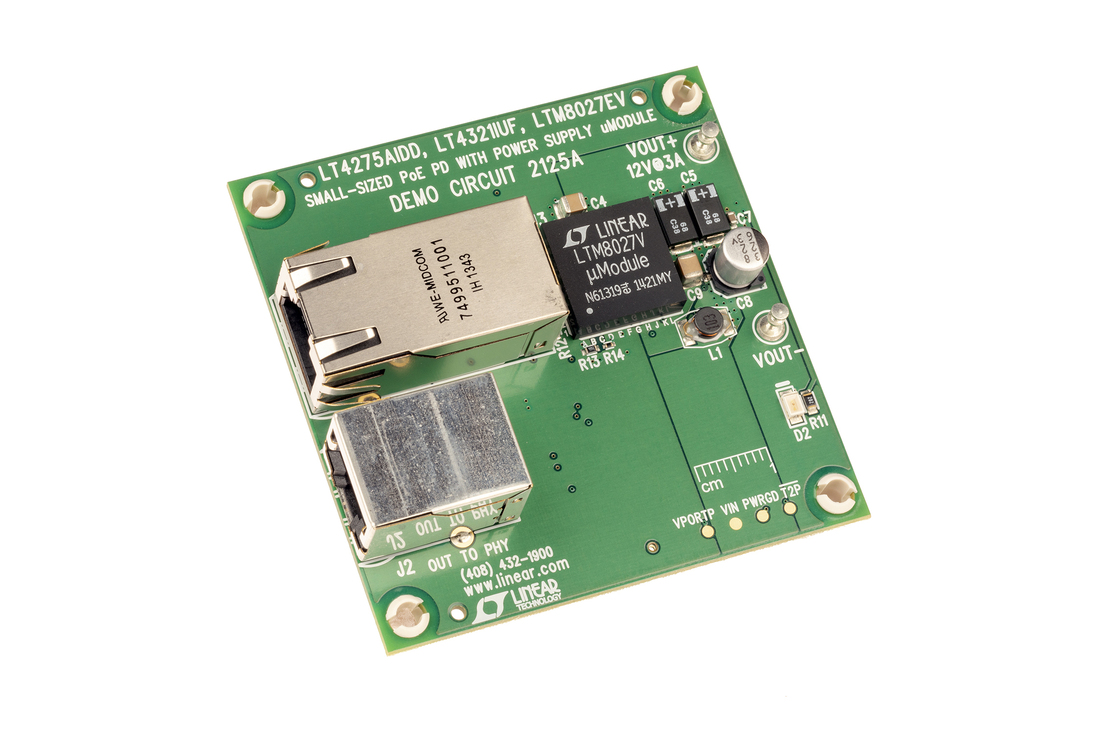

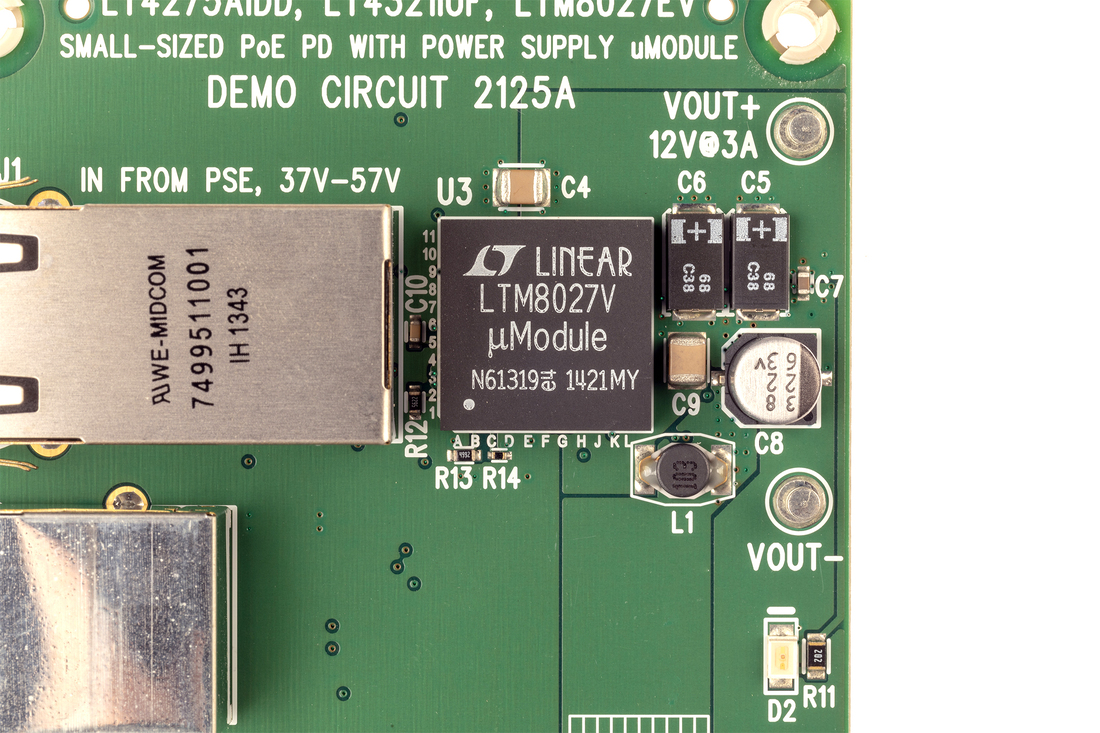

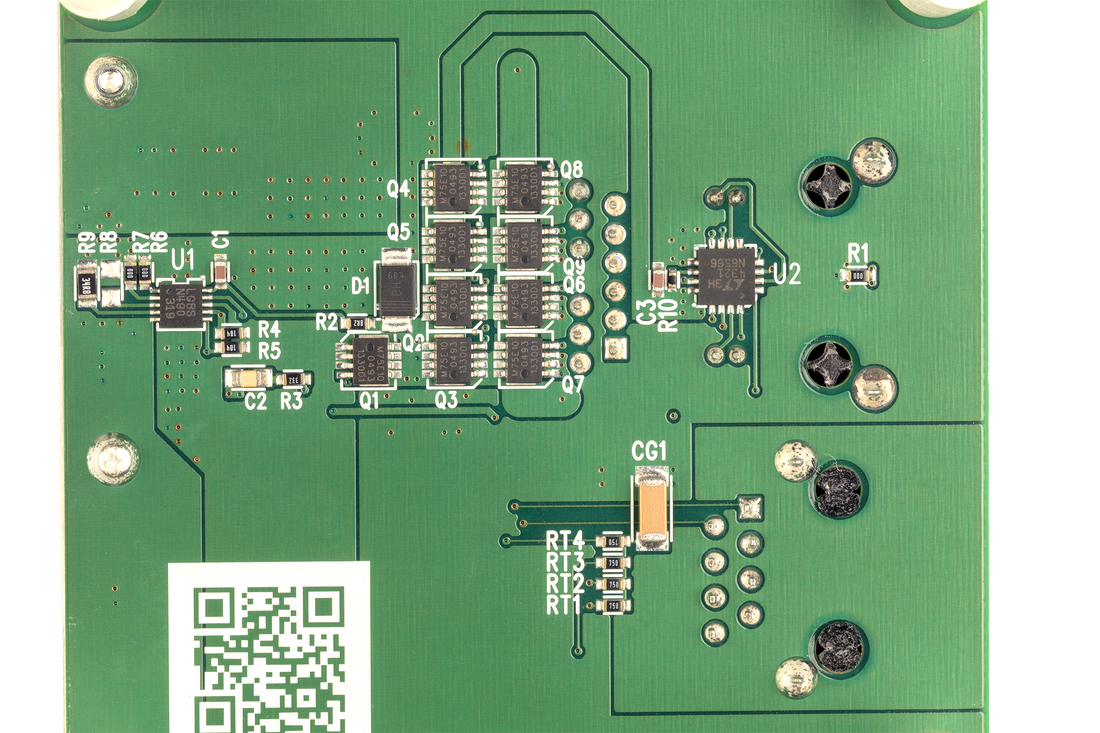

Demonstration circuit 2125 is a small, highly-integrated, non-isolated PoE Powered Device (PD) solution. It features a PD Interface Controller (LT4275), which interfaces with a PoE Power Sourcing Equipment (PSE), an ideal diode bridge controller (LT4321), which minimizes bridge losses, and a DC/DC μModule® regulator (LTM8027).
Markets and Technologies
Applicable Parts
Documentation & Resources
-

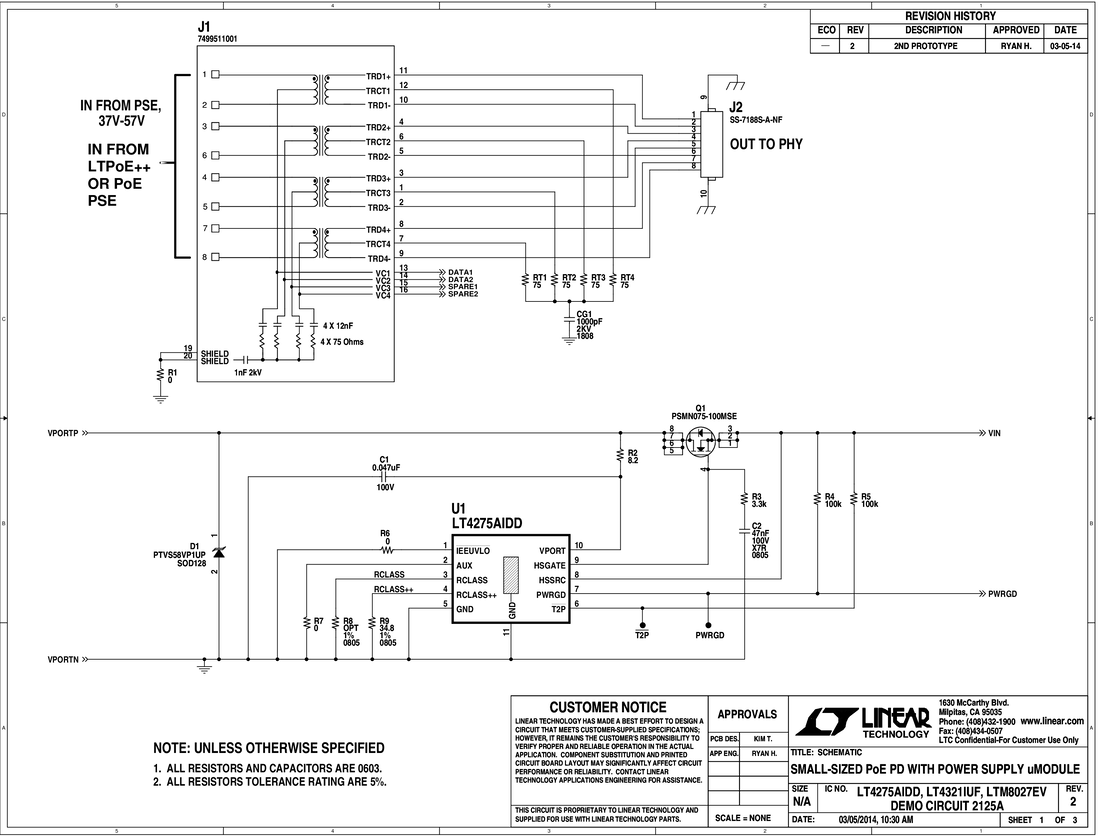

DC2125A - Schematic1/14/2015PDF78K
-
DC2125A - Demo Manual1/14/2015PDF532K
-
DC2125A - Design File1/14/2015ZIP1M
