DC1928A
LTC3867EUF Demo Board | 18V ≤ VIN ≤ 36V; VOUT = 12V @ 12A
Top
Overview
Product Details
Demonstration circuit 1928A is a single output synchronous buck converter featuring the LTC3867EUF in a 24-lead 4mm x 4mm QFN package. The input voltage range is from 18V to 36V.
Applicable Parts
Documentation & Resources
-

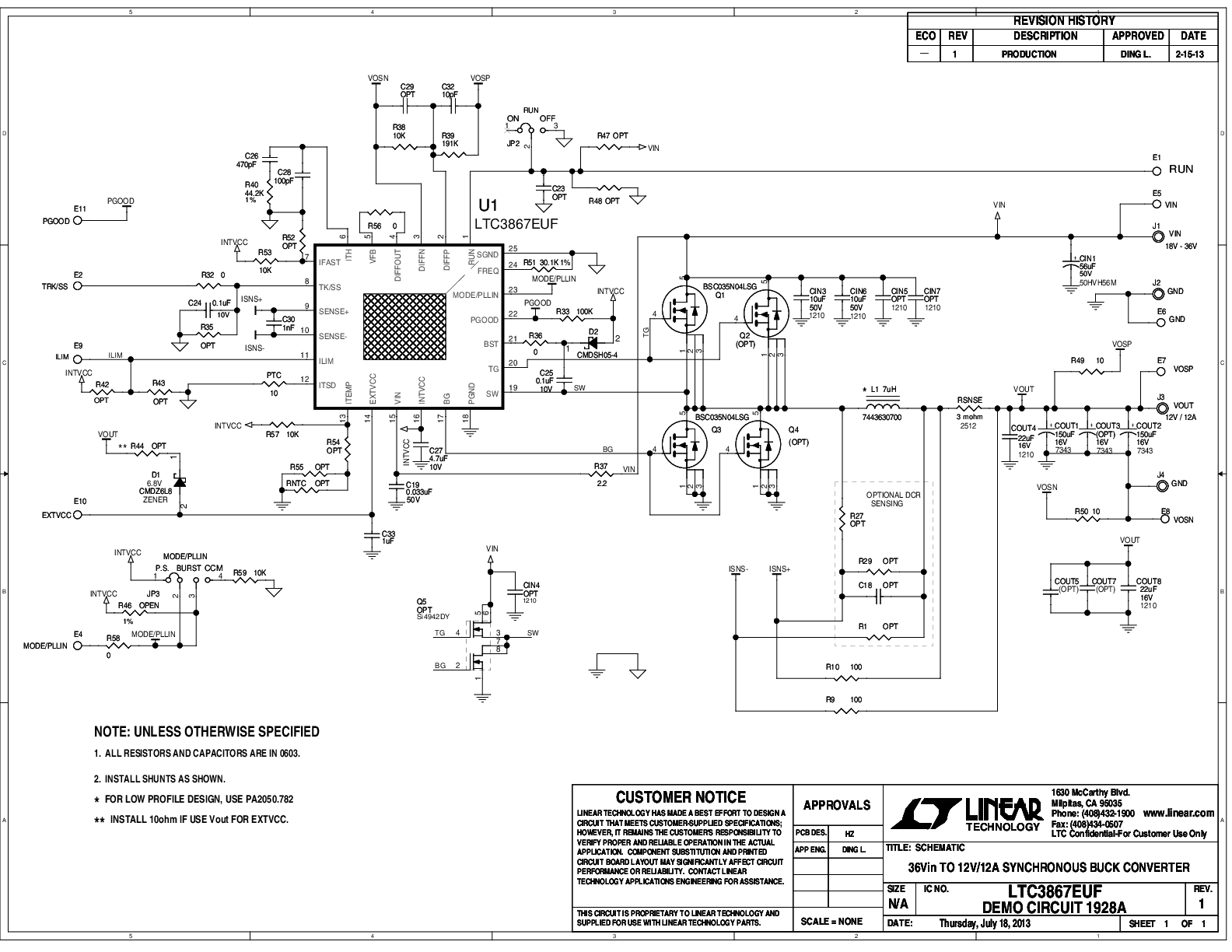

DC1928A - Schematic7/23/2013PDF66K
-
DC1928A - Demo Manual5/21/2013PDF1M
-
DC1928A - Design Files7/23/2013ZIP957K
