DC1894B
LTC6804-1 Demo Board | 12-Channel Battery Stack Monitor with Daisy-chain Interface
Top
Overview
Product Details

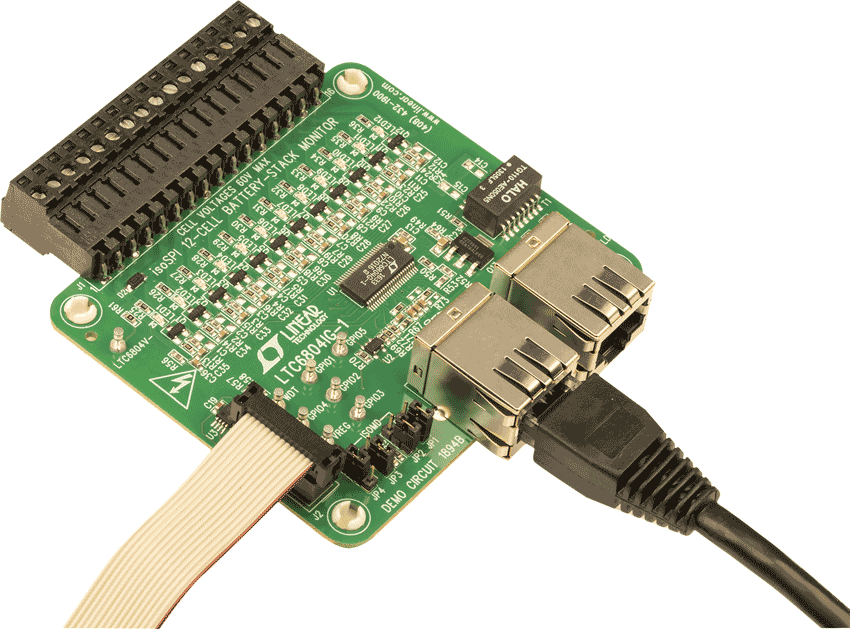

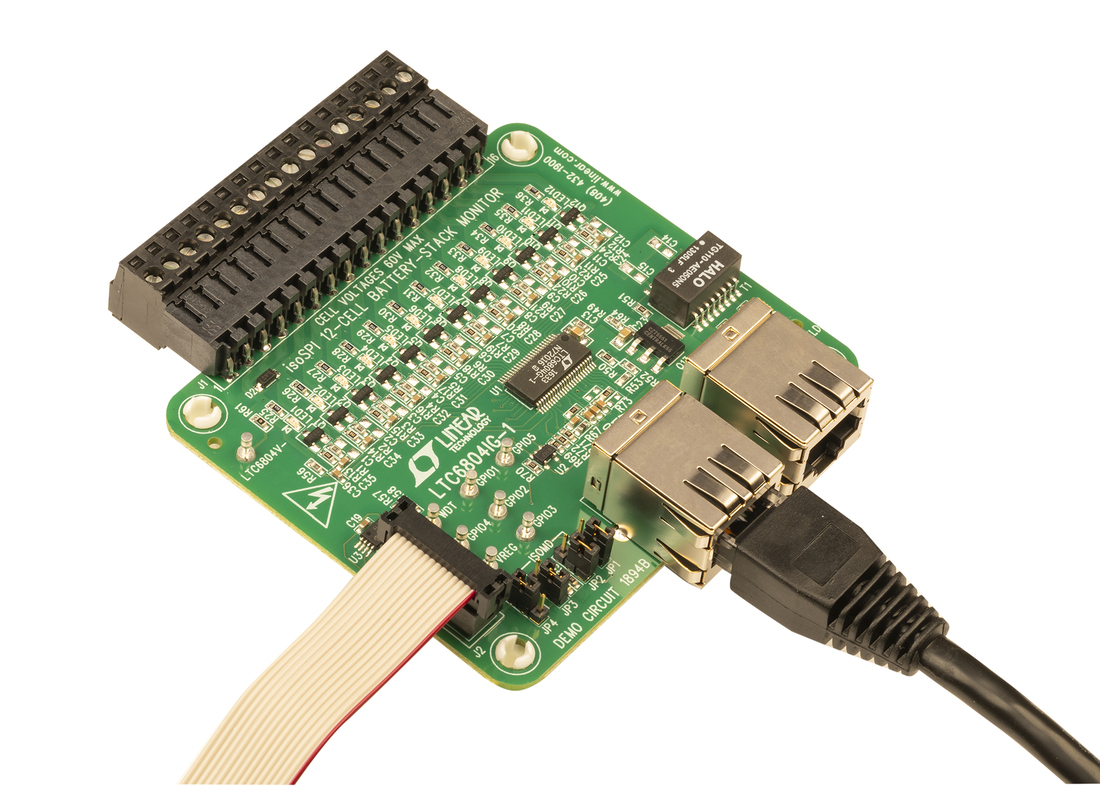

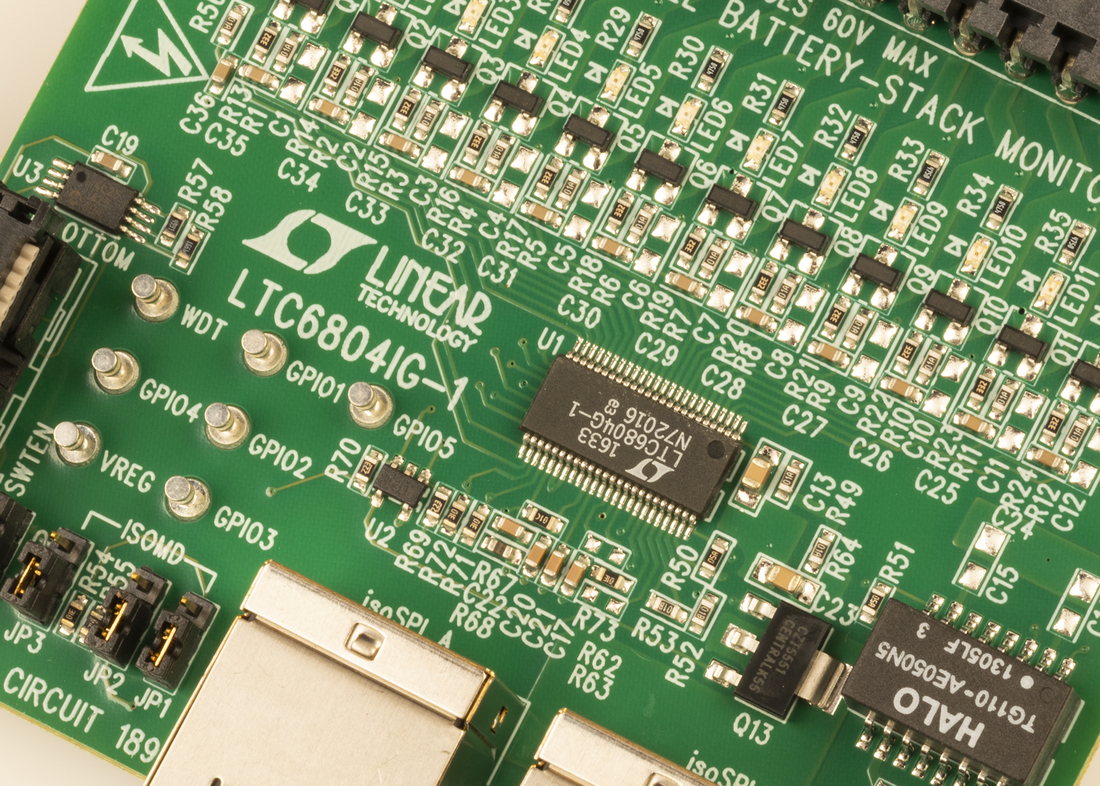

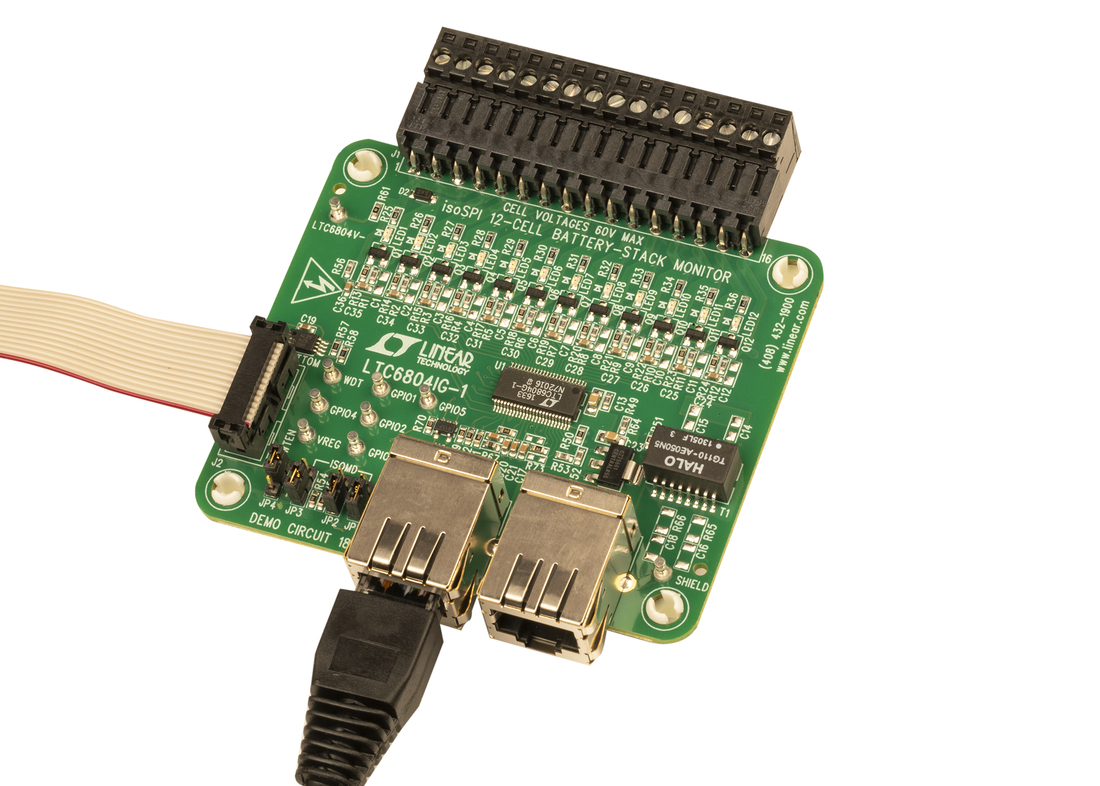

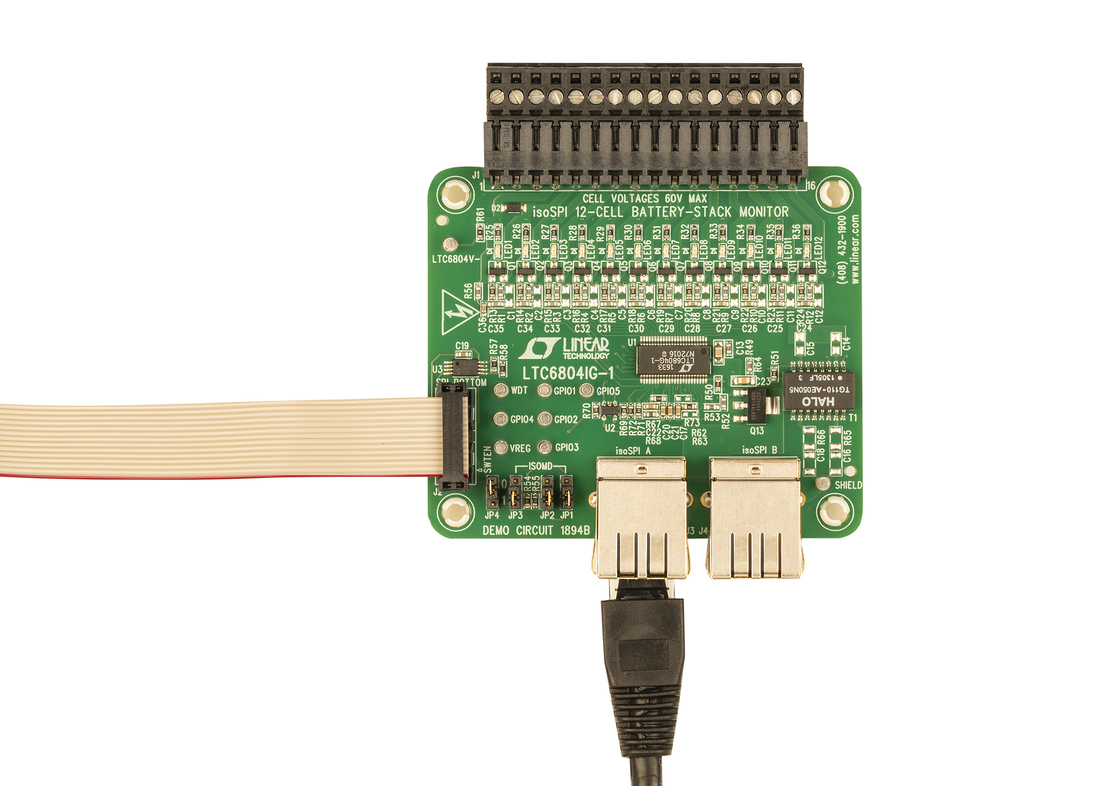

Demonstration circuit 1894B is a daisy-chainable isoSPI battery-stack monitor featuring the LTC6804-1. These boards can be linked through a 2-wire isolated serial interface to monitor any number of cells on a stack.
Applicable Parts
Documentation & Resources
-

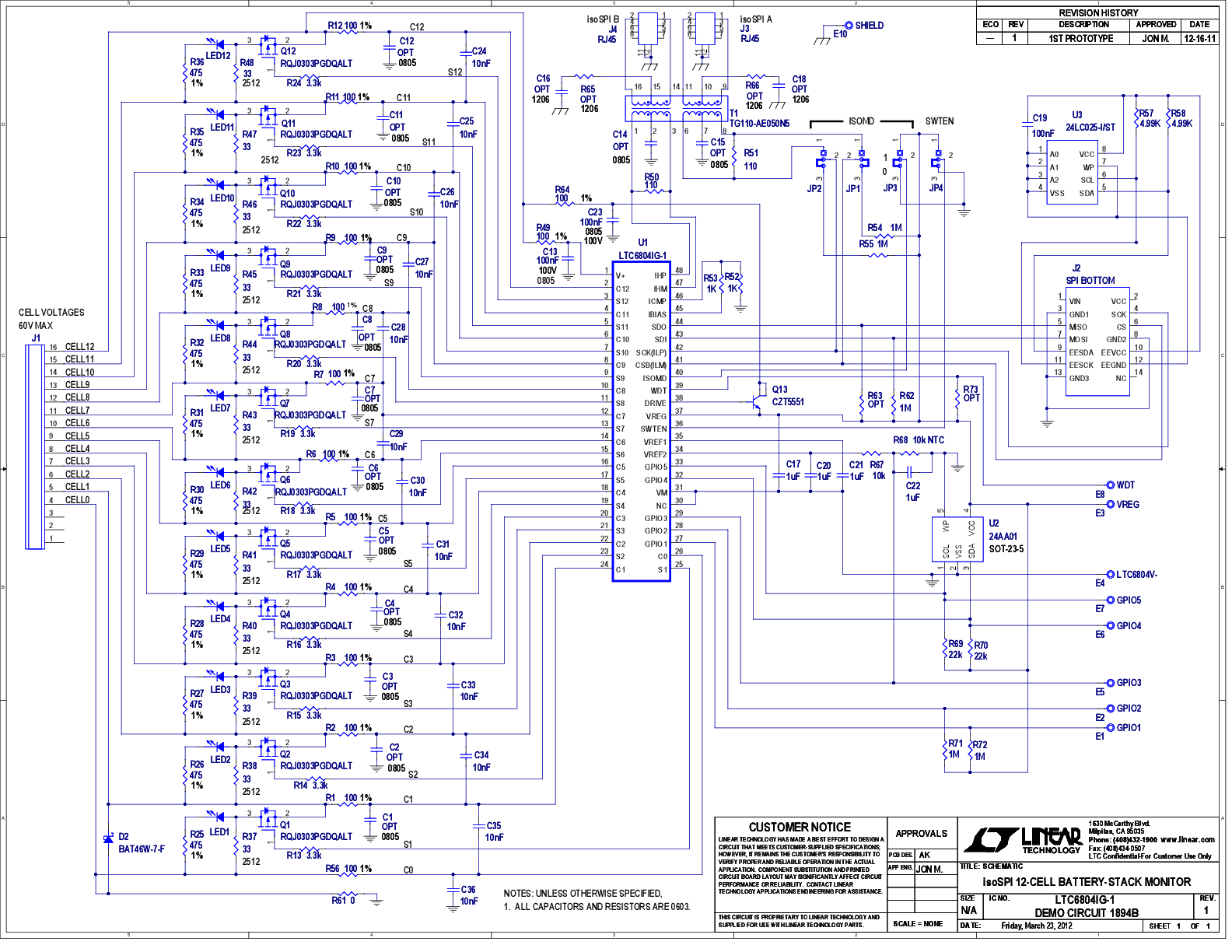

DC1894B - Schematic8/26/2013PDF89K
-
DC1894B - Demo Manual10/20/2014PDF1M
-
DC1894B - Design Files8/26/2013ZIP809K
