DC1866A

LTM8052EV Demo Board | 36V_IN, 5A 2-Quadrant CVCC Step-Down µModule Voltage Regulator

Top

Overview

Product Details

Product Details

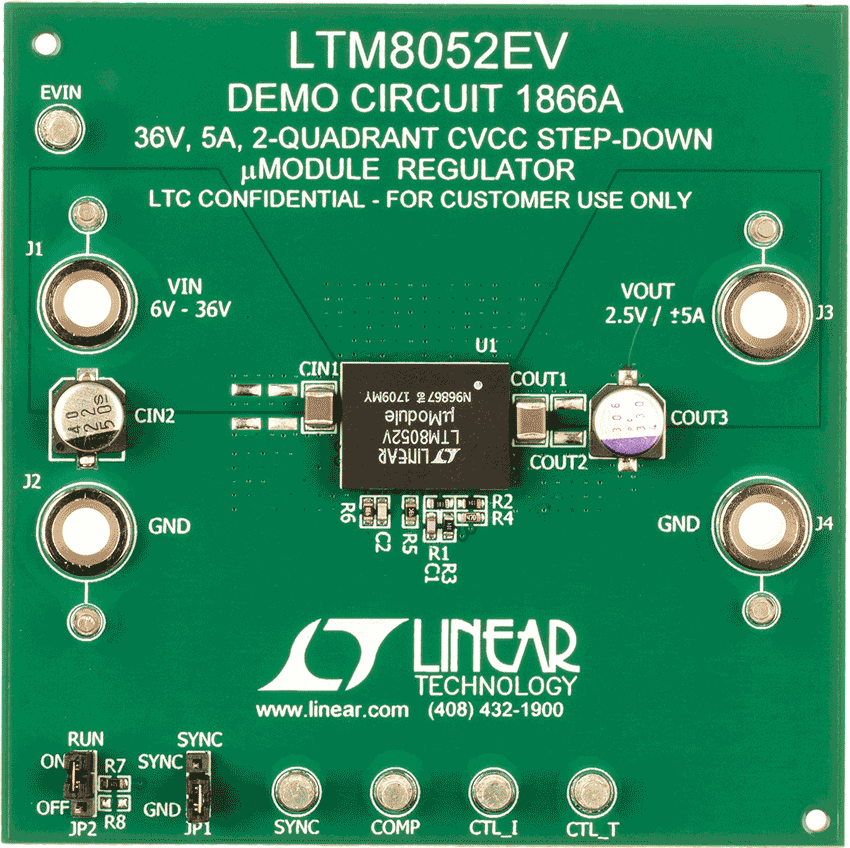

DC1866A: Demo Board for the LTM8052/LTM8052A 36V_IN, 5A, 2-Quadrant CVCC Step-Down µModule Regulator.

Applicable Parts

LTM8052
LTM8052A

Documentation & Resources

Demo Board Schematic

DC1866A - Schematic
12/14/2011

PDF

75K

User Guide

DC1866A - Demo Manual
12/15/2011

PDF

0M

Evaluation Design File

DC1866A - Design File
11/17/2011

ZIP

2M

Software

LTspice

LTM8052 Demo Circuit - 36V, 5A, 2-Quadrant CVCC Step-Down µModule Regulator (6-36V to 2.5V @ ±5A)
