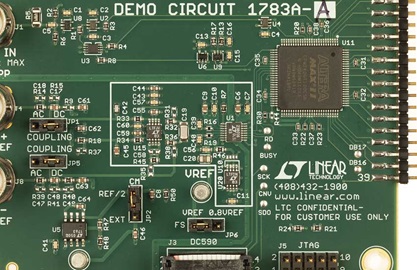

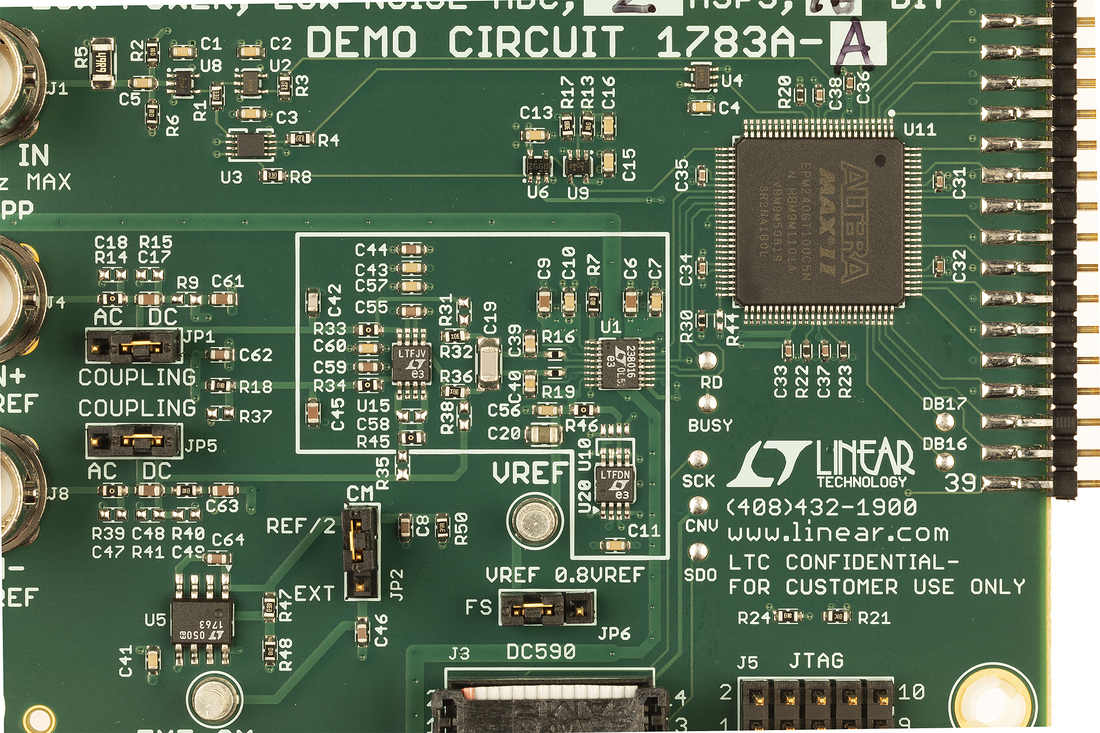

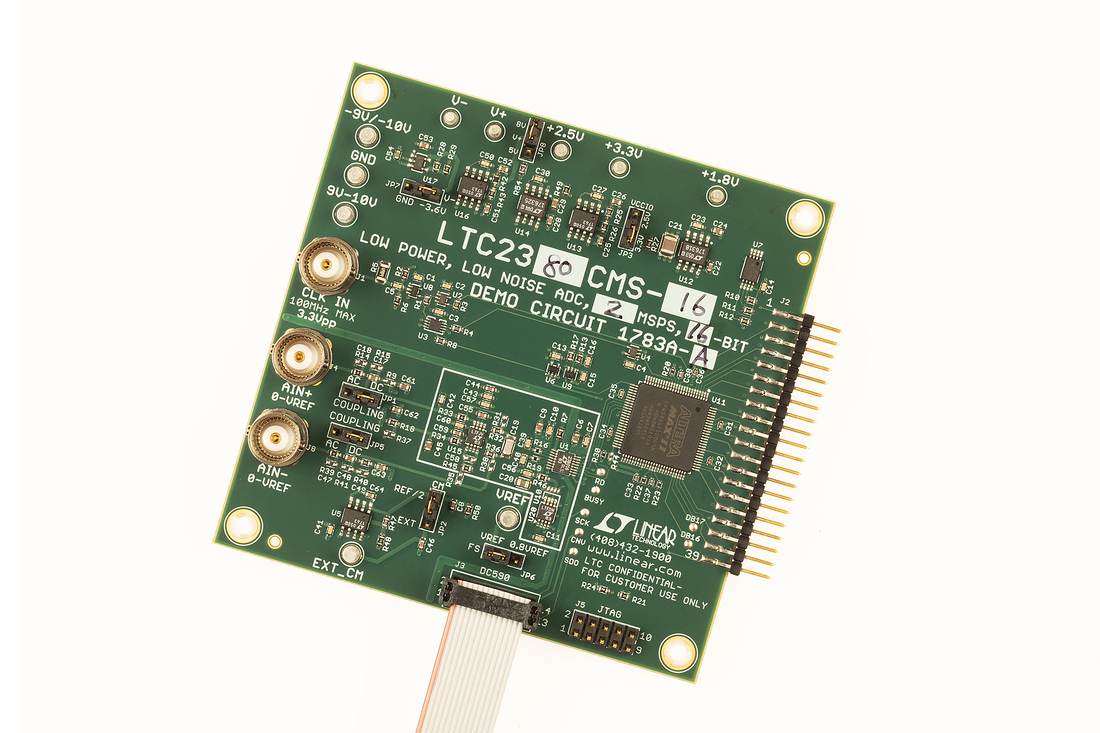

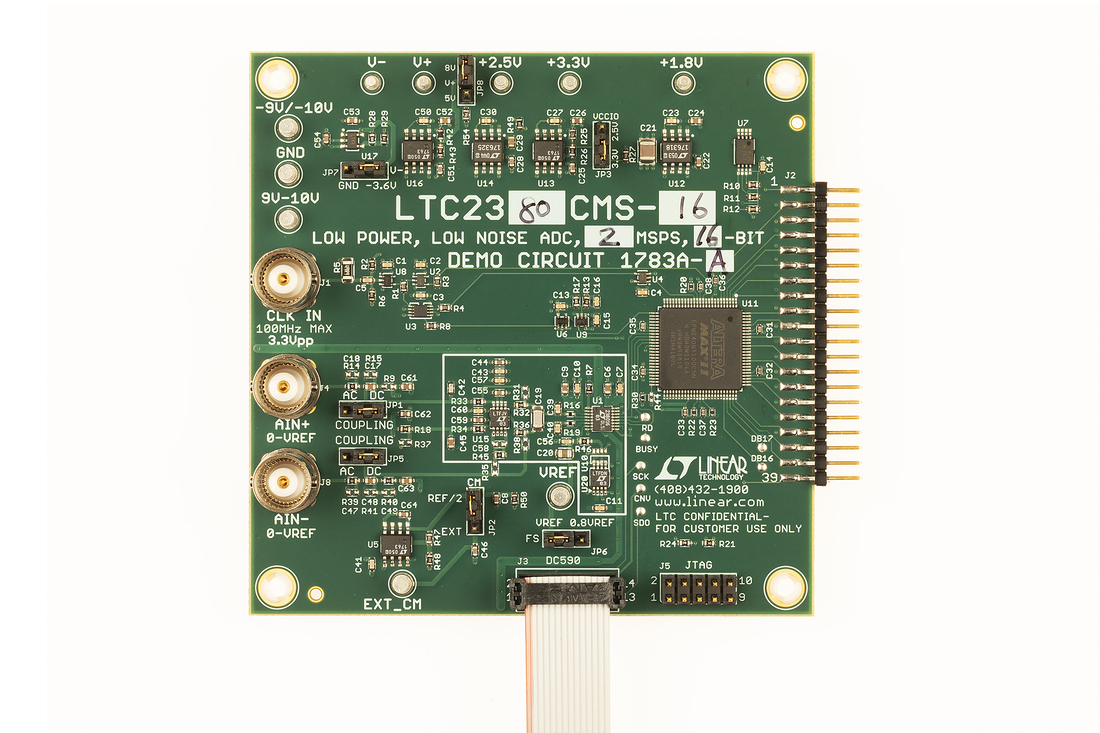

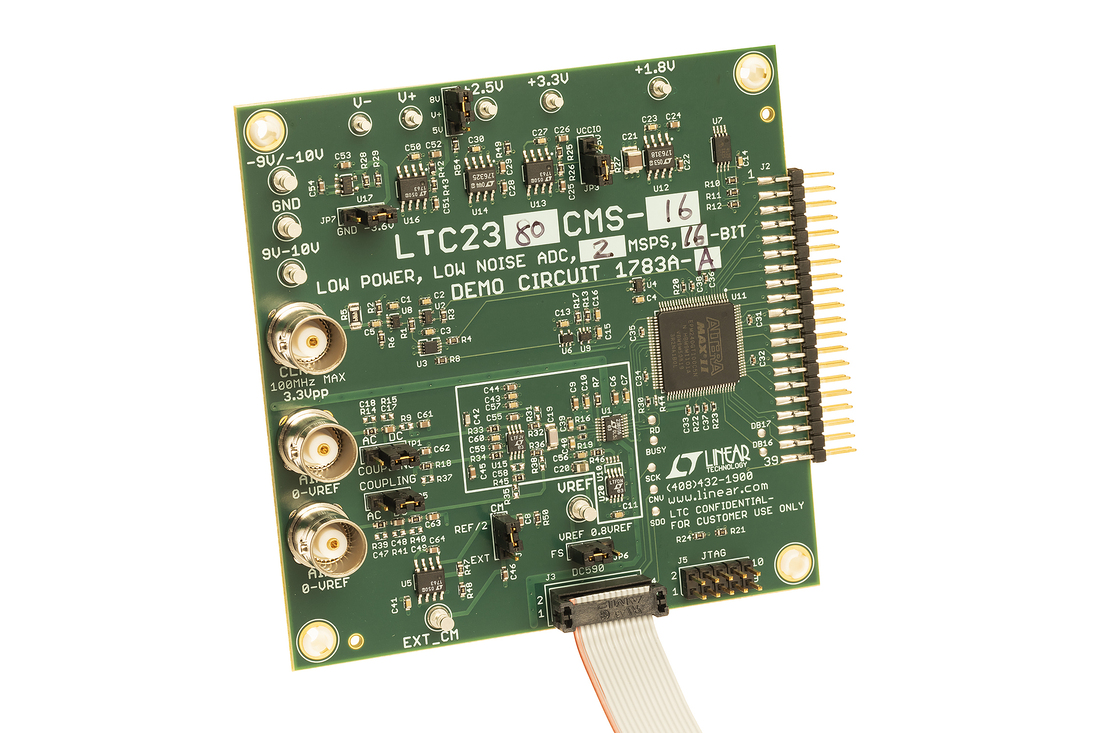

DC1783A-A
LTC2380-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 2Msps, SAR ADC with 96dB SNR. Requires DC718 or DC2026A
Top
Overview
Product Details
DC1783A-A Demo Board for:
LTC2380-16 16-Bit, 2Msps, Low Power SAR ADC with 96dB SNR
LTC6655 0.25ppm Noise, Low Drift Precision References
LT6350 Low Noise Single-Ended to Differential Converter/ADC Driver
Applicable Parts
Documentation & Resources
-
DC1783 - Schematic3/6/2012PDF817K
-
DC1783A - Demo Manual3/13/2013PDF1M
-
DC1783A - Design Files4/1/2011ZIP3M
