DC1560A
LTM8048 Demo Board | 725VDC Isolated µModule, 4.5V ≤ VIN ≤ 30V, VOUT = 5V @ 110mA to 370mA, LDO Post-Regulated Flyback
Top
Overview
Product Details

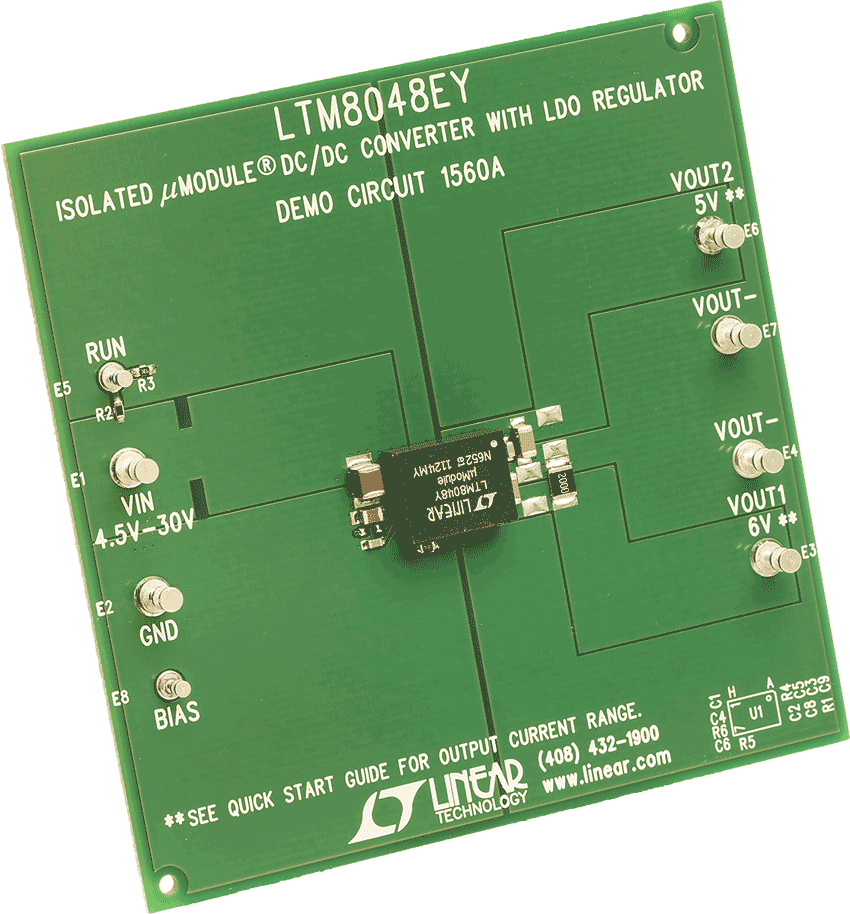

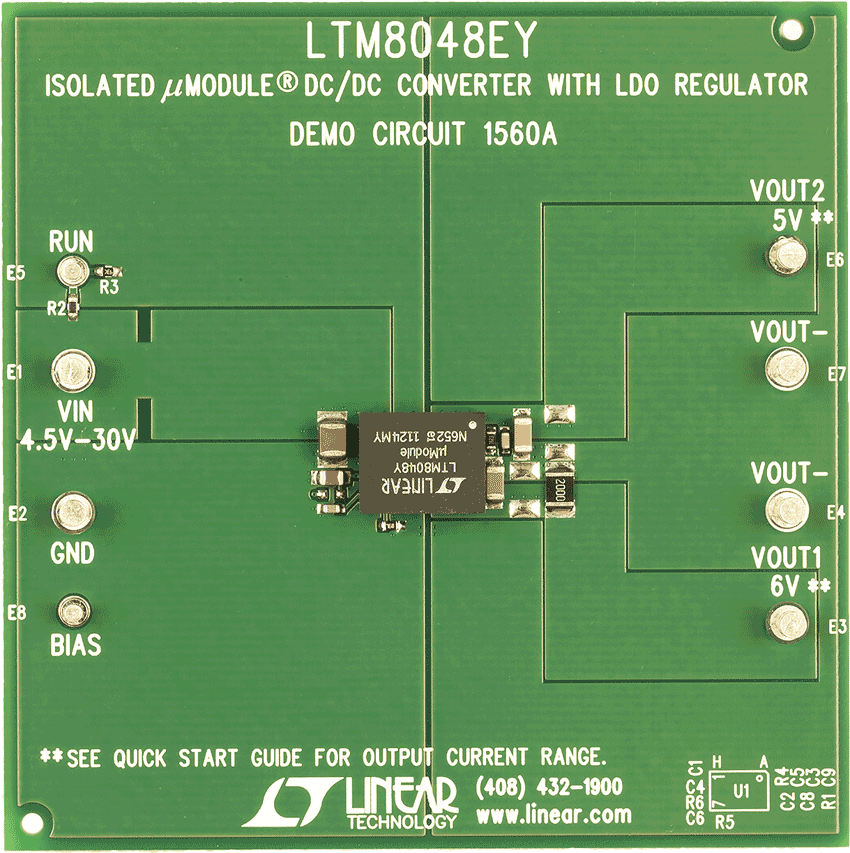

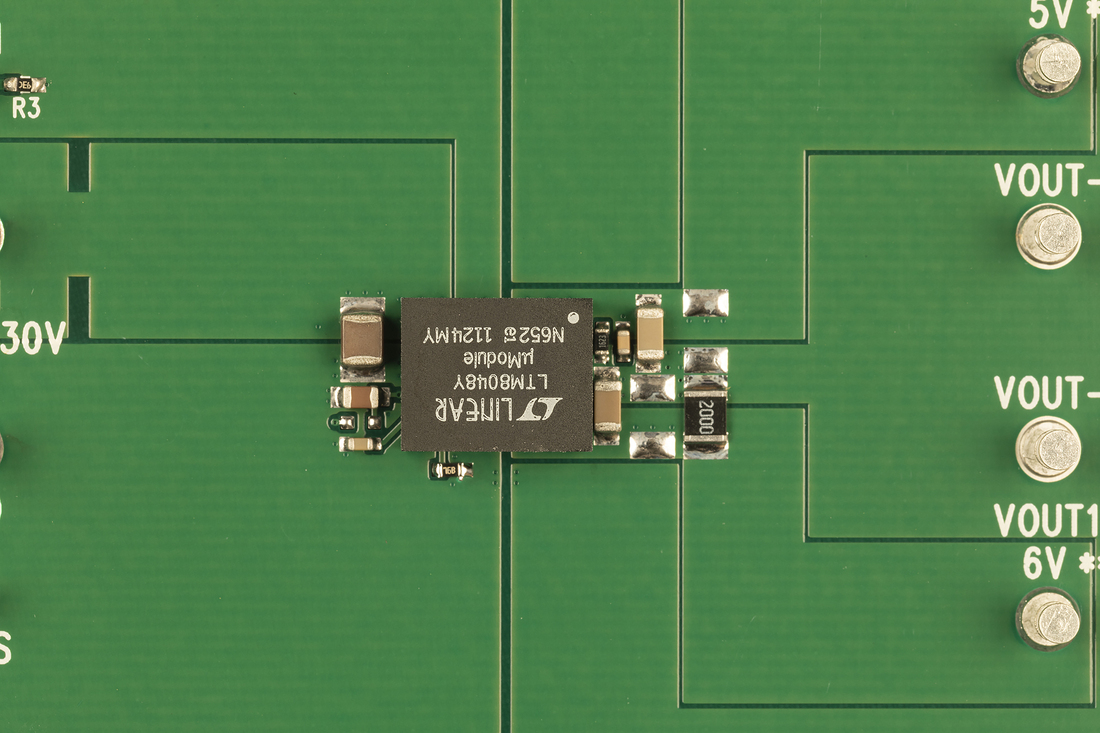

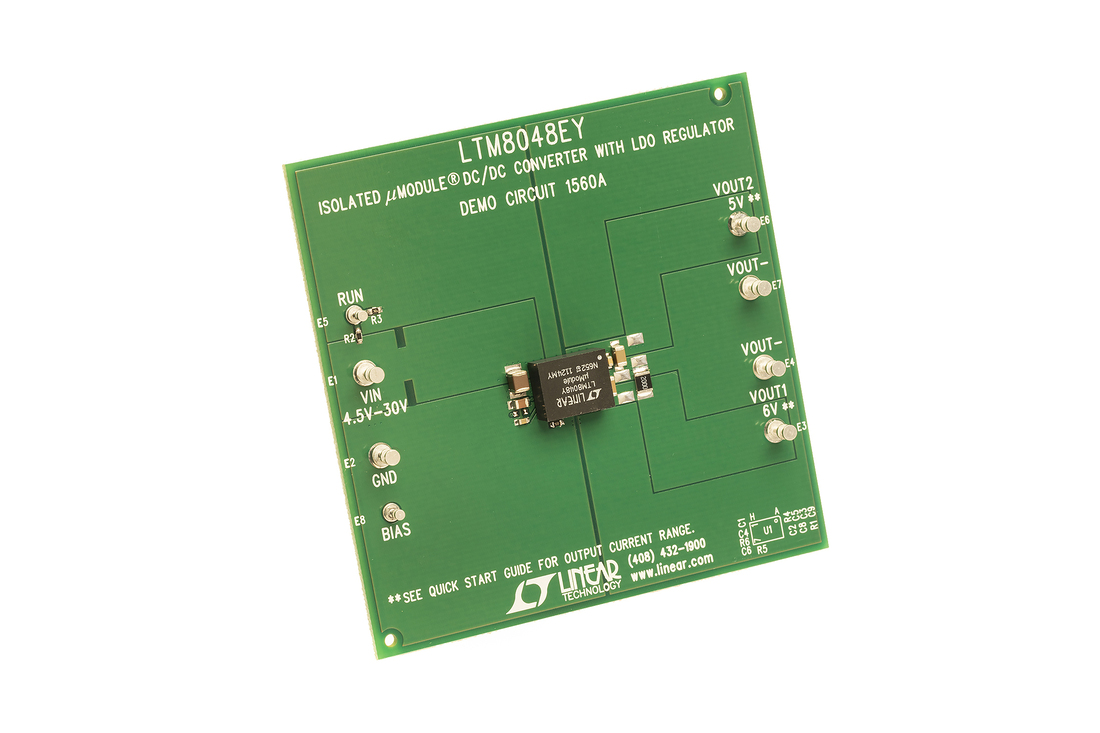

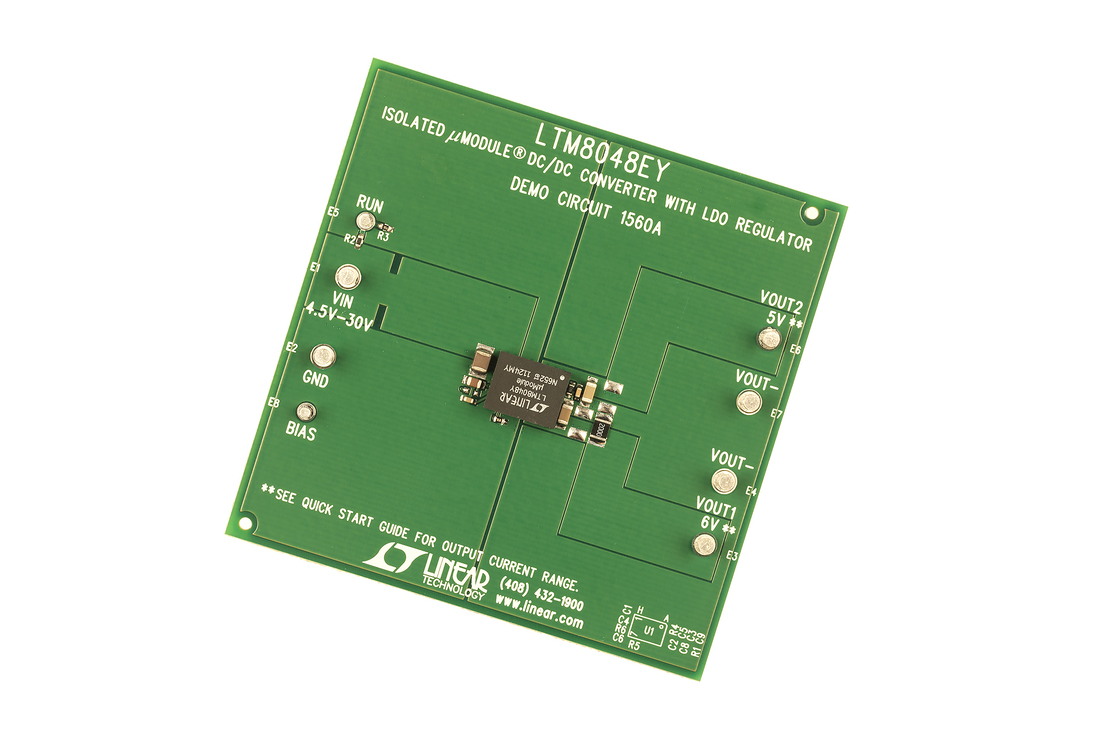

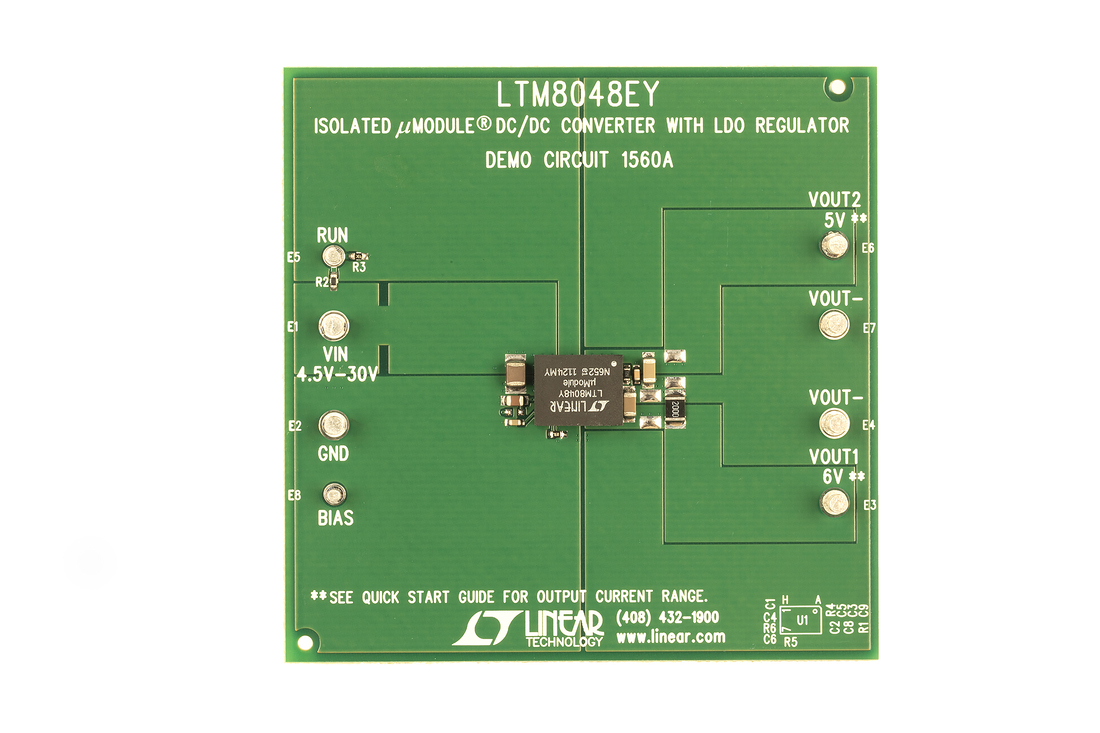

Demo circuit 1560A is an isolated flyback μModule® DC/DC converter with LDO post regulator featuring LTM8048. The demo circuit is designed for a 6V flyback output and a 5V post regulator output from a 4.5V to 30V input. The typical current capability of the 6V flyback output varies with input voltage from about 110mA at VIN = 4.5V to about 370mA at VIN = 30V. The circuit provides 725VDC isolation.
Markets and Technologies
Applicable Parts
Documentation & Resources
-

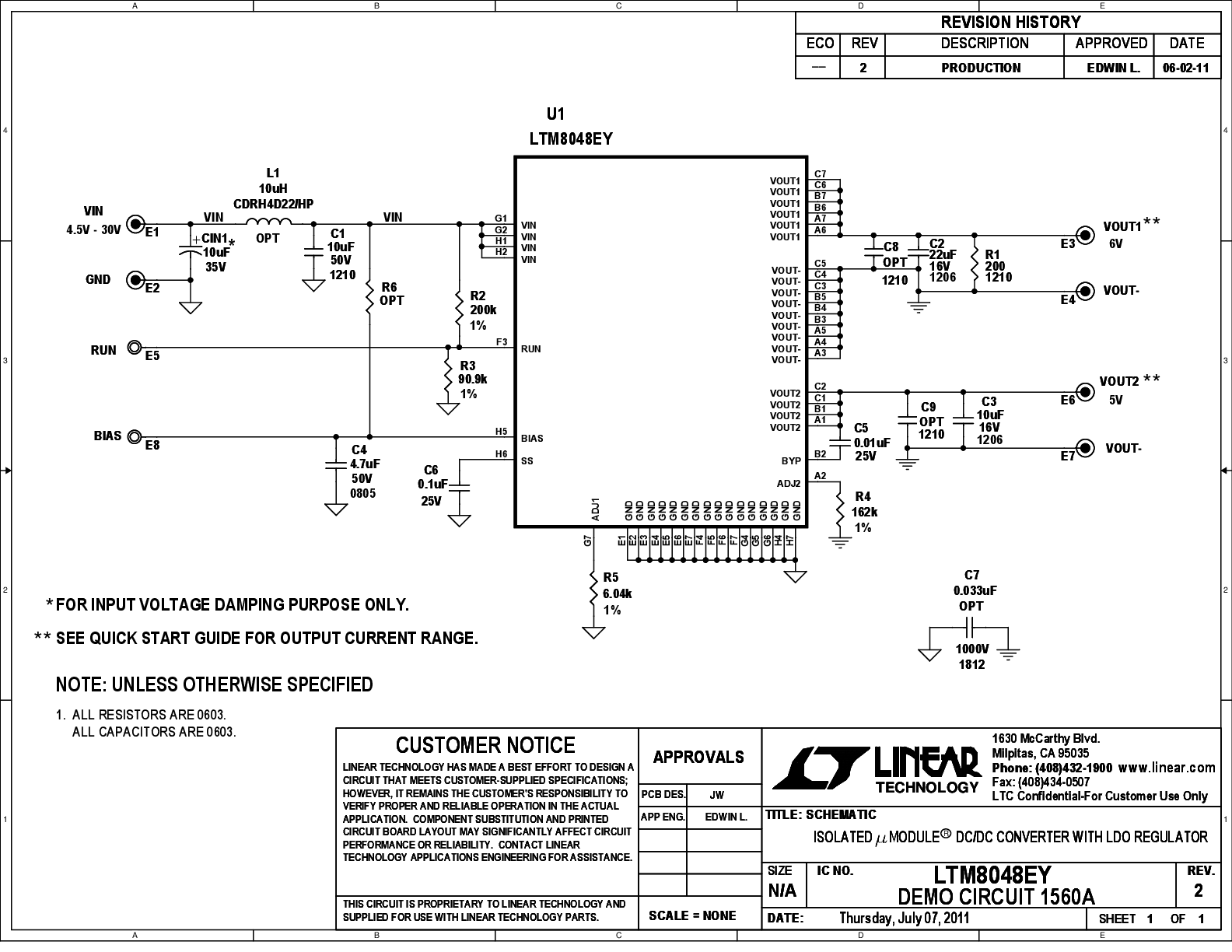

DC1560A - Schematic12/21/2011PDF42K
-
DC1560A - Demo Manual11/7/2011PDF216K
-
DC1560A - Design File11/7/2011ZIP845K
