DC1332A-D

OBSOLETE: LTC2631-HZ12 12-Bit I²C DAC (4.096V ref, Reset to Zero-Scale) (requires DC590B)

Top

Overview

This evaluation board is obsolete and no longer recommended. The replacement board is the DC1332B.

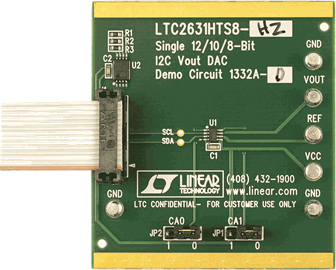

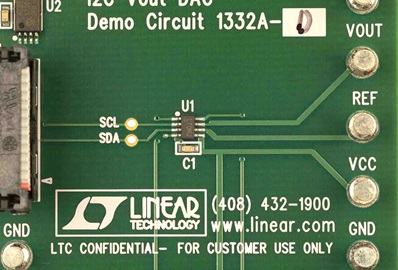

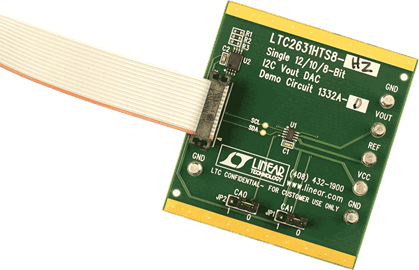

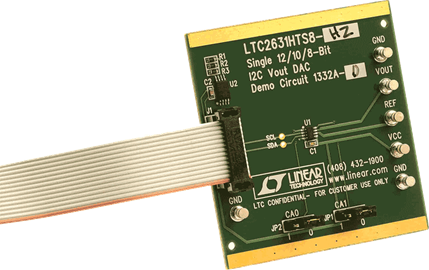

DC1332A-D: Demo Board for LTC2631 - Single 12-/10-/8-Bit I²C V_OUT DACs with 10ppm/°C Reference

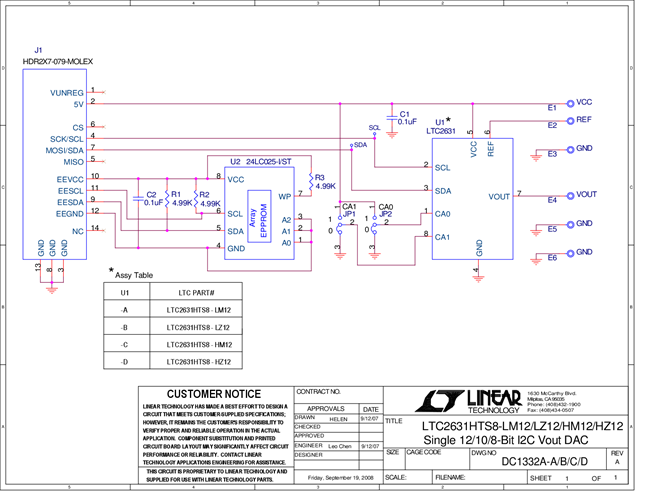

Demo Board Schematic

User Guide

Evaluation Design File
