DC1320A-B
LTC3609EWKG Demo Board | Monolithic, 5V ≤ VIN ≤ 28V, VOUT = 1.5V/1.8V/2.5V/3.3V @ 6A
Top
Overview
Product Details
Demonstration circuit 1320 is a high power density step-down DC/DC converter featuring the LTC3608EWKG (DC1320A-A) or the LTC3609EWKG (DC1320A-B) high current, high input voltage monolithic DC/DC step-down converter. The input voltage of the DC1320A-B is from 5V to 28V and it provides a jumper-selectable output voltage of 1.5V, 1.8V, 2.5V, or 3.3V @ 6A.
Applicable Parts
Documentation & Resources
-

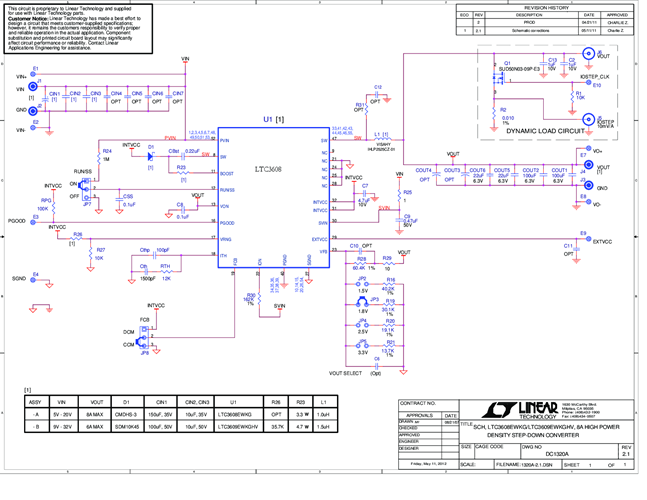

DC1320A - Schematic5/14/2012PDF36K
-
DC1320A - Demo Manual5/14/2012PDF178K
-
DC1320A - Design Files5/14/2012ZIP2M
