DC1297B
LTM4612EV Demo Board | EN55022B Compliant, 5V ≤ VIN ≤ 36V, VOUT = 3.3V or 5V @ 5A, or VOUT = 12V @ 3A
Top
Overview
Product Details

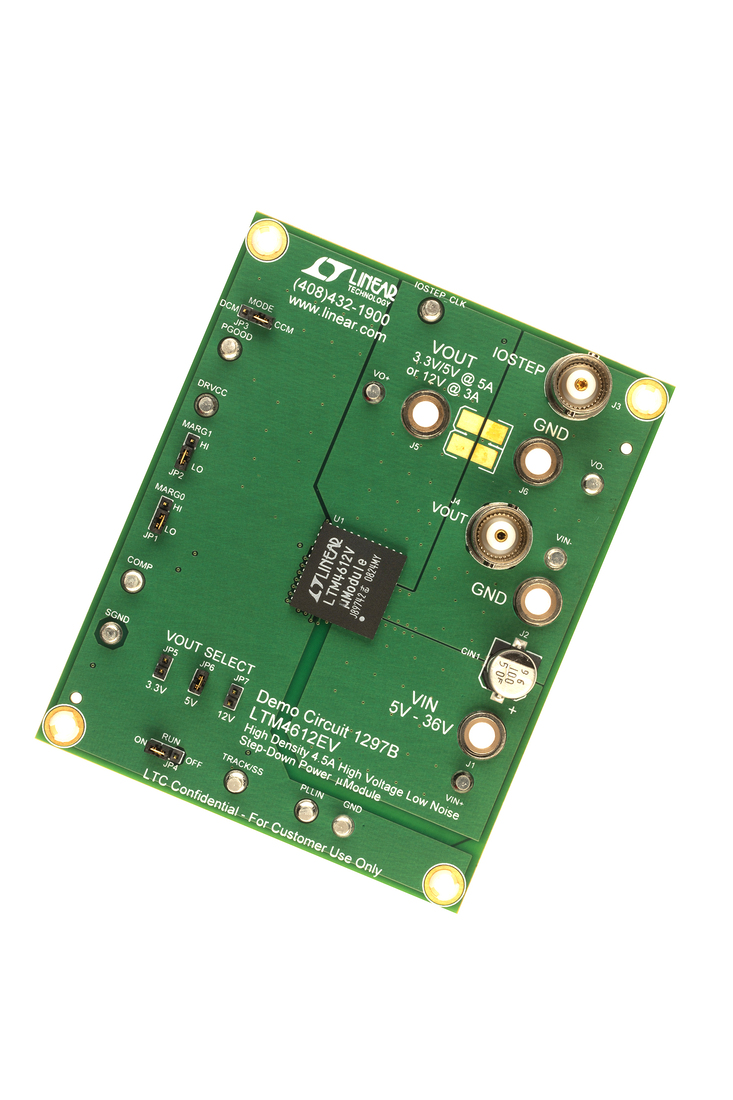

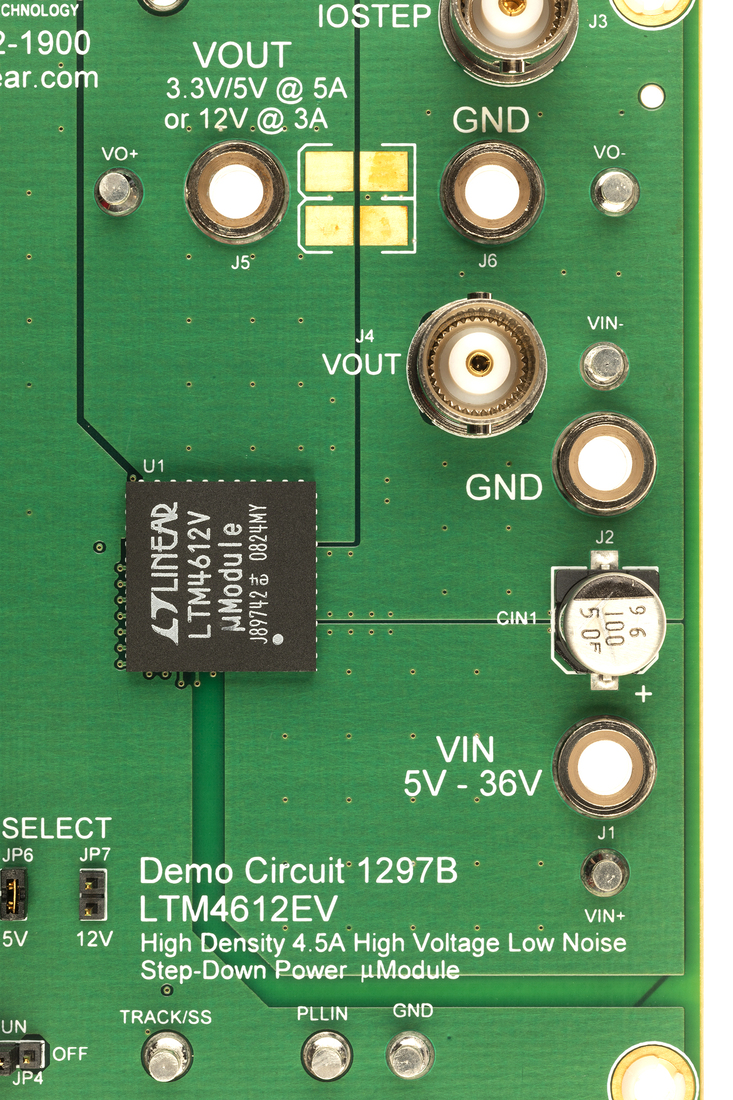

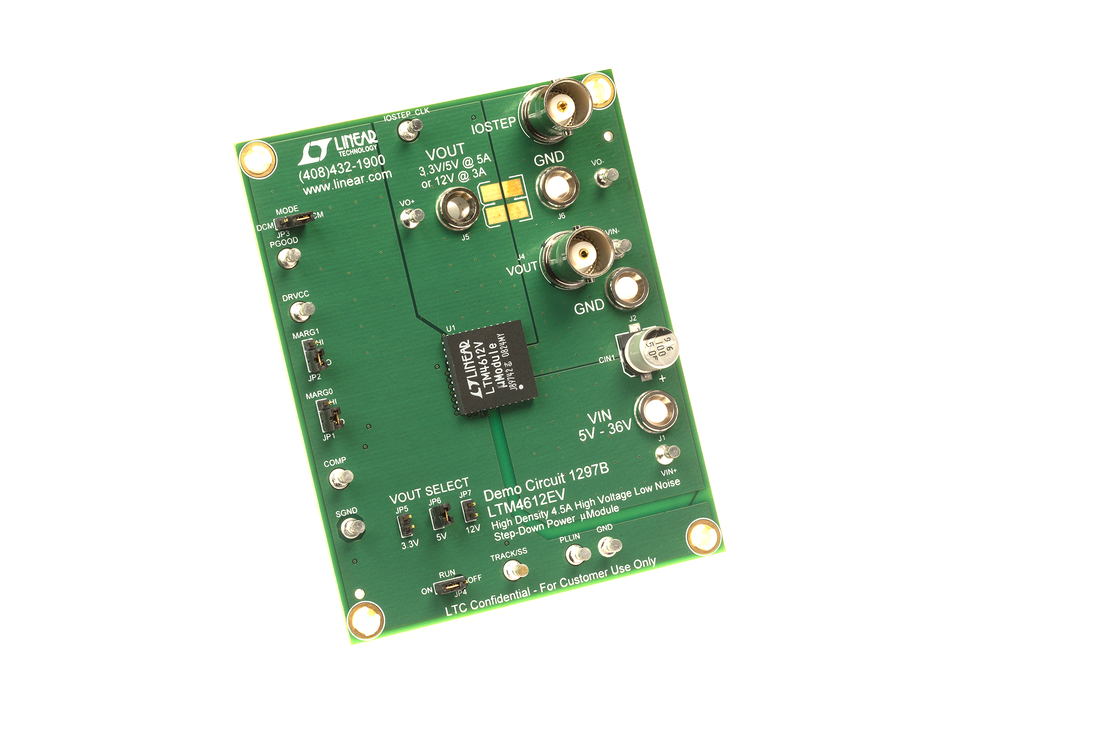

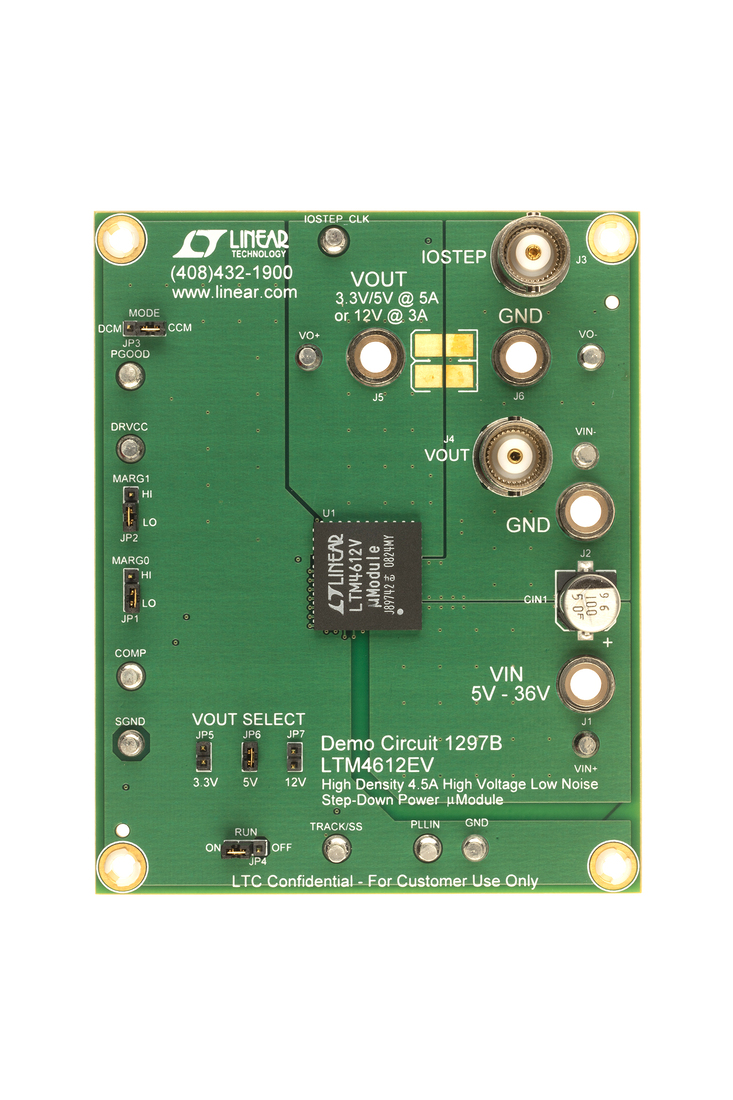

Demonstration circuit DC1297B features the LTM4612EV, an EN55022 Class B certified synchronous step-down power module. The board accepts an input voltage from 5V to 36V and delivers a jumper programmable output voltage of 3.3V, 5V or 12V. The rated load current is 5A for 3.3V and 5V output voltages, or 3A for a 12V output. Current derating is necessary for certain VIN, VOUT, and thermal conditions.
Markets and Technologies
Applicable Parts
Documentation & Resources
-

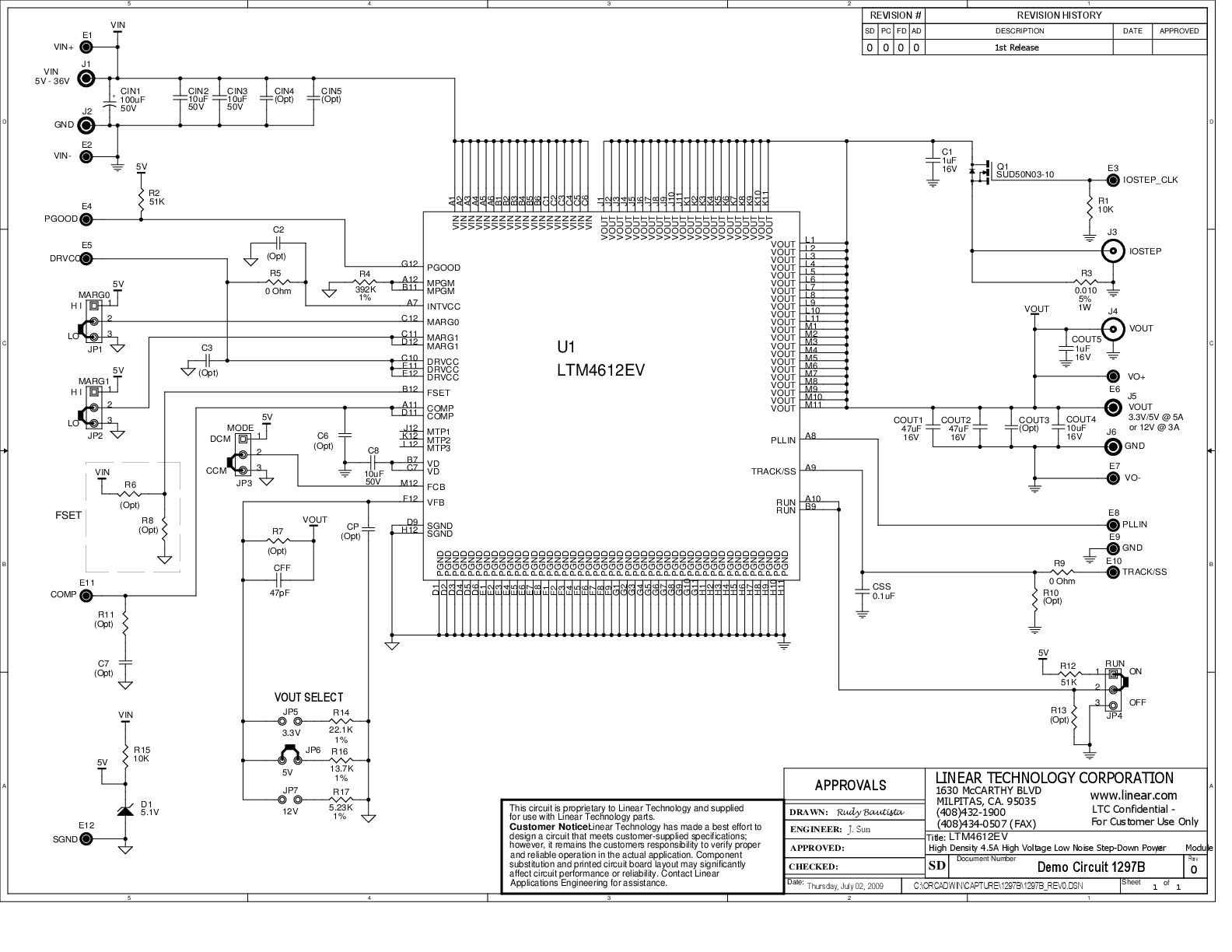

DC1297B - Schematic3/25/2010PDF93K
-
DC1297B - Demo Manual3/23/2011PDF3M
-
DC1297B - Design Files3/25/2010ZIP3M
