DC1292A
LTC3878EGN Demo Board | No Rsense, 4.5V ≤ VIN ≤ 14V, VOUT = 1.2V @ 18A
Top
Overview
Product Details
Demonstration circuit 1292 is a NO RSENSE synchronous step-down DC/DC controller featuring the LTC3878EGN. Its output supplies 1.2V @ 18A and its input voltage range is 4.5V to 14V.
Applicable Parts
Documentation & Resources
-

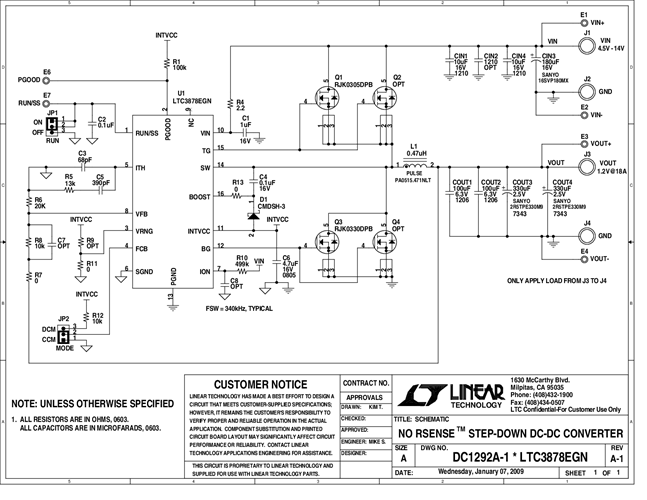

DC1292A - Schematic9/24/2009PDF33K
-
DC1292A - Demo Manual9/24/2009PDF931K
-
DC1292A - Design File9/24/2009ZIP967K
