DC1279A

Product Details

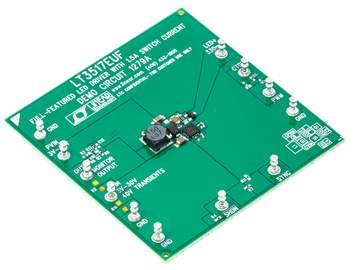

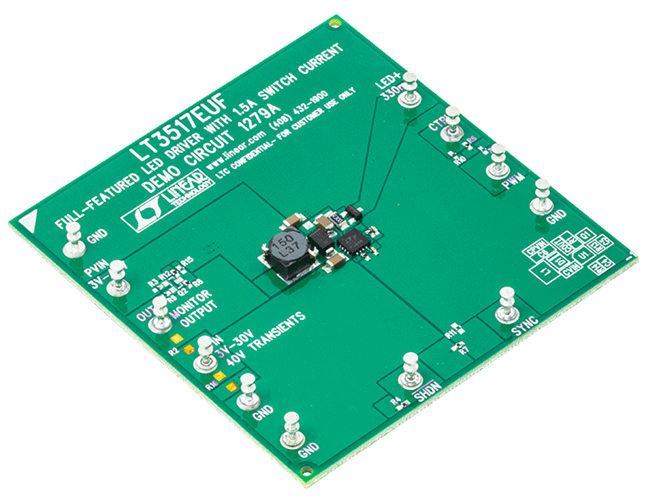

Demonstration Circuit 1279 is a full-featured, multitopology LED driver with 1.5A switch current featuring the LT3518. The board is optimized to drive a 330mA LED string with a total LED voltage between the input voltage and 40V in a boost topology. The input voltage range (VIN) is 3V to 30V, and the supply pin that powers the switcher (PVIN) has an input voltage range of 3V to 40V.
