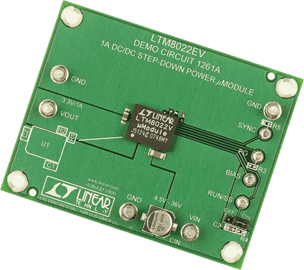

DC1261A
LTM8022 Demo Board | 4.5V ≤ VIN ≤ 36V, 3.3VOUT @ 1A DC/DC µModule Regulator
Top
Overview
Product Details
Demonstration circuit 1261A features the LTM8022 step-down μModule® regulator delivering a 3.3V/1A output from a 4.5V to 36V input supply. As a step-down converter, the LTM8022 requires a minimum amount of headroom to keep the output in regulation. Current sharing with another LTM8022 is enabled by tying the VIN, VOUT and SHARE pins together to support higher output loads.
Applicable Parts
Documentation & Resources
-
DC1261A - Schematic9/24/2009PDF25K
-
DC1261A - Demo Manual5/31/2011PDF976K
-
DC1261A - Design File9/24/2009ZIP0M
