DC1232A

LT3437IFE Demo Board | High Voltage 500mA 200kHz Buck Converter with Burst Mode

Top

Overview

Product Details

Product Details

DC1232A: Demo Board for the LT3437 - High Voltage 500mA, 200kHz Step-Down Switching Regulator with 100µA Quiescent Current

Applicable Parts

LT3437

Documentation & Resources

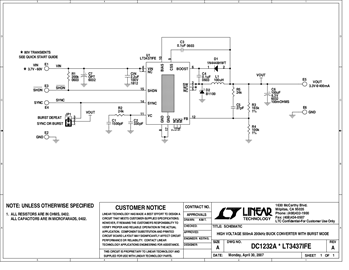

Demo Board Schematic

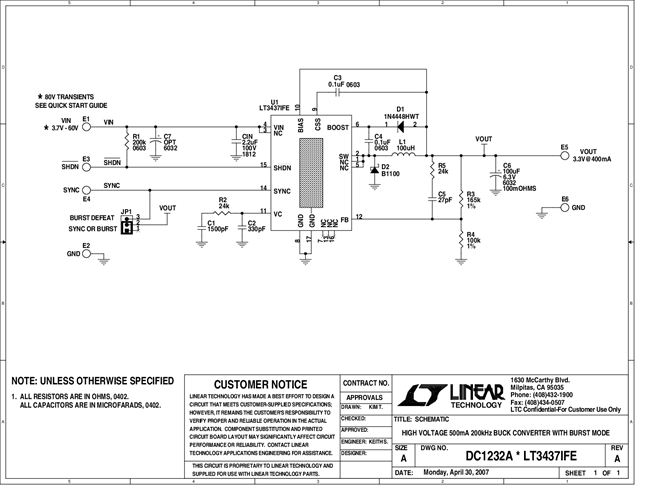

DC1232A - Schematic
9/24/2009

PDF

28K

User Guide

DC1232A - Demo Manual
9/24/2009

PDF

717K

Evaluation Design File

DC1232A - Design File
9/24/2009

ZIP

550K

Software

LTspice

LT3437 Demo Circuit - High Voltage 500mA, 200kHz, uPower Step-Down Regulator (24V to 3.3V @ 400mA)
