DC1149A

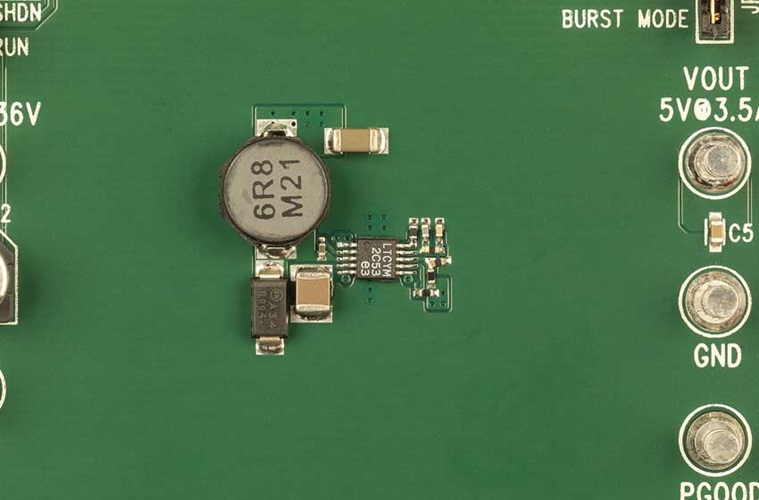

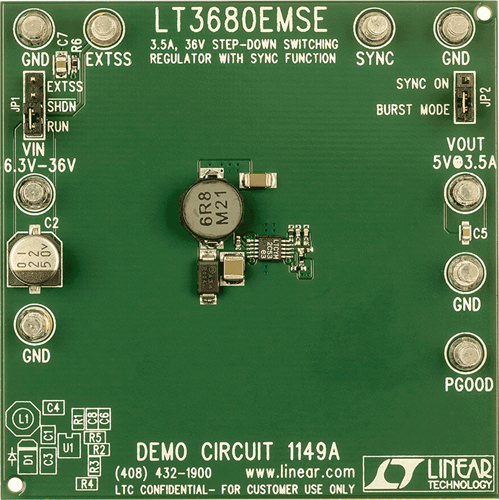

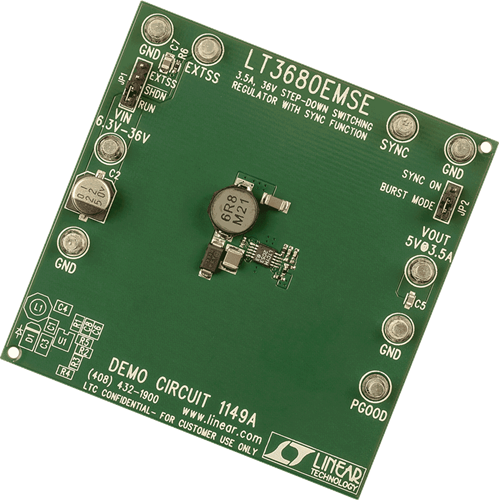

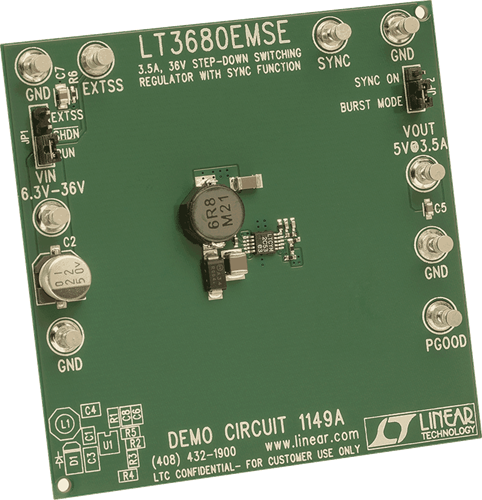

LT3680EMSE Demo Board | 6.3V ≤ VIN ≤ 36V, VOUT = 5V @ 3.5A
Top
Overview
Product Details
Demonstration circuit 1149 is a monolithic step-down DC/DC switching regulator featuring LT3680. The LT3680 can be synchronized over a 250 kHz to 2 MHz range. The demo board is designed for 5V/3.5A output from a 6.3V to 36V input.
Applicable Parts
Documentation & Resources
-

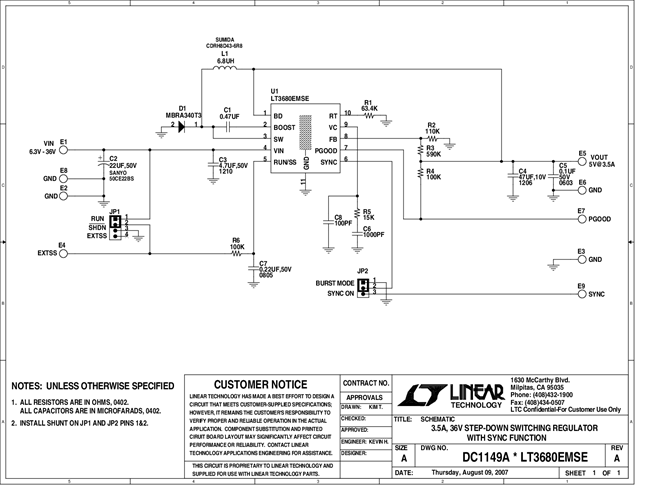

DC1149A - Schematic10/6/2009PDF29K
-
DC1149A - Demo Manual10/6/2009PDF669K
-
DC1149A - Design Files10/6/2009ZIP682K
