DC1040A-B

LTC3544BEUD Demo Board

Top

Overview

Product Details

Product Details

DC1040A-B: Demo Board for the LTC3544B Quad Synchronous Step-Down Regulator, 2.25MHz, 300mA, 200mA, 200mA and 100mA.

Applicable Parts

LTC3544B

Documentation & Resources

Demo Board Schematic

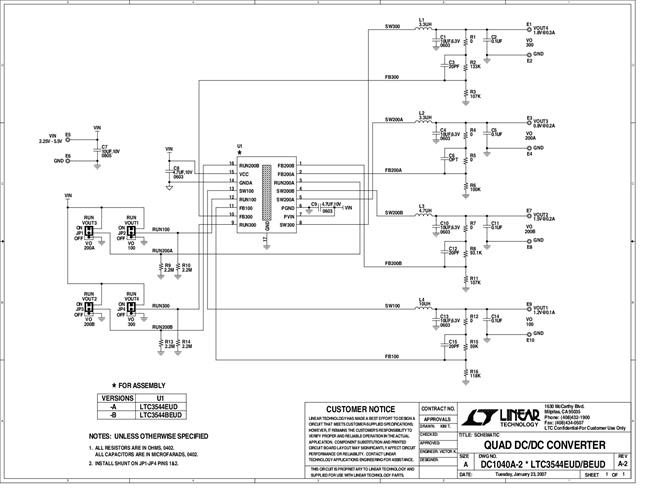

DC1040A - Schematic
9/24/2009

PDF

32K

User Guide

DC1040A - Demo Manual
9/24/2009

PDF

936K

Evaluation Design File

DC1040A - Design File
9/24/2009

ZIP

733K

Software

LTspice

LTC3544 Demo Circuit - Quad Synchronous 2.25MHz Step-Down Regulator (5V to 1.2V @ 100mA, 1.8V @ 300mA, 0.8V @ 200mA & 1.5V@200mA)
