Overview

Product Details

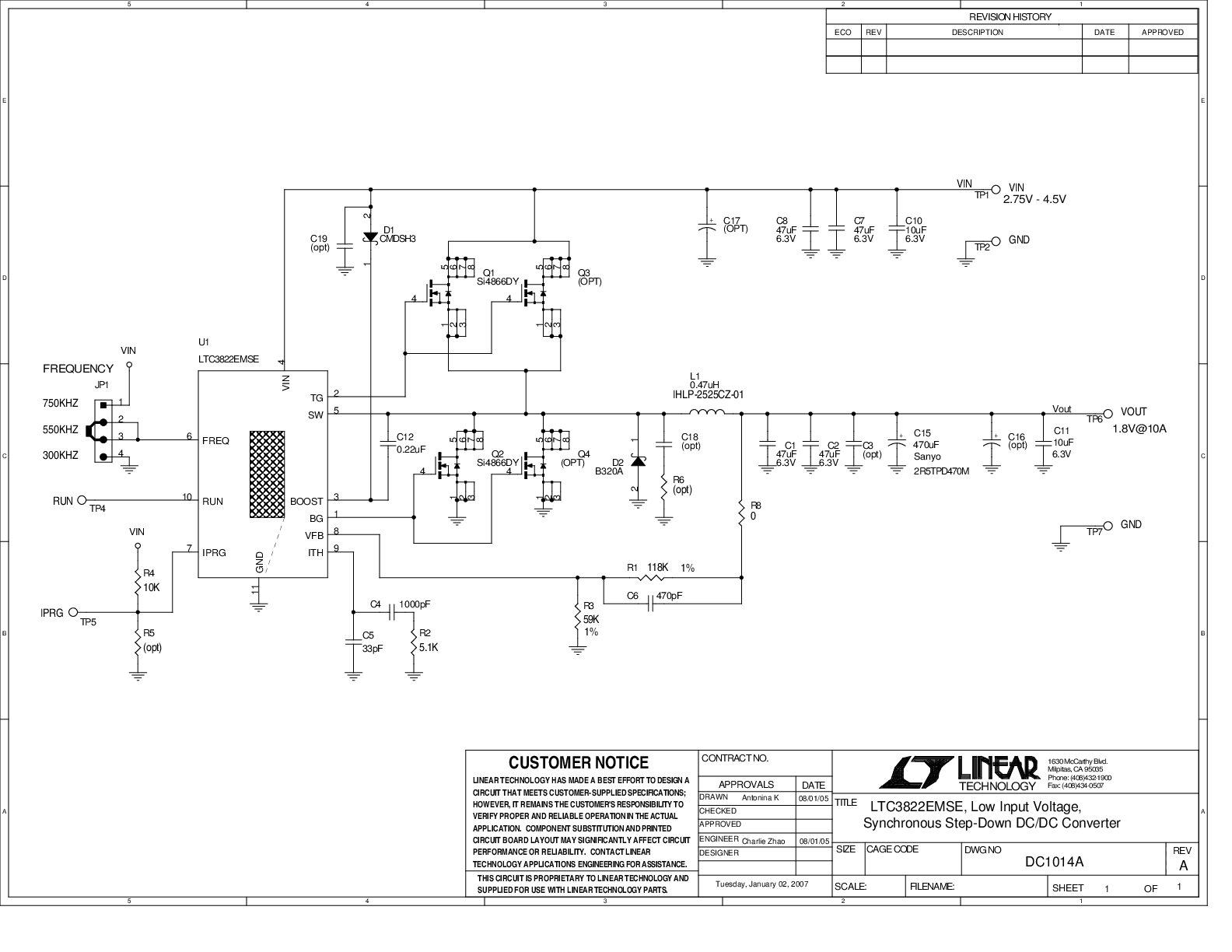

Demonstration circuit 1014A is a high efficiency synchronous step-down DC/DC converter featuring the LTC3822EMSE controller in the exposed pad MSOP package. The demo board is capable of providing 1.8V/10A from a 2.75V to 4.5V input.
