Overview

Features and Benefits

  • Operates from a 6.5V to 36V Input Supply
  • 5V Output Voltage
  • Delivers Up to 2.4A Output Current
  • 500kHz Switching Frequency
  • Enable/Undervoltage Lockout Input,Resistor–Programmable UVLO Threshold
  • Adjustable Soft-Start Time
  • Open-Drain RESET Output
  • Overcurrent and Overtemperature Protection
  • Proven Printed Circuit Board (PCB) Layout
  • Fully Assembled and Tested

Product Details

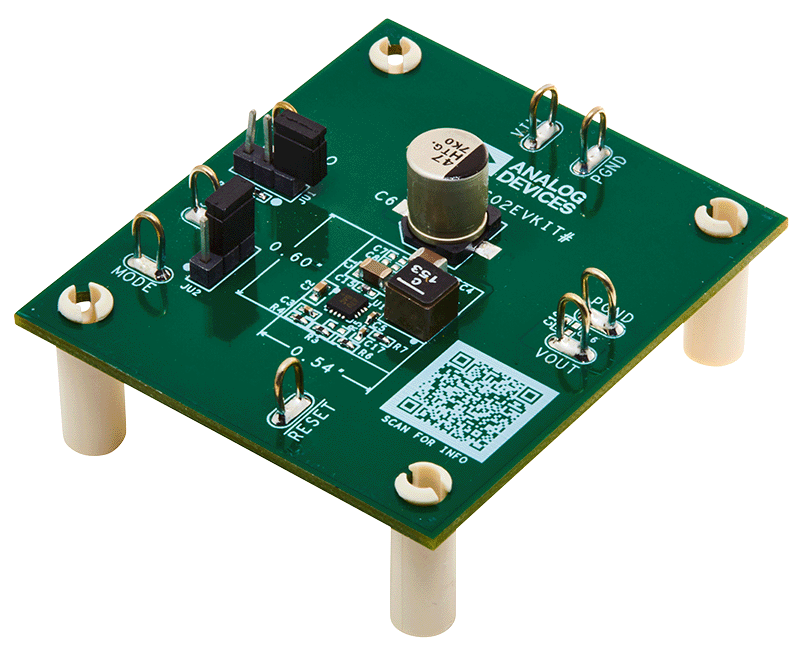

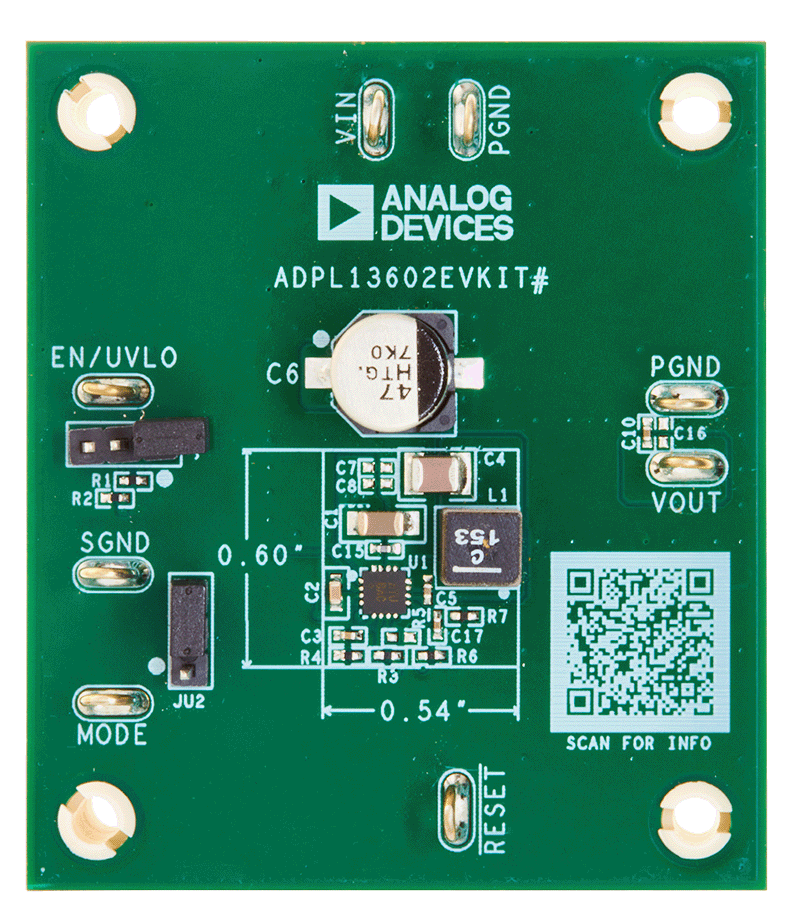

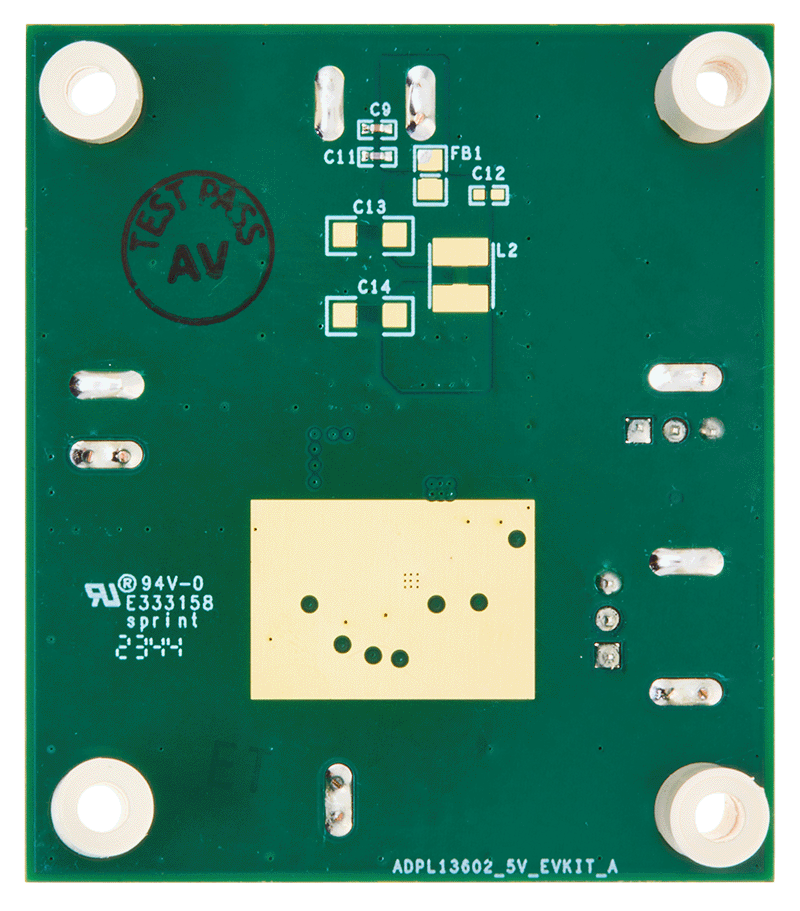

The ADPL13602EVKIT# evaluation kit (EV kit) provides a proven design to evaluate the ADPL13602 high-efficiency, synchronous step-down DC-DC converter. The EV kit provides 5V/2.4A at the output from a 6.5V to 36V input supply. The switching frequency of the EV kit is preset to 500kHz for optimum efficiency and component size. The EV kit features adjustable input undervoltage lockout, adjustable soft-start, and open-drain RESET signal. The EV kit also provides a good layout example, which is optimized for thermal performance. For more details about the IC benefits and features, refer to the ADPL13602 data sheet.

Applicable Parts

System Requirements

  • ADPL13602EVKIT#
  • 6.5V to 36V, 2.5A DC-input power supply
  • Load capable of sinking 2.4A
  • One digital voltmeter (DVM)
