EVAL-ADE9000
ADE9000 Evaluation Board
Top
Overview
Features and Benefits
- Full featured evaluation board for the ADE9000
- PC control in conjunction with the EVAL-SDP-CB1Z system
- demonstration platform (SDP) PC software for control and data analysis (time and
- frequency domain)
- Standalone capability
Product Details

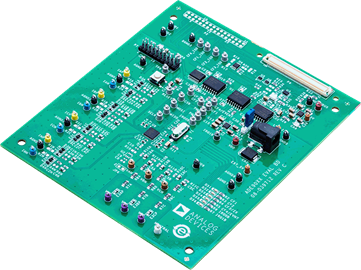

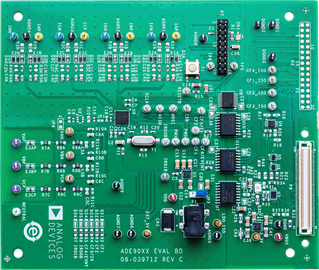

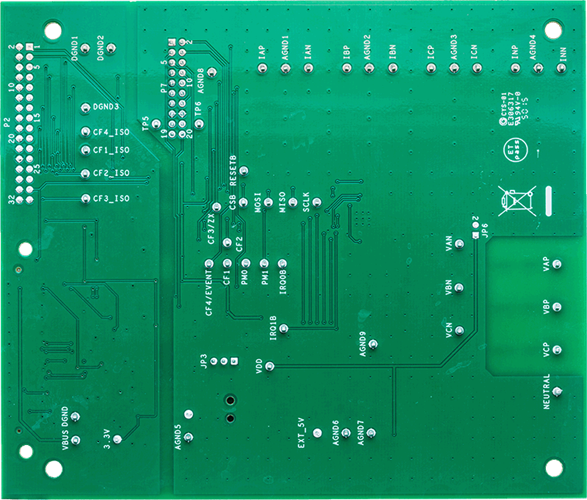

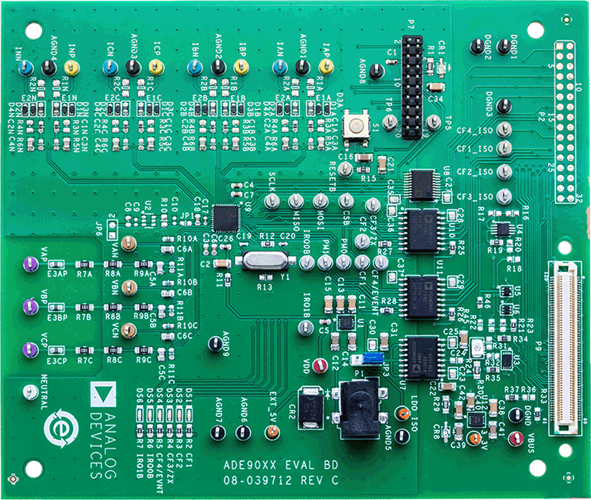

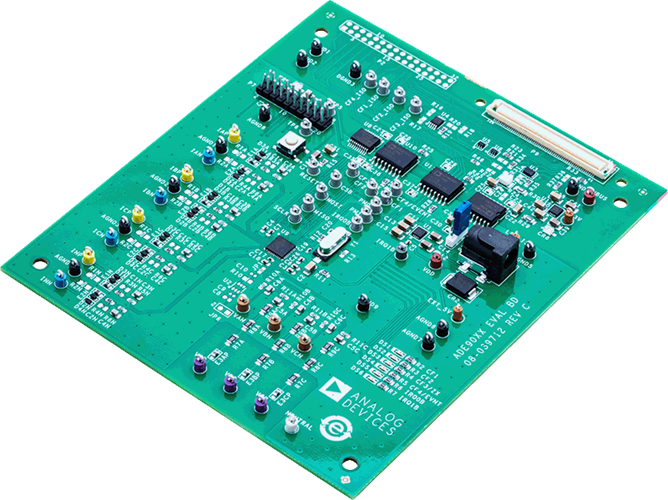

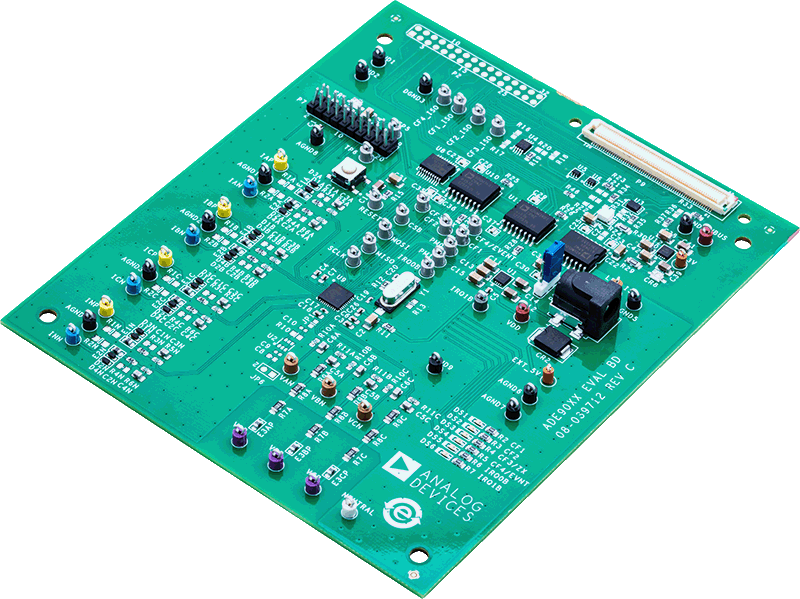

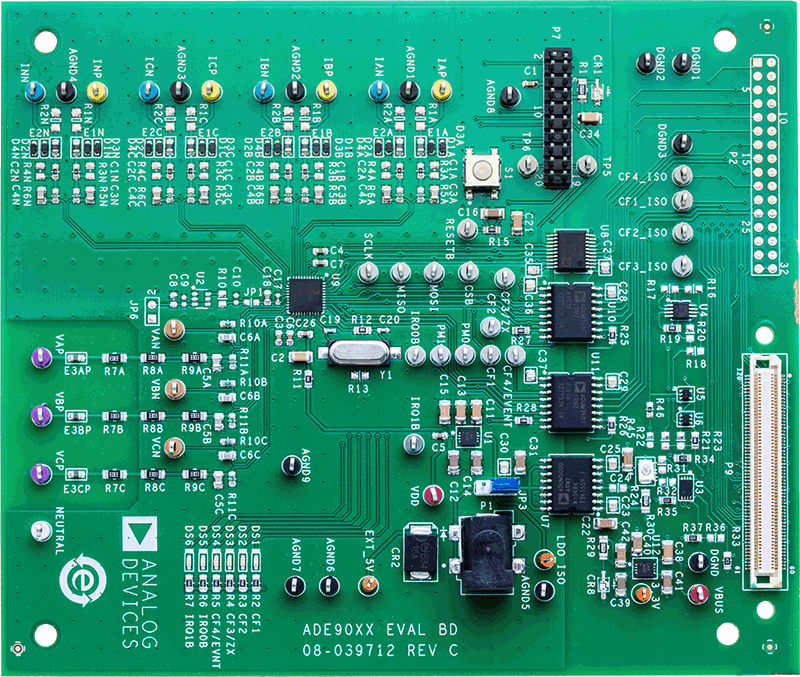

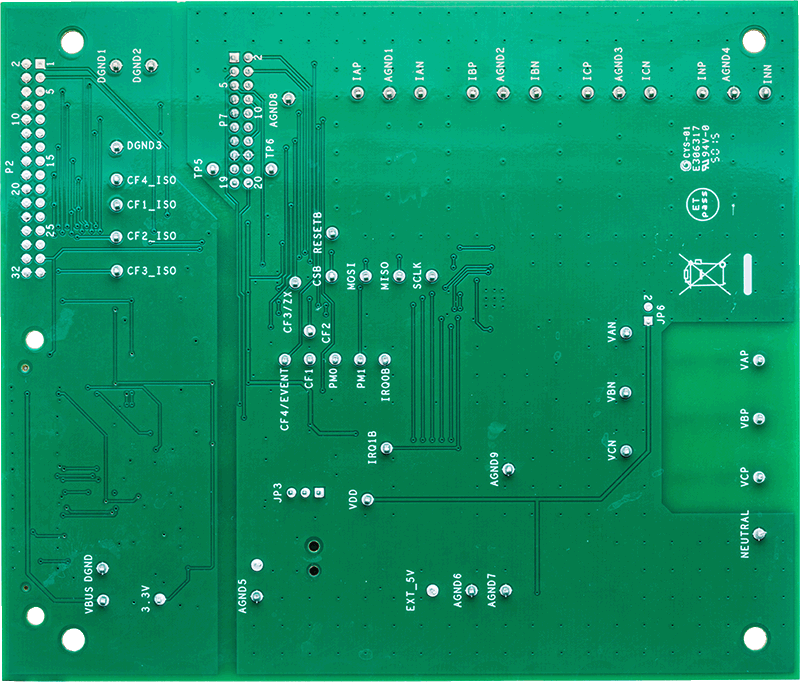

The EVAL-ADE9000EBZ evaluation board allows the performance of the ADE9000 energy monitoring IC to be evaluated in a context very similar to an actual power quality monitor. The kit requires purchasing a second board: the controller board for the system demonstration platform (EVAL-SDP-CB1Z) and current sensors. The ADE9000 evaluation kit includes evaluation software, written in LabVIEW®, which provides access to the registers and features of the device using a PC interface.Consult the ADE9000 data sheet in conjunction with this user guide when using the evaluation board.
Documentation & Resources
-
ADE9000 Calibration Tool1/30/2017ZIP837 K
-
UG-1098: ADE9000 Technical Reference Manual (Rev. 0)1/3/2018PDF1 M
-
UG-1170: ADE9000 Arduino-Compatible Energy and Power Quality Measurement Shield (Rev. 0)1/3/2018PDF413K
-
UG-1082: Evaluating the ADE9000 High Performance, Multiphase Energy, Power Quality Monitoring IC (Rev. 0)3/21/2017PDF1 M
