TMCS-40
RECOMMENDED FOR NEW DESIGNS10.000 lines A/B/N encoder with 40mm housing diameter for 6.35mm shaft diameter
- Part Models
- 2
- 1ku List Price
- price unavailable
Part Details
- Low cost
- High resolution
- Small dimension
- Easy mounting

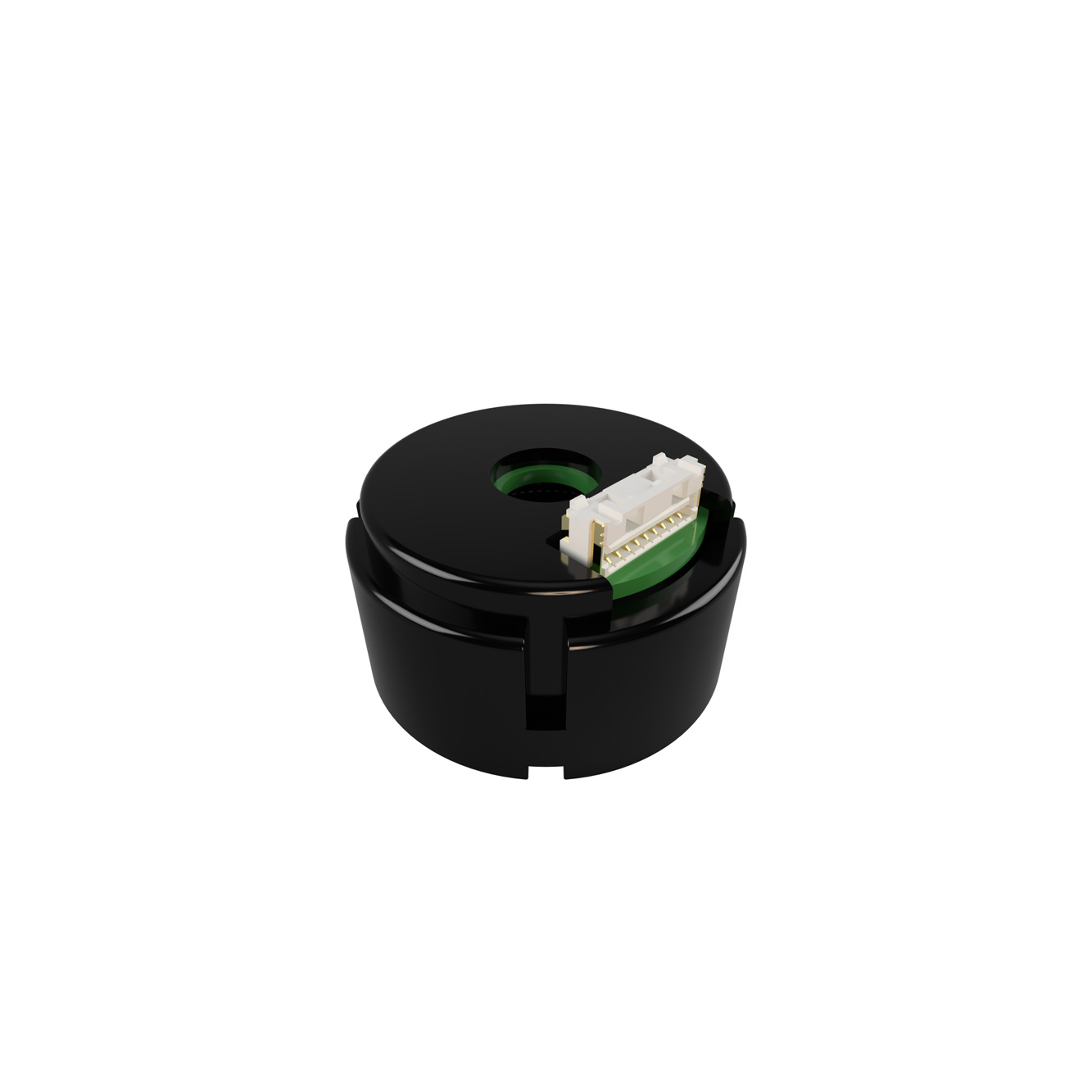

TMCS-40 is a low-cost and small-size optical incremental encoder for use with stepper motors and 3-phase PMSM/BLDC motors. It comes with high resolution optical code wheels with a resolution of up to 10K lines.
APPLICATIONS
- Stepper Motor FOC
- Servo Motors
- Precision Motion Control
- Automated Equipment
- Robotics
Documentation
Data Sheet 1
Application Note 1
