TMCM-3230
PRODUCTION3-axis plug-in stepper motor controller/driver module 9 to 28.5V, 1A, 256 µSteps, SixPoint ramp controller, with USB, CAN and RS485 Interface, StallGuard, CoolStep and StealthChop
- Part Models
- 2
- 1ku List Price
- price unavailable
Part Details
- 3-axes stepper motor controller / driver
- Supply Voltage +12 to +24V DC
(9V to 28.5V max) - CAN, UART and USB interfaces
- TMCL or CANopen protocol
- Integrated SixPoint™ ramp motio controller
- StealthChop™ silent PWM mode
- SpreadCycle™ smart mixed decay
- StallGuard2™ load detection
- CoolStep™ automatic current scaling

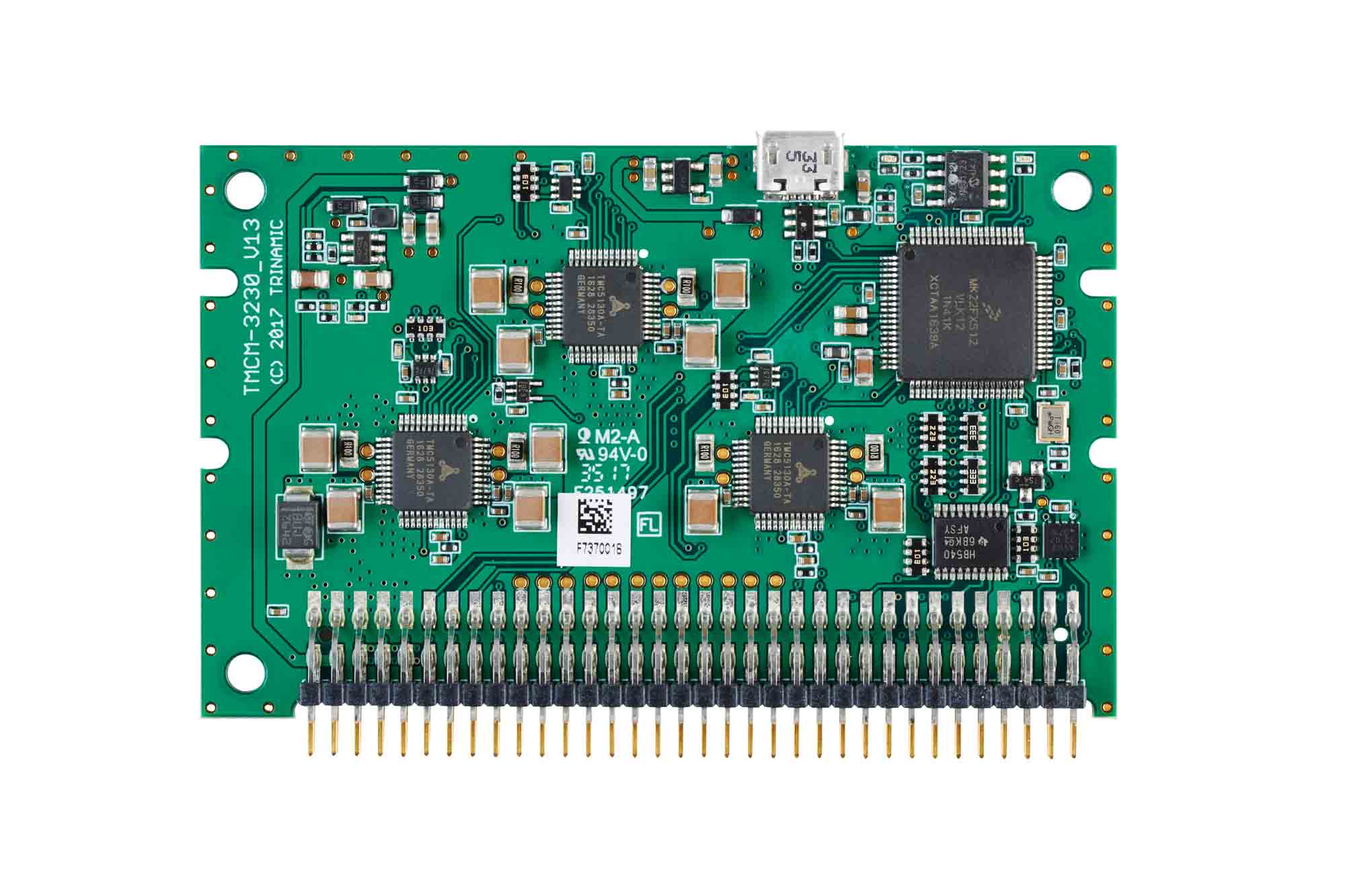

The TMCM-3230 is a compact and easy to use 3-axes stepper motor controller and driver unit for embedded applications. It offers CAN bus, UART and USB interfaces for communication and supports stand-alone operation, also. The TMCM-3230 features StealthChop™ for absolute silent motor control, SpreadCycle™ for high speed stepper motor commutation, a fully integrated hardware motion controller with SixPoint™ motion ramps, as well as StallGuard2™ and CoolStep™.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
APPLICATIONS
- Laboratory Automation
- Manufacturing
- Semiconductor Handling
- Robotics
- Factory Automation
- Test & Measurement
- Life Science
- Biotechnology
- Liquid Handling
Technical Details
| TMCM-3230-CANopen | TMCM-3230-TMCL | |
| Status | Active | Active |
| Axes | 3 | 3 |
| Motor Supply | 9 to 28.5V | 9 to 28.5V |
| Phase Current, RMS | 1.0A | 1.0A |
| Microsteps | 1 to 256 | 1 to 256 |
| CAN | ✓ | ✓ |
| UART | ✓ | ✓ |
| USB | ✓ | ✓ |
| GPIO | ✓ | ✓ |
| CANopen | ✓ | |
| TMCL™ | ✓ | |
| SixPoint™ | ✓ | ✓ |
| Trapezoidal | ✓ | ✓ |
| Microstep Table | ✓ | ✓ |
| MicroPlyer™ | ✓ | ✓ |
| ChopSync™ | ✓ | ✓ |
| CoolStep™ | ✓ | ✓ |
| Passive Braking | ✓ | ✓ |
| Short Detection | ✓ | ✓ |
| SpreadCycle™ | ✓ | ✓ |
| Stall Detection | ✓ | ✓ |
| StallGuard2™ | ✓ | ✓ |
| StealthChop™ | ✓ | ✓ |
| Width | 80mm | 80mm |
| Length | 50mm | 50mm |
| Height | 6mm | 6mm |
Documentation
User Guide 1
Software Manual 2
Product Information 1
