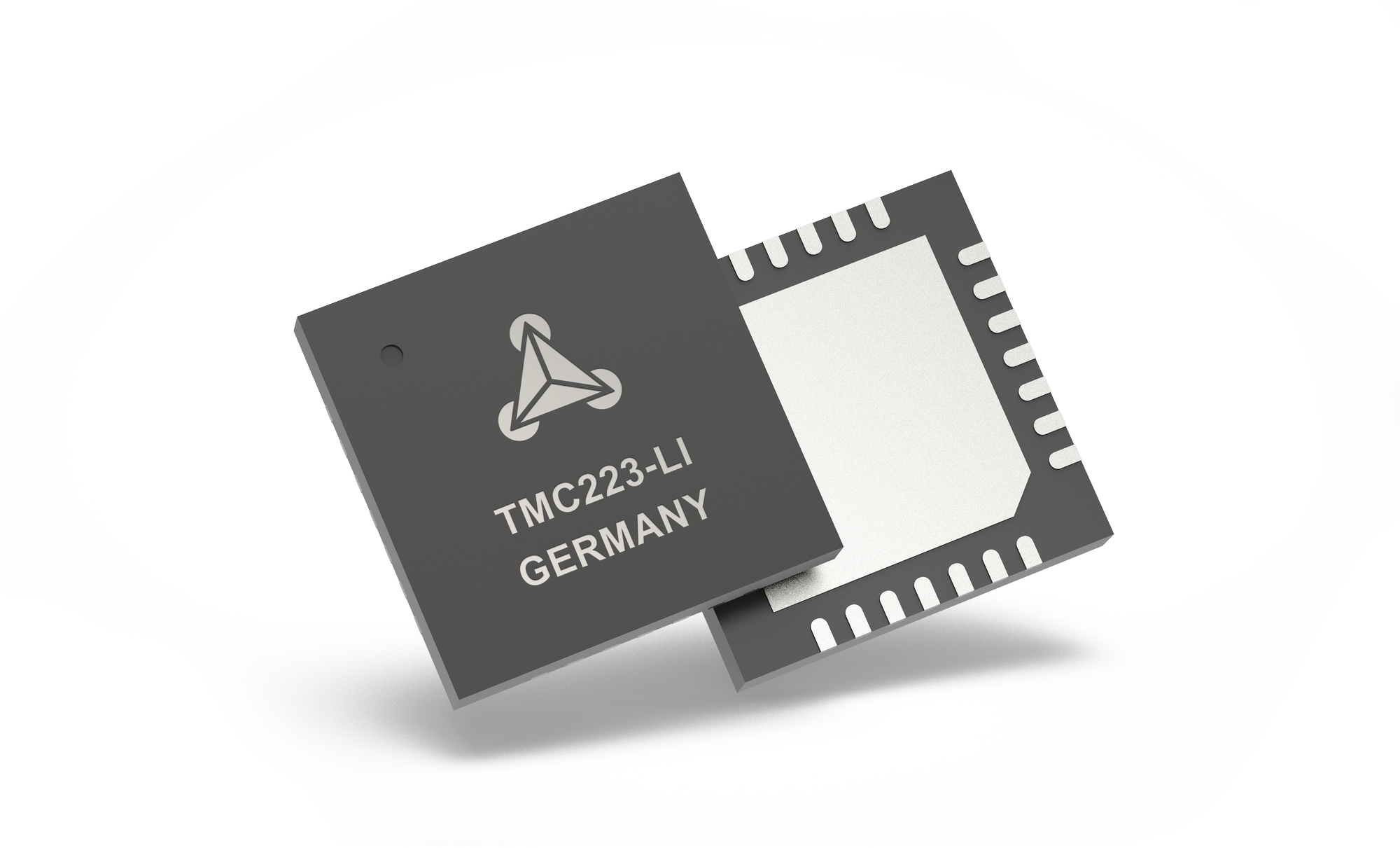

TMC223
OBSOLETE PRODUCT
Part Details
- Controls one stepper motor with four bit micro stepping
- Programmable Coil current up to 800 mA / Supply voltage range operating range 8V to 29V
- Fixed frequency PWM current control with automatic selection of fast and slow decay mode
- Full step frequencies up to 1 kHz
- High temperature, open circuit, short, over-current and under-voltage diagnostics
- Internal 16-bit wide position counter
- Configurable speed and acceleration settings
- Build-in ramp generator for autonomous positioning and speed control
- On-the-fly alteration of target position
- Reference switch input available for read out
- Transfer rates up to 350 kbps
- Diagnostics and status information as well as motion parameters accessible
- Field-programmable node addresses (32)
- GetFullStatus1 & GetFullStatus2 with parameters concerning stall detection
- SetStallParam to set stall detection parameters
The TMC223 is a combined micro-stepping stepper motor motion controller and driver with RAM and OTP memory and integrated sensorless stall detection. The RAM or OTP memory is used to store motor parameters and configuration settings. The TMC223 allows up to four bit of micro stepping and a coil current of up to 800 mA. After initialization it performs all time critical tasks autonomously based on target positions and velocity parameters. Communications to a host takes place via a two wire serial interface. Together with an inexpensive micro controller the TMC223 forms a complete motion control system. The TMC223 is fully upwards compatible to the TMC222.
Documentation
Data Sheet 1
This is the most up-to-date revision of the Data Sheet.
