MAX9643
60V High-Speed Precision Current-Sense Amplifier
Industry's Fastest Current-Sense Amplifier Also Offers Outstanding 130µV VOS Precision
Part Details
- Supports High-Voltage Applications
- Wide Input VCM = -1.5V to +60V
- Delivers High-Speed Operation
- 15MHz Bandwidth
- Increases System Accuracy
- Precision VOS = 130µV (max)
- -40°C to +125°C Specified Temperature Range

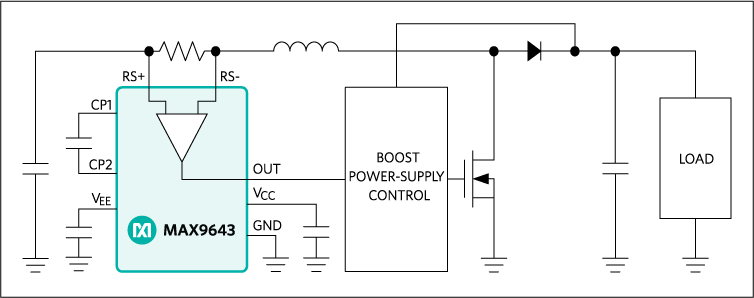

The MAX9643 is a high-speed 60V precision unidirectional current-sense amplifier ideal for a wide variety of power-supply control applications. Its high signal bandwidth allows its use within DC-DC switching converter power-supply control loops with minimal phase delay.
The IC also features 130µV (max) precision input offset voltage, allowing small sense resistors to be used in applications where efficiency is important and when wide dynamic-range current measurement is needed.
High DC CMRR and AC CMRR make it easy to use in a wide variety of aggressive environments. The device is available in fixed gains of 2.5V/V and 10V/V. It is also available in a small, 8-pin TDFN (2mm x 3mm) package and is rated over the -40°C to +125°C temperature range.
Applications
- GSM Base Station Power Supply
- H-Bridge Motor Control
- High-Brightness LED Control
- Industrial Power Supplies
Documentation
Data Sheet 1
Reliability Data 1
This is the most up-to-date revision of the Data Sheet.
