MAX3272A

NOT RECOMMENDED FOR NEW DESIGNS

+3.3V, 2.5Gbps Low-Power Limiting Amplifiers

Data Sheet (Rev. 3)
Part Models
2
1ku List Price
price unavailable
Viewing:

Part Details

  • Single +3.3V Power Supply
  • 33mA Supply Current
  • 5ps Deterministic Jitter
  • 90ps Edge Speed
  • Output Squelch Function
  • Programmable Loss-of-Signal Function
  • CML Output Interface
  • 20-Pin 4mm x 4mm QFN Package
  • Selectable Output Polarity
    • MAX3272A
    +3.3V, 2.5Gbps Low-Power Limiting Amplifiers

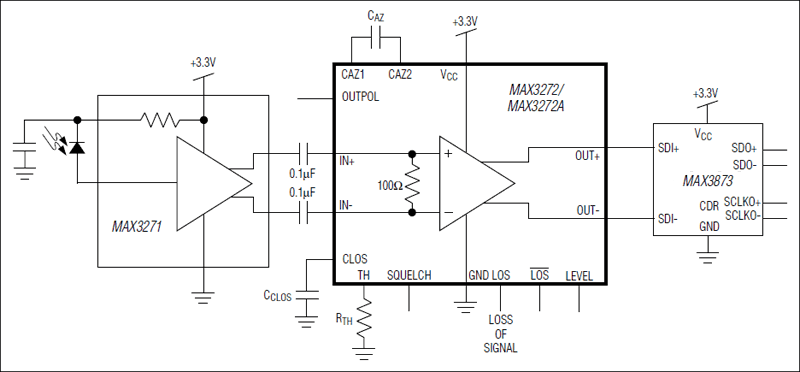

    MAX3272, MAX3272A: Typical Operating Circuit
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project
    Ask a Question

    Documentation

    Data Sheet 1

    Reliability Data 1

    Learn More
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project

    Evaluation Kits

    MAX3272EVKIT

    Evaluation Kit for the MAX3272

    Buy Now View Details

    Features and Benefits

  • Single +3.3V Power Supply
  • Fully Assembled and Tested
  • Includes Calibration Strip for Accurate Measurements
  • EV Kit Designed for 50Ω Interfaces
  • Easy LOS Threshold Programming
  • Easy Output Polarity Control

    • Product Details

    The MAX3272 evaluation kit (EV kit) is fully assembled and tested to provide easy evaluation of the MAX3272 3.3V, 2.5Gbps low-power limiting amplifier. The EV kit also includes a calibration strip to enable accurate jitter and edge speed measurements.

    Applications

    • 2.5Gbps Optical Receivers
    • Fibre Channel Optical Receivers
    • Gigabit Ethernet Optical Receivers
    • SONET/SDH Receivers
    • System Interconnects

    MAX3272AEVKIT

    Evaluation Kit for the MAX3272A

    Buy Now View Details

    Features and Benefits

    • Single +3.3V Power Supply
    • Fully Assembled and Tested
    • Includes Calibration Strip for Accurate Measurements
    • EV Kit Designed for 50Ω Interfaces
    • Easy LOS Threshold Programming
    • Easy Output Polarity Control

    Product Details

    The MAX3272A evaluation kit (EV Kit) is fully assembled and tested to provide easy evaluation of the MAX3272A +3.3V, 2.5Gbps low power limiting amplifier. The EV Kit also includes a calibration strip for accurate measurements.

    Applications

    • 2.5Gbps Optical Receivers
    • Fibre Channel Optical Receivers
    • Gigabit Ethernet Optical Receivers
    • SONET/SDH Receivers
    • System Interconnects
    MAX3272EVKIT
    Evaluation Kit for the MAX3272
    MAX3272AEVKIT
    Evaluation Kit for the MAX3272A
