MAX20361

RECOMMENDED FOR NEW DESIGNS

Small, Single-/Multi-Cell Solar Harvester with MPPT and Harvest Counter

World's Smallest Solar Harvester Increases Runtime and Reduces Size of Solar-Powered Devices

Data Sheet (Rev. 5) Product Selection Table
Part Models
8
1ku List Price
Starting From $2.64
Viewing:

Part Details

  • Single-/Multi-Cell Solar Energy Harvester
    • 225mV to 2.5V (typ) Input-Voltage Range
    • Efficient Harvesting from 15μW to Over 300mW of Available Input Power
      • 86% Efficiency at VSYS = 3.8V, ISRC = 30mA
    • Small Solution Size
      • Utilizes Small 2016 4.7μH Inductor
  • Maximum Power Point Tracking (MPPT) Technique Using Fractional VOC Method
    • Programmable Fractional VOC Regulation Point through I2C Interface
  • Battery/Supercapacitor Charger
    • Programmable Battery Termination Voltage through I2C Interface
    • Programmable Power Good Wake-Up Signal Output Threshold through I2C Interface
MAX20361
Small, Single-/Multi-Cell Solar Harvester with MPPT and Harvest Counter

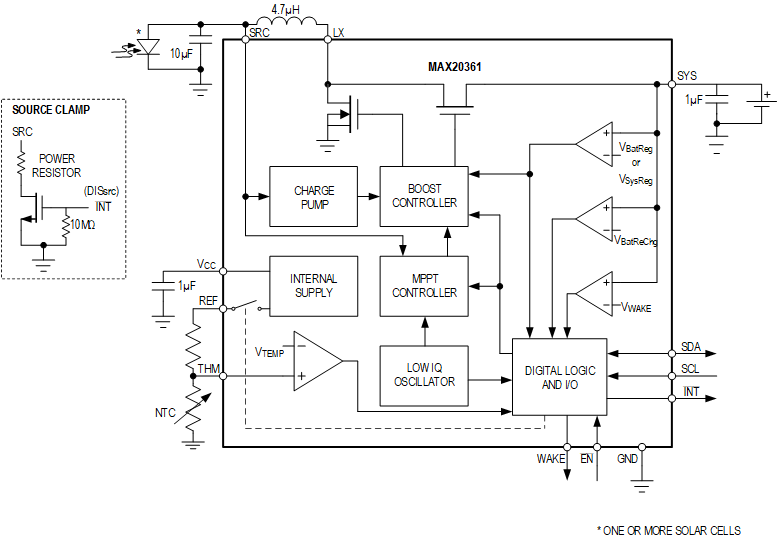

MAX20361 Simplified Block Diagram MAX20361 Typical Application Circuit MAX20361 Bump Configuration
