MAX15037
2.2MHz, 3A Buck or Boost Converters with an Integrated High-Side Switch
2.2MHz, High Switching Frequency, DC-DC Converters Deliver Up to 3A
Part Details
- 4.5V to 5.5V or 5.5V to 23V Input Voltage Range
- Output Voltage Adjustable Down to 0.6V (Buck) or Up to 28V (Boost)
- 3A Output Current
- Synchronous Rectifier Driver Output (MAX15037) for Higher Efficiency
- Resistor-Programmable Switching Frequency from 200kHz to 2.2MHz
- External Synchronization and Enable (On/Off) Inputs
- Clock Output for Driving Second Converter 180° Out-Of-Phase (MAX15036)
- Integrated 150mΩ High-Side n-Channel Power MOSFET
- Power-On-Reset Output (MAX15036)/Power-Good Output (MAX15037)
- Short-Circuit Protection (Buck)/Maximum Duty-Cycle Limit (Boost)
- Thermal-Shutdown Protection

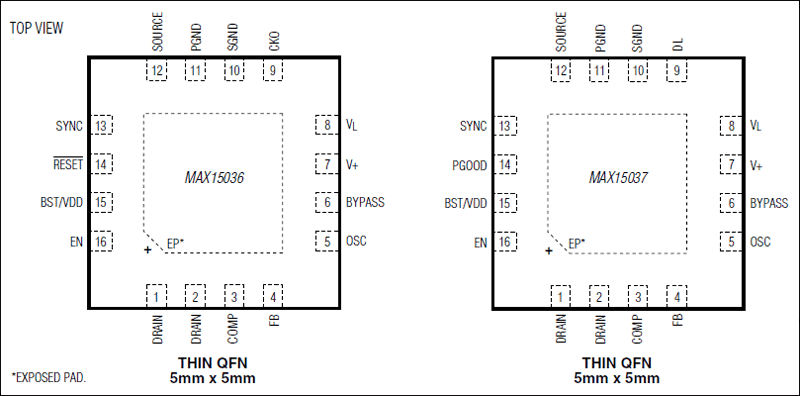

- Thermally Enhanced 16-Pin TQFN Package Dissipates 2.7W
The MAX15036/MAX15037 high-frequency, DC-DC converters with an integrated n-channel power MOSFET provide up to 3A of load current. The MAX15036 includes an internal power MOSFET to enable the design of a nonsynchronous buck or boost topology power supply. The MAX15037 is for the design of a synchronous buck topology power supply. These devices operate from a 4.5V to 5.5V or 5.5V to 23V input voltage and offer the ability to set the switching frequency from 200kHz to 2.2MHz with an external resistor. The voltage-mode architecture with a peak switch current-limit scheme provides stable operation up to a 2.2MHz switching frequency. The MAX15036 includes a clock output for driving a second DC-DC converter 180° out-of-phase and a power-on-reset (active-low RESET) output. The MAX15037 includes a power-good output and a synchronous rectifier driver to drive an external low-side MOSFET in the buck converter configuration for high efficiency.
The MAX15036/MAX15037 protect against overcurrent conditions by utilizing a peak current limit as well as overtemperature shutdown providing a very reliable and compact power source for point-of-load regulation applications. Additional features include synchronization, internal digital soft-start, and an enable input. The MAX15036/MAX15037 are available in a thermally enhanced, space-saving 16-pin TQFN (5mm x 5mm) package and operate over the -40°C to +125°C temperature range.
Applications
- Automotive Radio Power Supplies
- IP Phones/WLAN Access Points
- Servers and Networks
- xDSL Modem Power Supplies
