LTC1064-4
PRODUCTIONLow Noise, 8th Order, Clock Sweepable Cauer Lowpass Filter
- Part Models
- 3
- 1ku List Price
- Starting From $18.33
Part Details
- 8th Order Filter in a 14-Pin Package
- 80dB or More Stopband Attenuation
at 2 x fCUTOFF - 50:1 fCLK to fCUTOFF Ratio (Cauer)
- 100:1 fCLK to f-3dB Ratio (Transitional)
- 135µVRMS Total Wideband Noise
- 0.03% THD or Better
- 100kHz Maximum fCUTOFF Frequency
- Operates up to ±8V Power Supplies
- Input Frequency Range up to 50 Times the Filter Cutoff Frequency

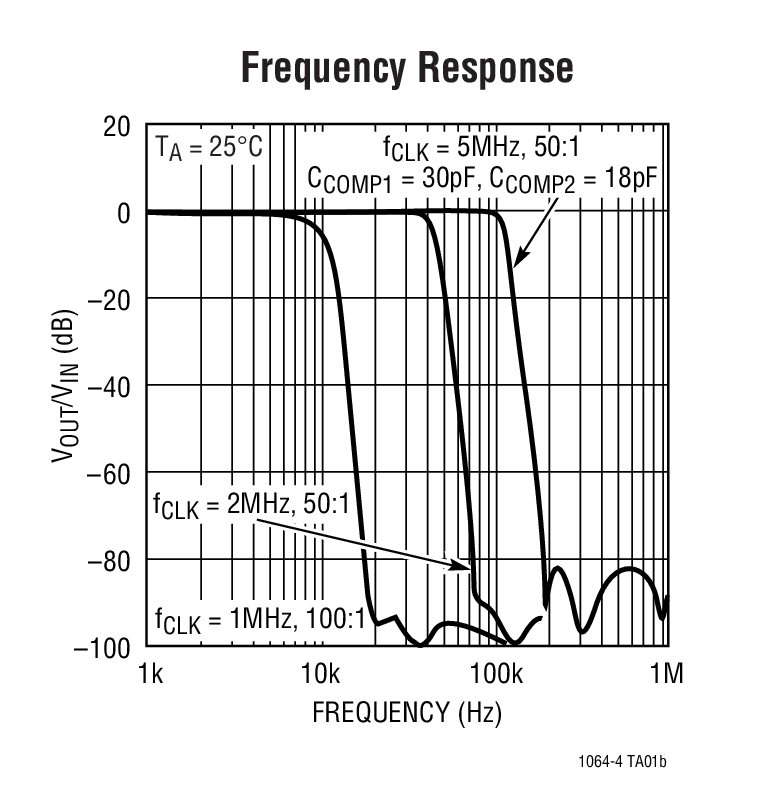

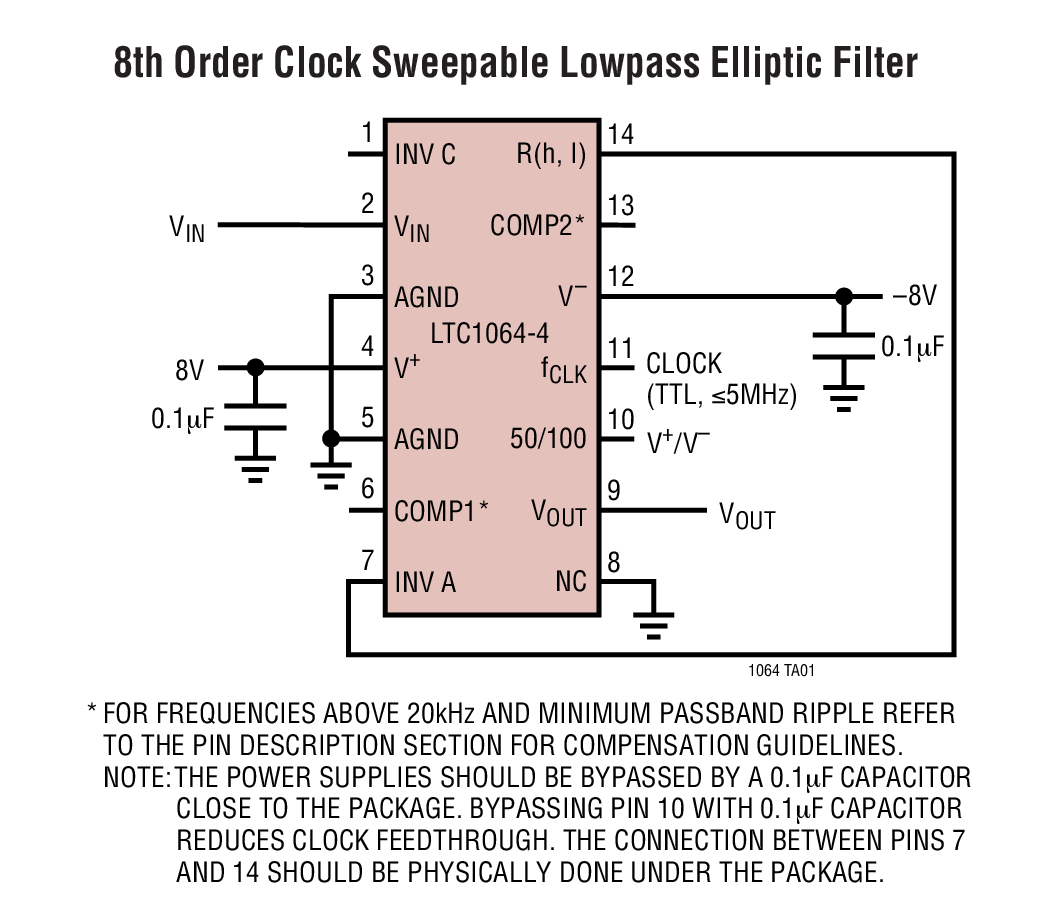

The LTC1064-4 is an 8th order, clock sweepable Cauer lowpass switched capacitor filter. An external TTL or CMOS clock programs the value of the filters cutoff frequency. With Pin 10 at V+, the fCLK to fCUTOFF ratio is 50:1; the filter has a Cauer response and with compensation the passband ripple is ±0.1dB. The stopband attenuation is 80dB at 2 × fCUTOFF. Cutoff frequencies up to 100kHz can be achieved. With Pin 10 at V-, the fCLK to f-3dB ratio is 100:1, the filter has a transitional Butterworth-Cauer response with lower noise and lower delay nonlinearity than the Cauer response. The stopband attenuation at 2.5 × f-3dB is 92dB. Cutoff frequencies up to 50kHz can be achieved.
The LTC1064-4 features low noise and low harmonic distortion even when input voltages up to 3VRMS are applied. The LTC1064-4 overall performance competes with equivalent multiple op amp active realizations. The LTC1064-4 is pin compatible with the LTC1064-1, LTC1064-2 and LTC1064-3.
The LTC1064-4 is manufactured using our enhanced LTCMOSTM silicon gate process.
Applications
- Antialiasing Filters
- Telecom Filters
- Sinewave Generators
Documentation
Data Sheet 1
Reliability Data 1
Application Note 1
Design Note 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|

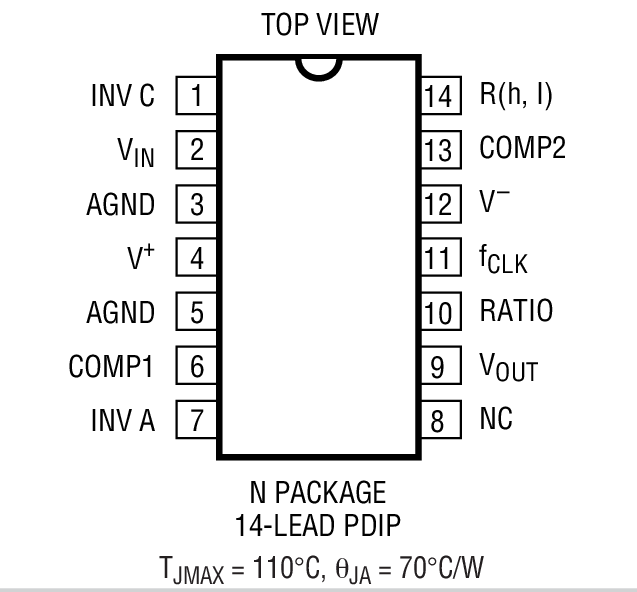

| LTC1064-4CN#PBF | 14-Lead PDIP (Narrow 0.3 Inch) | ||

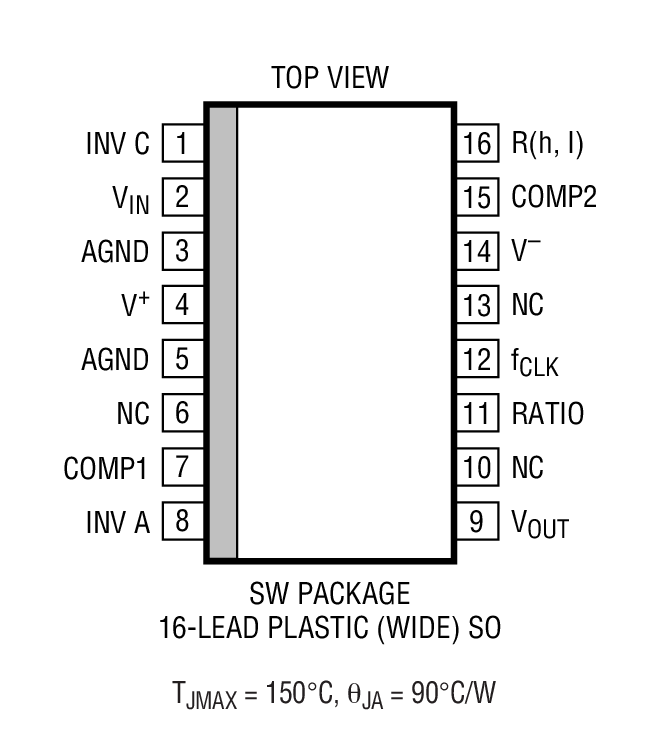

| LTC1064-4CSW#PBF | 16-Lead SOIC (Wide 0.3 Inch) | ||
| LTC1064-4CSW#TRPBF | 16-Lead SOIC (Wide 0.3 Inch) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package |
||
| LTC1064-4CN#PBF | PRODUCTION | |
|
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG] |
||
| LTC1064-4CN#PBF | PRODUCTION | |
|
Aug 10, 2022 - 22_0176 Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL |
||
| LTC1064-4CSW#PBF | ||
| LTC1064-4CSW#TRPBF | ||
This is the most up-to-date revision of the Data Sheet.
Hardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Silicon Oscillators 2 | ||
| LTC6900 | PRODUCTION | Low Power, 1kHz to 20MHz Resistor Set SOT-23 Oscillator |
| LTC6930-X.XX | 32.768kHz to 8.192MHz Precision µPower Oscillators | |
