LT3060

RECOMMENDED FOR NEW DESIGNS

45V V_IN, Micropower, Low Noise, 100mA Low Dropout, Linear Regulator

Data Sheet (Rev. D) Product Selection Table

Part Models: 104
1ku List Price: Starting From $1.49

Viewing:

Part Details

Input Voltage Range: 1.6V to 45V
Output Current: 100mA
Quiescent Current: 40μA

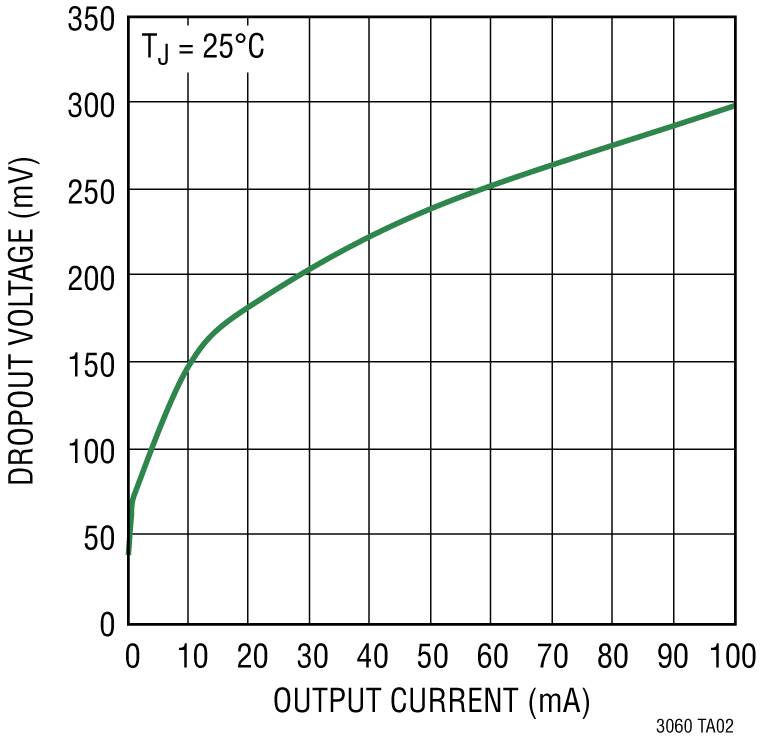

Dropout Voltage: 300mV
Low Noise: 30μV_RMS (10Hz to 100kHz)
Adjustable Output: V_REF = 600mV
Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, 15V
Output Tolerance: ±2% Over Line, Load and Temperature

Single Capacitor Soft-Starts Reference and Lowers Output Noise
Shutdown Current: < 1μA
Reverse Battery Protection
Current Limit Foldback Protection
Thermal Limit Protection

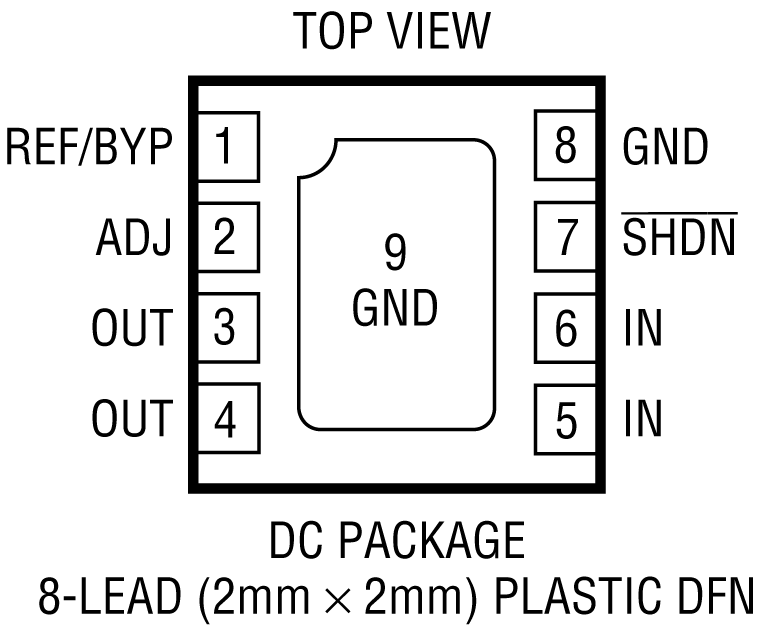

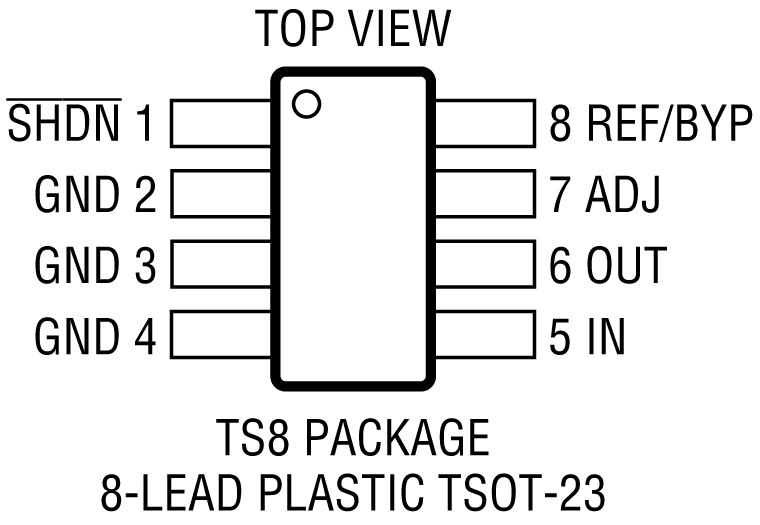

8-Lead 2mm × 2mm × 0.75mm DFN and 8-Lead ThinSOT^™ Packages
AEC-Q100 Qualified for Automotive Applications

Part Models: 104
1ku List Price: Starting From $1.49

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT3060EDC#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC#WTRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC#WTRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-1.2#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-1.2#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-1.5#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-1.5#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-1.8#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-1.8#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-15#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-15#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-2.5#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-2.5#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-3.3#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-3.3#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-5#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-5#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-5#WTRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060EDC-5#WTRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-1.2#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-1.2#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-1.5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-1.5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-1.8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-1.8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-15#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-15#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-2.5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-2.5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-3.3#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-3.3#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ETS8-5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-1.2#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-1.2#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-1.5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-1.5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-1.8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-1.8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-15#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-15#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-2.5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-2.5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-3.3#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-3.3#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060HTS8-5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC#WTRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC#WTRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-1.2#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-1.2#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-1.5#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-1.5#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-1.8#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-1.8#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-15#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-15#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-2.5#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-2.5#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-3.3#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-3.3#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-5#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-5#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-5#WTRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060IDC-5#WTRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-1.2#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-1.2#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-1.5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-1.5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-1.8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-1.8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-15#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-15#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-2.5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-2.5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-3.3#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-3.3#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060ITS8-5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-1.2#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-1.2#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-1.5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-1.5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-1.8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-1.8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-15#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-15#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-2.5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-2.5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-3.3#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-3.3#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-5#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3060MPTS8-5#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Current Sense Amplifiers 1
LTC4150	PRODUCTION	Coulomb Counter/Battery Gas Gauge
LDO Plus 1
LT3050	RECOMMENDED FOR NEW DESIGNS	100mA, Linear Regulator with Precision Current Limit and Diagnostic Outputs
Pushbutton Controllers 1
LTC2955	RECOMMENDED FOR NEW DESIGNS	Pushbutton On/Off Controller with Automatic Turn-On
Surge Stopper, Overvoltage, and Overcurrent Protection 1
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LT3060
LT3060-1.2
LT3060-1.5
LT3060-1.8
LT3060-2.5
LT3060-3
LT3060-3.3
LT3060-5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LT3060EDC Demo Board | Low Noise, Low Dropout, Micropower Linear Regulator, 2.1V ≤ VIN ≤ 45V, VOUT = 1.2V/1.5V/1.8V/2.0V/2.5V/3.3V/5V at 100mA

Buy Now View Details

Product Details

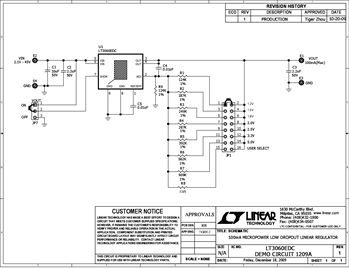

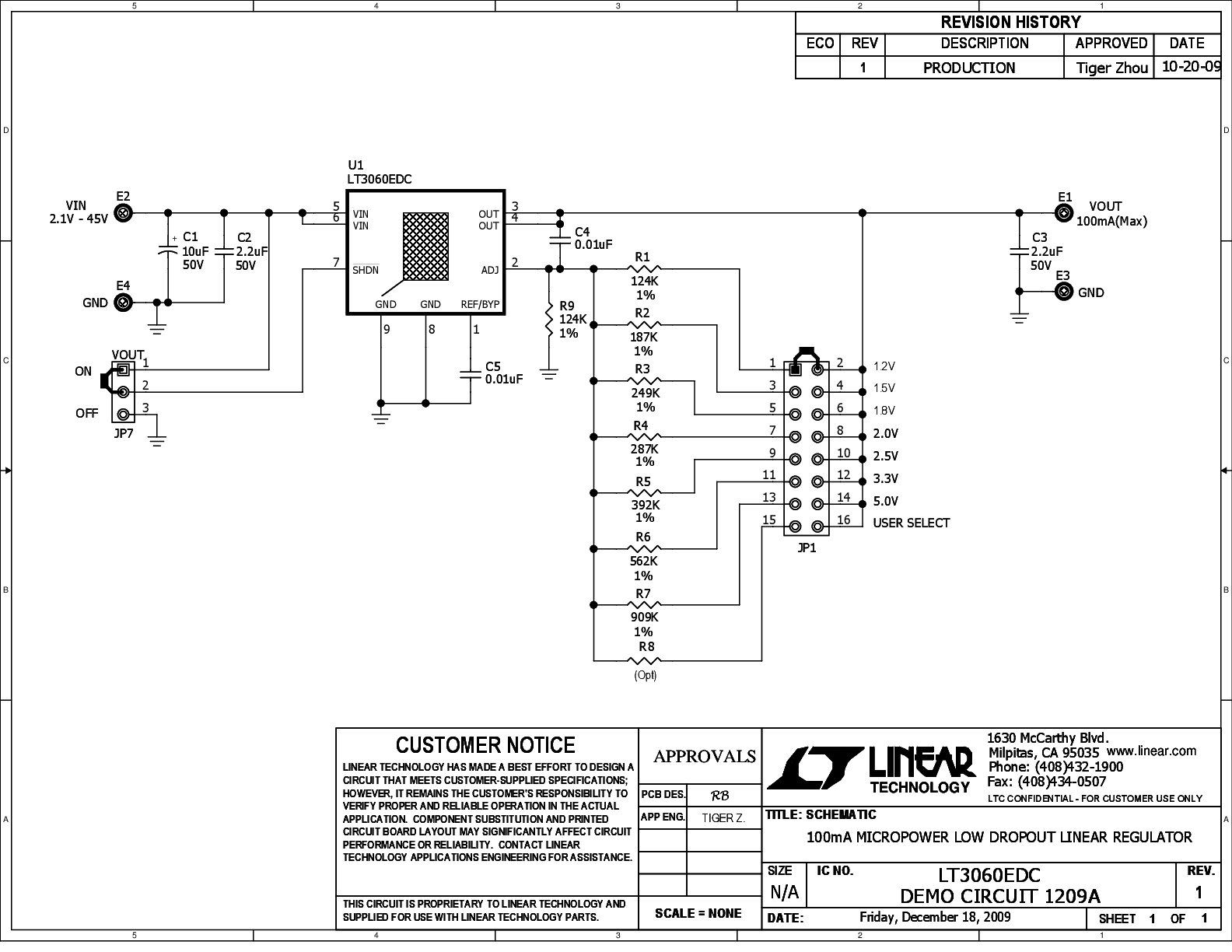

Demonstration circuit 1209A is a Micropower, low dropout linear regulator featuring LT3060, which comes in an 8-lead TSOT23 or 2mm × 2mm DFN package. The DC1209A has an input voltage range from 2.1V to 45V, and is capable of delivering up to 100mA output current. The jumper-selectable output voltage can be set to 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 3.3V, 5V or a user-defined value. An external capacitor at REF/BYP pin provides low noise reference and programmable output soft-start functionality. The LT3060’s quiescent current is merely 40µA and provides fast transient response with a minimum 2.2µF output capacitor.
