IDX-7505
OBSOLETE PRODUCT
Part Details
Motor types
- 0.5 to 5.0A RMS / 7A peak
- 12 to 75V DC nominal supply voltage
Highlights
- Remote controlled diagnostics and parameterization (RS485)
- Reference move and turn CW / CCW via RS485
- Stand-alone operation, adjusted via RS485
- Fully protected drive
- Digital selection of motor current and standby current
- Local reference move using sensorless StallGuard™ feature or reference switch
- All setup parameters are stored in internal EEPROM, no bus system required in end application
- Micro step resolution can be changed to get high accuracy or high speed with the possibility to combine both
- Different chopper modes allow best adaptation to application / motor

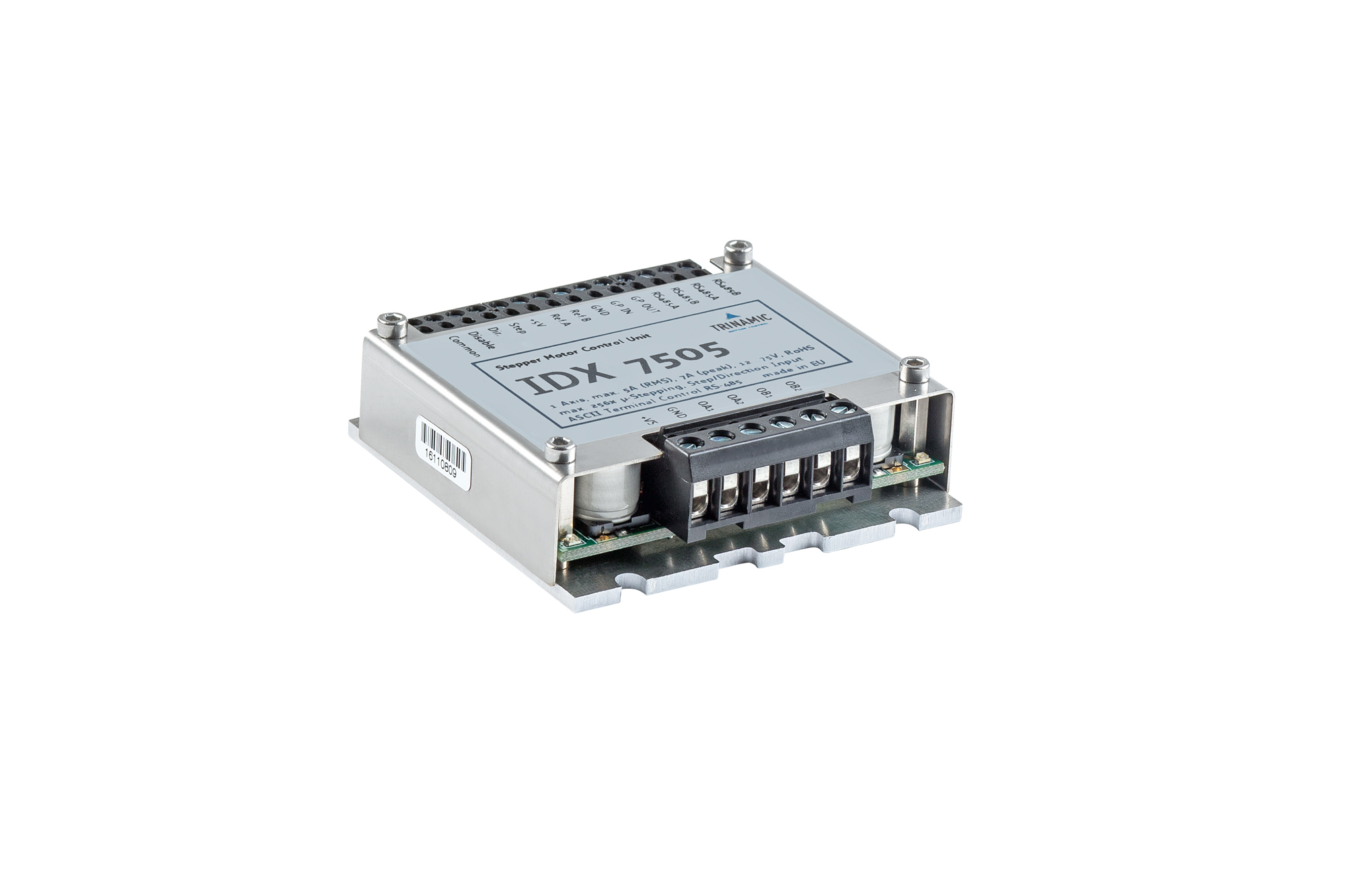

The IDX 7505 is a small and rugged step-/ direction stepper motor driver system with a supply voltage of up to 75V and up to 5A RMS motor coil current. The parameters of the IDX 7505 like motor current and µStep resolution can be changed easily using the RS-485 interface with an ASCII protocol (e.g. with Hyperterminal). Also the firmware of the module can be updated via the serial interface. All settings are stored in an internal EEPROM, so that no bus system is required in the application. The module is fully protected and comes with a stand-alone reference search feature, using the integrated reference switch input or StallGuard™.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
APPLICATIONS
- Step/dir stepper driver for industrial applications
- Robotics
- Remote diagnostics / feedback allows for high-reliability drives
- Centralized motor driver mounted in switchboard
- Decentralized motor driver mounted near motor
