HMC969
Obsolete1 Watt Power Amplifier Chip, 40 - 43.5 GHz
Part Details
- Saturated Output Power:
+31 dBm @ 15% PAE - Output IP 3: +38 dBm
- High Gain: 22 dB
- DC Supply: +6V @ 900 mA
- No External Matching Required
- Die Size: 2.77 x 2.32 x 0.1 mm

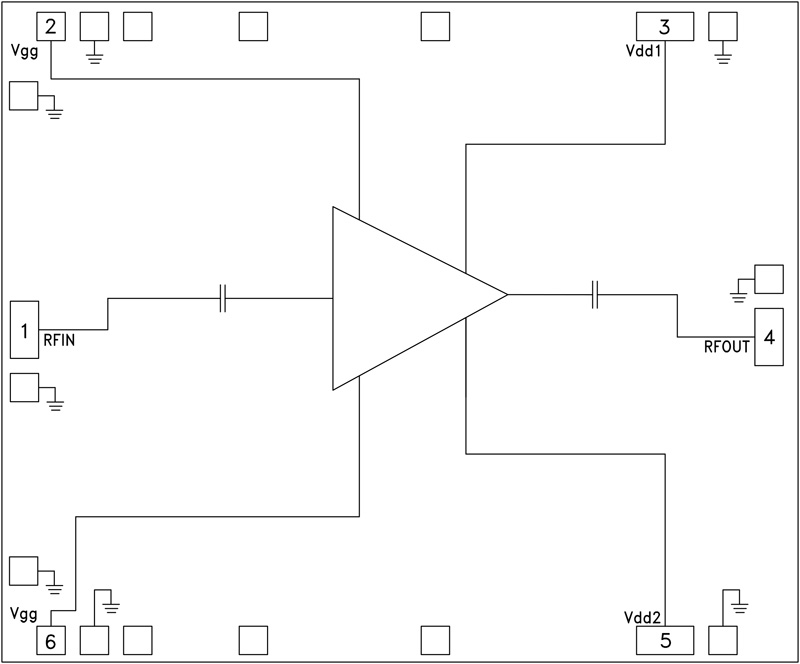

The HMC969 is a 4 stage GaAs pHEMT MMIC 1 Watt Power Amplifier which operates between 40 and 43.5 GHz. The HMC969 provides 22 dB of gain, +31 dBm of saturated output power, and 15% PAE from a +6V supply. With a very good IP 3 of 38 dBm, the HMC969 is ideal for linear applications including military and space as well as point-to-point and point-to-multi-point radios. All data is taken with the chip in a 50 Ohm test fixture connected via (2) 0.025 mm (1 mil) diameter wire bonds of 0.31 mm (12 mil) length.
Applications
- Point-to-Point Radios
- Point-to-Multi-Point Radio
- VSAT & SATCOM
- Military & Space
Documentation
Obsolete Data Sheet 1
Quality Documentation 1
This is the most up-to-date revision of the Data Sheet.
Tools & Simulations
S-Parameter 1
