DS2151Q
T1 Single Chip Transceiver
Part Details
- Complete DS1/ISDN-PR1 transceiver
- Short- and long-haul trunk capability
- Independent send and receive functions
- 32-bit or 128-bit jitter attenuator
- DSX-1 and CXU line build-outs
- D4, ESF, and SLC-96R framing
- Dual onboard elastic buffers connect to backplanes up to 8.192MHz
- Programmable output clocks for Fractional T1
- 8-bit parallel control port can be muxed or nonmuxed
- Extracts/inserts robbed-bit signals
- Detects/generates yellow and blue alarms
- Onboard FDL support circuitry
- Generates/detects CSU loop codes
- ANSI one's density monitor/enforcer
- Path and line error counters, including BPV, CV, CRC6, and framing bit errors
- Pin-compatible with DS2153Q
- Operating ranges:
- 5.0V
- 0°C to +70°C (DS2151Q)
- -40°C to +85°C (DS2151QN)

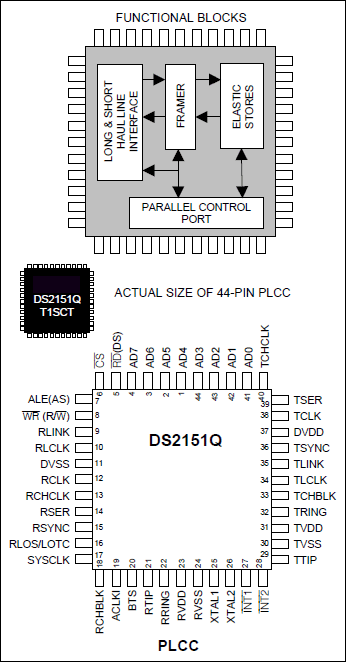

The DS2151Q is a first-generation line interface unit for T1 lines that that pioneered single-chip integration of multiple functions, combining long- and short-haul and framing functionality with dual elastic stores and an 8-bit parallel control port. It continues to provide an adaptable interface unit at both network and central office interfaces.
The DS2151Q meets T1 specifications, including ANSI T1 403-199X, AT&T TR 6241 (12-90), and ITU G.703, G.704 G.706, G.823, and 1.431. Under processor control, the user can access the 64 8-bit internal registers to configure the DS2152 to suit the application.
Documentation
Data Sheet 1
Reliability Data 1
Application Note 1
Design Note 3
This is the most up-to-date revision of the Data Sheet.
