DS1867
Dual Digital Potentiometer with EEPROM
Part Details
- Nonvolatile version of the DS1267
- Two 256-position digital potentiometers
- Wipers digitally set and read through serial port
- EEPROM maintains settings in the absence of power
- Resistors can be connected in series for higher total resistance
- Ultra low-power consumption, quiet, pumpless design
- Three-wire serial control interface
- Operating ranges:
- Single +5V or ±5V supplies
- -40°C to +85°C

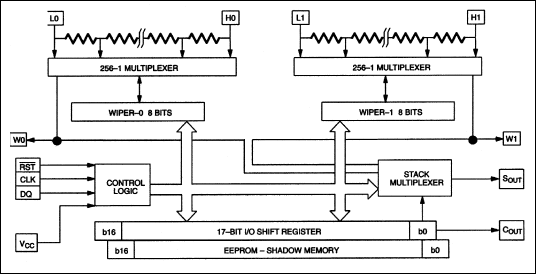

The DS1867 has two 256-position potentiometers, with wiper positions each set as 8-bit values and stored on-chip in nonvolatile memory. Communication takes place through a 3-wire serial port interface that drives an internal control logic unit. Multiple DS1867s can be linked or daisy-chained for control by a single processor.
Digital potentiometers improve upon mechanical devices with processor control and programmability, greater reliability and accuracy, and packaging options that facilitate automatic assembly. This digital potentiometer offers extremely low-power use and reliable, accurate performance throughout the industrial temperature range.
The DS1867 can be used to control the incoming signal levels in modems or for level adjustment and control of RF and audio signals in cellular telephones. Digital potentiometers are also used for battery charging and control circuitry, tuning and calibration, offset trimming of operational amplifiers, gain control, and power supply regulation.
