ADH451S
RECOMMENDED FOR NEW DESIGNSAerospace, GaAs, PHEMT, MMIC, Medium Power Amplifier, 5 GHz to 20 GHz (Die), 5 GHz to 18 GHz (LH5 Pkg).
- Part Models
- 2
- 1ku List Price
- Starting From $524.00
Part Details
ADH451S (LH5 Package)
- Gain: 19 dB @ 5 GHz
- P1dB Output Power: + 19 dBm (5 GHz – 18 GHz)
- Output IP3:
- +30 dBm (5 GHz – 13 GHz)
- +28 dBm (13 GHz – 18 GHz)
- 0.035 dB/°C Maximum Gain Variation Over Temperature
- Single Supply: +5V @ 132 mA
- 50 Ohm Matched Input/Output
- 12-Lead Hermetic SMT Package, 25 mm2
- Screened in accordance with MIL-PRF-38535, Class Level S

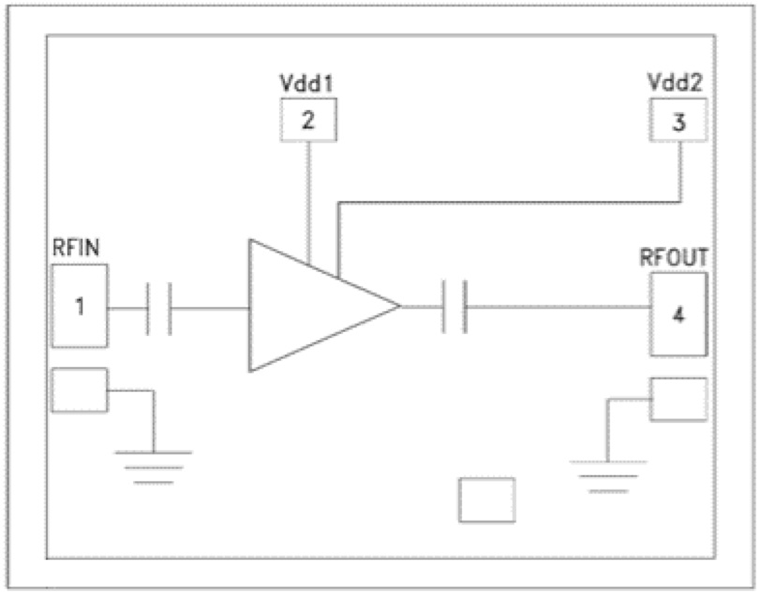

ADH451S (Die)
- Gain: 22 dB
- Saturated Output Power: + 22 dBm @ 24% PAE
- Output IP3: +30 dBm
- Single Supply: +5V @ 127 mA
- 50 Ohm Matched Input/Output
- Small Die Size: 1.29 mm X 1.058 mm X 0.1 mm
- Screened in accordance with MIL-PRF-38534, Class K
ADH451S (LH5 Package)
The ADH451S is a general-purpose GaAs PHEMT MMIC Medium Power Amplifier which operates between 5 GHz and 18 GHz in a 12-Lead hermetic surface mount package. The amplifier provides 19 dB of gain, +20 dBm of saturated power from a single +5V supply. Consistent gain and output power across the operating band make it possible to use a common driver / LO amplifier approach in multiple radio bands.
ADH451S (Die)
The ADH451S is a general-purpose GaAs PHEMT MMIC Medium Power Amplifier which operates between 5 GHz and 20GHz. The amplifier provides 22 dB of gain, +22 dBm of saturated power at 24% PAE from a +5 V supply. Consistent gain and output power across the operating band make it possible to use a common driver/LO amplifier approach in multiple radio bands. The ADH451S amplifier can easily be integrated into Multi-Chip-Modules (MCMs) due to its small size, single supply operation and DC blocked I/Os.
Applications
- Communications
- Instrumentation
- Sensors
- LO Driver
- Military & Space
Documentation
Data Sheet 1
Application Note 1
Controlled Drawings 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADH451-701LH5 | 12-Lead LCC (5.08mmm x 5.08mm) | ||
| HMC6293 | CHIPS OR DIE |
